Eureka Wireless Module
Integration User Manual
2023-11-06
HVIN: MT-EUREKA
1 Features
● IEEE 802.11b/g/n WLAN radio
● Bluetooth 5.2 radio
● 2 x ARM Cortex-M microcontroller for user application
● USB-C port for data transfer, power supply and debugging
● 8 MB NOR Flash
● Fully integrated power regulation with wide unregulated operating range
● Air quality sensor (temperature/humidity/pressure/VOC) (optional)
● Accelerometer (optional)
● Mono Class D amplifier for driving an external speaker (optional)

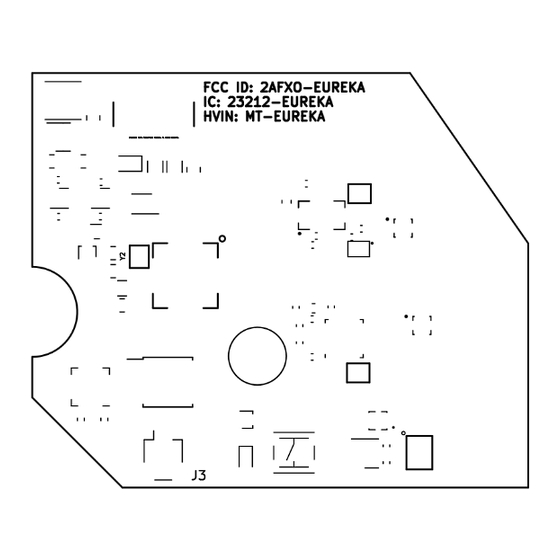

2 Pin description
Connector J1
Pin number
Name
1
GND
2
VBAT
3
TX
4
RX
www.minut.com
Description
Module Ground
Module Power Input
Module Transmit Data (Application specific)
Module Receive Data (Application specific)
Minut, Inc.
440 N Barranca Ave #8080, Covina, CA 91723
hello@minut.com
Advertisement
Summary of Contents for Minut MT-EUREKA
- Page 1 Eureka Wireless Module Integration User Manual 2023-11-06 HVIN: MT-EUREKA 1 Features ● IEEE 802.11b/g/n WLAN radio ● Bluetooth 5.2 radio ● 2 x ARM Cortex-M microcontroller for user application ● USB-C port for data transfer, power supply and debugging ●...
-
Page 2: Specifications
This is the full tunable range as specified in the WLAN radio datasheet. It is further restricted based on country settings, such that the actual range in the US and Canada is 2401-2473 MHz (channels 1-11). Minut, Inc. 440 N Barranca Ave #8080, Covina, CA 91723... - Page 3 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesirable operation. Any changes or modifications not expressly approved by Minut, Inc. could void the user’s authority to operate the equipment. List of applicable FCC Rules 47 CFR Part 15, Subpart C 15.203...
- Page 4 Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Minut, Inc. 440 N Barranca Ave #8080, Covina, CA 91723 hello@minut.com...
- Page 5 Consult the dealer or an experienced radio/TV technician for help. ● 4.2 Canada - ISED HVIN: MT-EUREKA This radio transmitter (IC: 23212-EUREKA) has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated.
- Page 6 Sciences et Développement économique Canada, précédé du mot « contient », ou d’une formulation similaire allant dans le même sens et qui va comme suit : “Contient IC : 23212-EUREKA” Minut, Inc. 440 N Barranca Ave #8080, Covina, CA 91723 hello@minut.com...
