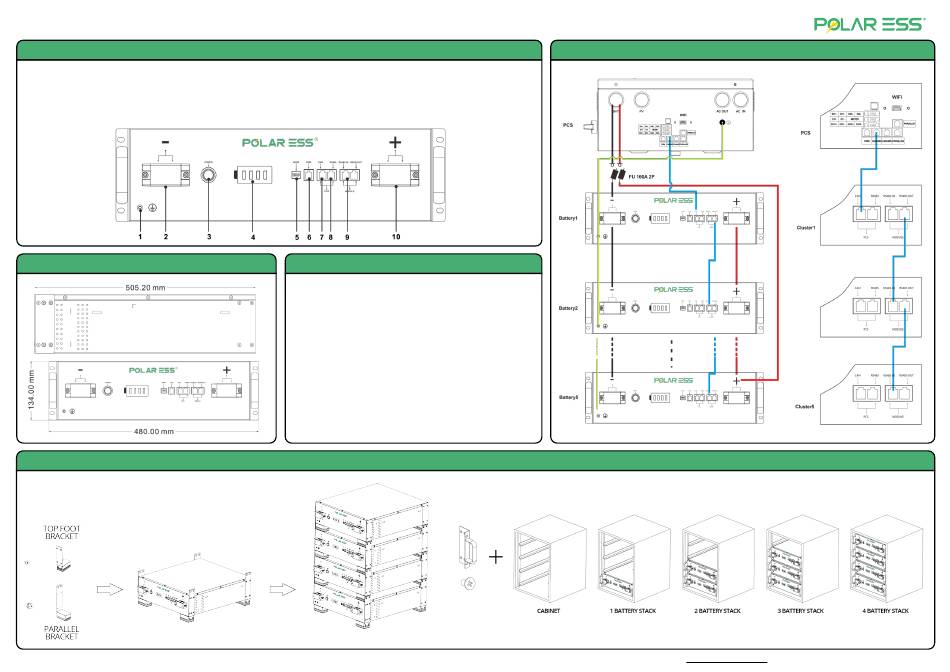

POLAR ESS ALPS BA5.2 Quick Start Manual

ALPS BA5.2 lithium battery: a quick start guide
Components
1. Earth point 6. RS232 6P
2. Battery pack (negative terminal) 7. Inverter CAN 8P
3. Battery on/off switch 8. Inverter RS485 8P
4. Charge indicator 9. Battery RS485 8P
5. DIP switch 10. Battery pack (positive terminal)
Dimensions
Note: Handles are optional
Install
1. Install with bracket:
Note: Foot support accessories are optional
© Polar ESS 2024. All rights reserved.
1. Battery on: Press and 2. Battery off: Press
hold the battery switch and hold the battery
for 1s. The buzzer will switch for 3s. The
sound for 2s and the buzzer will sound for
battery switch LED will 1s and the battery
illuminate. switch LED will go off.
Environment
Temperature Humidity
0 o C - 50 o C 5% ~ 85% installation only
1.
The battery can be installed in a standard 19" cabinet or
rack. Indoor installation requires adequate ventilation
all around the system without obstacles. Handles are
required for rack mount option.
2.
The battery should be installed by a qualified electrician.
Any future maintenance or updates should also be
completed by a qualified electrician.
3. If the battery seems to be damaged, pack it in its original
container and return it based on the terms laid as per
distributor guidelines.
2.
System overview
Indoor
Install in standard cabinet or rack:
Note: 19" standard cabinet is optional
For full instructions, please visit www.polar-ess.co.uk > Resource Drive > Installation Manuals
