STARFAVOR KA-500 Owner's Manual

Home theater karaoke amplifier system
Hide thumbs
Table of Contents

Advertisement

Quick Links

K A - 5 0 0
Home Theater Karaoke Amplifier System
Receiver Owner' s Manual Version 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KA-500 and is the answer not in the manual?

Questions and answers

Summary of Contents for STARFAVOR KA-500

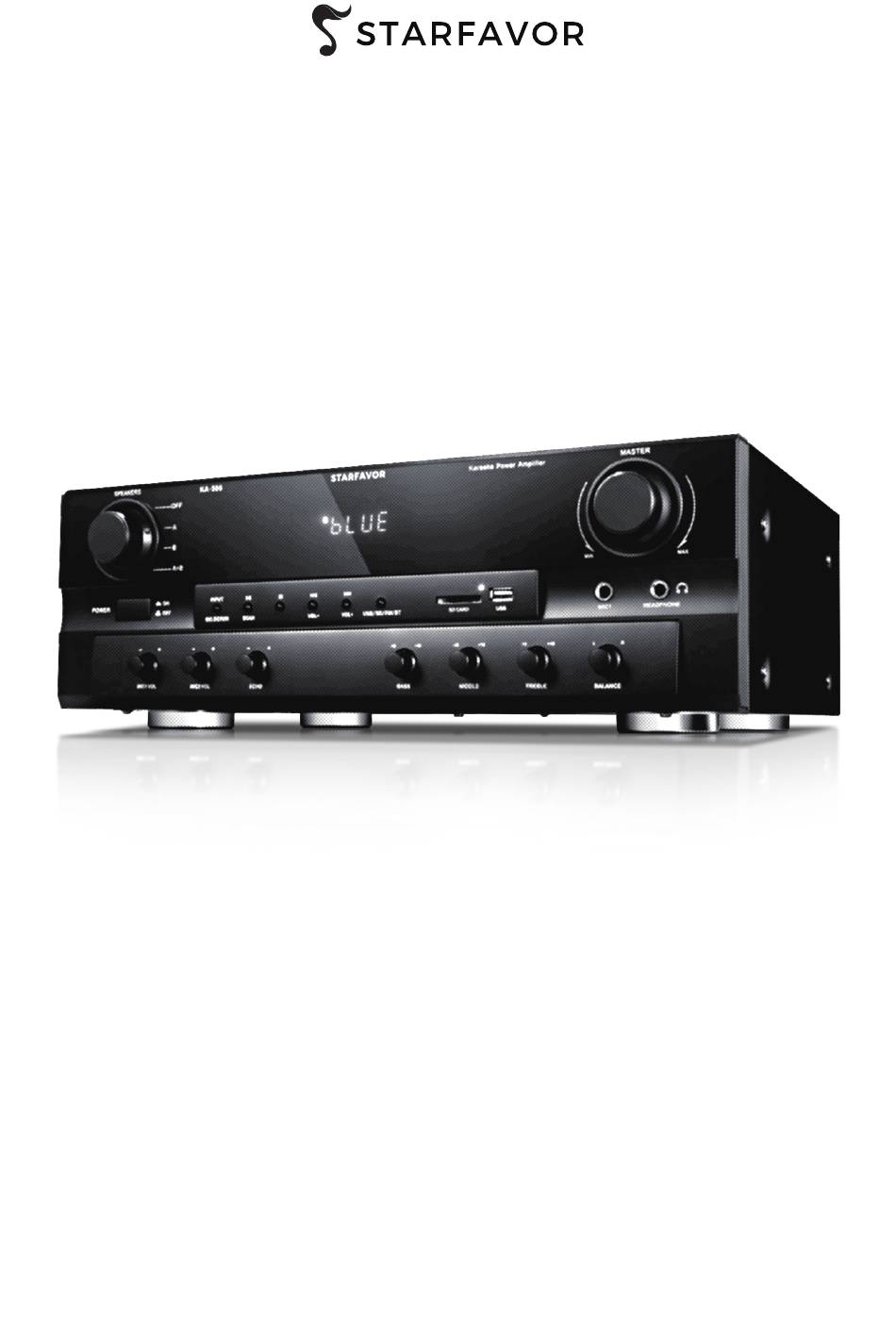

  • Page 1 K A - 5 0 0 Home Theater Karaoke Amplifier System Receiver Owner’ s Manual Version 2...

  • Page 2: Explanation Of Graphical Symbols

    (The above warning is located on the rear of the unit.) Explanation of Graphical Symbols The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’...
  • Page 3 12 .Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13 .Unplug this apparatus during lightning storms or when unused for long periods of time. 14 .Refer all servicing to qualified service personnel.
  • Page 4 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Do Not Open

    Do not open ⸺ * This product contains no user-serviceable parts. Do not attempt to disassemble the internal parts or modify them in any way. Connection ⸺ * Before turning the power of all devices on or off, make sure that all volume levels are set to the minimum.

  • Page 6: Handling And Maintenance

    * Air blowing out of the bass reflex ports is normal, and often occurs when the speaker is handling program material with heavy bass content. * Always turn the power off when the device is not in use. NOTES： STARFAVOR cannot be held responsible for damage caused by improper use or modifications to the device.
  • Page 7 With its sleek design and integrated LED display, the Starfavor KA-500 adds a touch of elegance to your home entertainment setup. Conveniently control the modes, input sources, track information, and folder names with ease.

  • Page 8: Supplied Items

    Elevate your karaoke and home theater experience with the Starfavor KA-500 Home Theater Karaoke Amplifier System / Receiver, where outstanding audio performance meets seamless connectivity and customizable sound settings. Immerse yourself in a world of captivating entertainment, brought to you by Starfavor.

  • Page 9: Panel Layout

    PANEL LAYOUT BLUE MODE MODE 1. SPEAKERS: Select speaker group outputs with options like OFF, Speaker A, Speaker B, and Speaker A+B. Choosing Speaker A routes audio through Speaker A connectors to gro up A, while selecting Speaker B directs it through Speaker B connectors to group B. Enable Speaker A+B to enjoy synchronized playback from both groups.
  • Page 10 11. SD/MMC Card: For connecting SD card or MMC card to playing music. NOTES: KA-500 only support USB Flash Drive, SD card or MMC card format of FAT32 and NTFS. Please format your USB Flash Drive,SD card or MMC card and change it to the format of FAT32 and NTFS if it can not be recognized.
  • Page 11 PHONO SUB 26 27 28 29 23. MIC2: 1/4” TS input for connecting another microphone. Supports connecting two microphones simultaneously. 24. ANTENNA terminals: Used to connect the radio antennas. The FM antenna was included in the box. 25. CD/VCD Input: RCA audio input for connecting to CD/VCD/DVD player or tape deck. 26.
  • Page 12 Please install 2 X AAA size batteries(Not included) first before using Remote Control. 1. CD: Selects the audio input source from CD input. 2. SLEEP: Take control of the sleep state of the KA-500 with the dedicated SLEEP button. This function allows you to manage the power status of the amplifier.

  • Page 13: Connecting Audio Devices

    PLACEMENT You can enjoy the music with STARFAVOR KA-500 Home Theater Karaoke Amplifier System / Receiver in the location as the refer to the following: Connecting Audio devices： BLUE MODE...
  • Page 14 PHONO SUB PHONO SUB IPHONE/IPOD PHONO...

  • Page 16: How To Connect Speaker Cables

    SETUP NOTES： • Connect speakers with a nominal impedance of 4 ohms to 16 ohms. • Before connecting cables, be sure to disconnect the AC power cord (mains lead). • Before connecting the AC power cord (mains lead), make sure that metallic wires of the speaker cables are not touching each other between the SPEAKERS terminals or on the receiver rear panel.
  • Page 17 3. Insert the bare wire. 4. Tighten the terminal. Connect the speakers with a banana plug: 1. Tighten the speaker terminal. 2.Insert the banana plug tightly into the terminal 3. Profile Notes: The sound will be distorted or no bass if misplace the left speaker with right or misplace the poles.

  • Page 18: Blue Mode

    (LCD will display “BLUE” ). The white LED will flash if the BT wireless is disconnected. 3. Select “KA-500” on the BT wireless device display. The white LED will stop flashing if it is connected. 4. Start playback on the BT wireless device.

  • Page 19: Troubleshooting

    Dimensions 430mm X 345mm X 200mm Accessories Owner’ s Manual. Remote control; FM antenna. RCA to 1/8” stereo cable X 1. NOTES： Any specification’ s update will not be amended in this manual TROUBLESHOOTING Symptom Solution No sound or only a very low level of sound is Check that all connecting cables are inserted to heard,no matter which device is selected.
