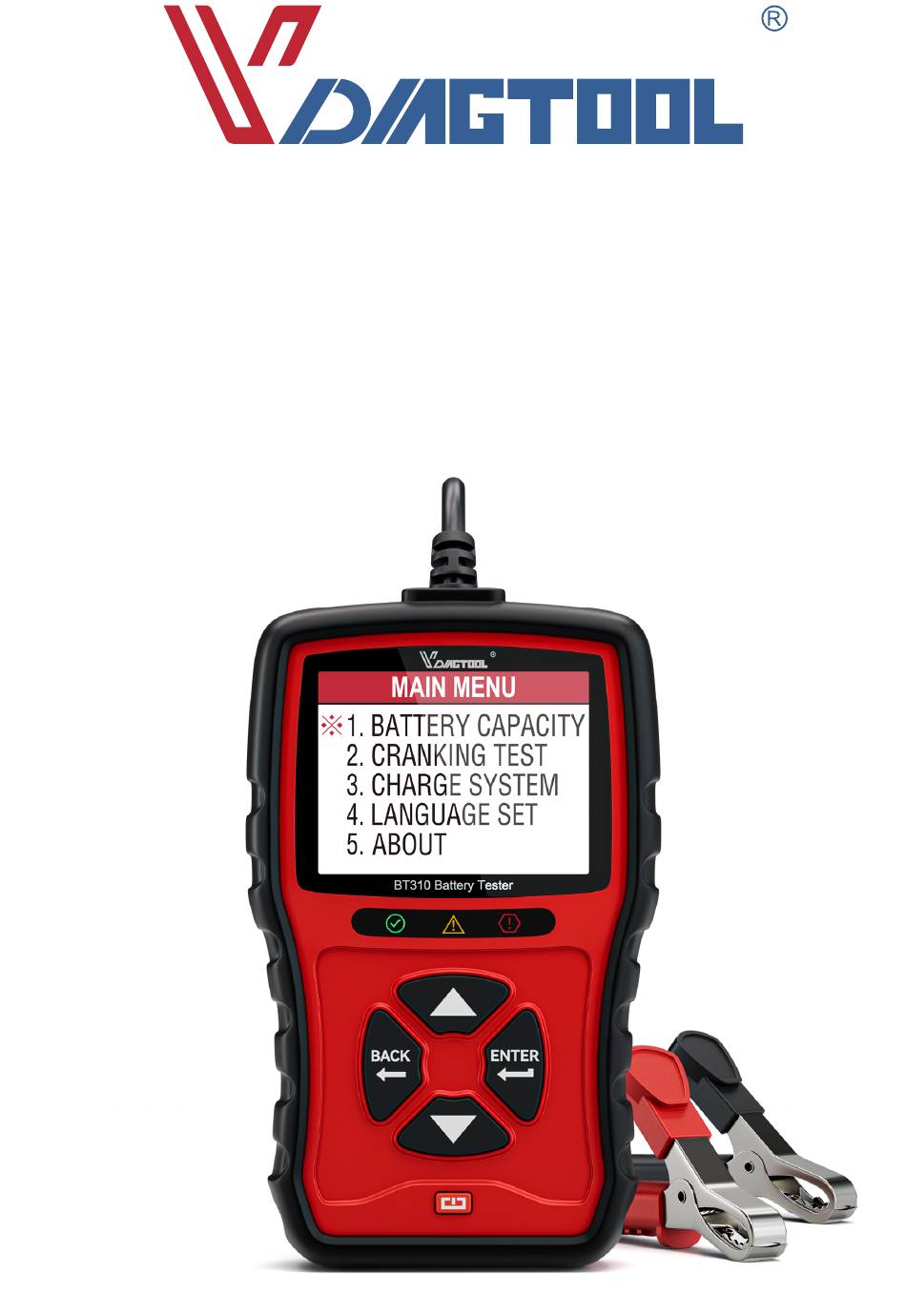

- Page 1 BT310 12V & 24V Battery Analyzer USER MANUAL...
-
Page 2: Table Of Contents
BT310 12V & 24V Battery Analyzer Contents 1.Welcome ..................................2 2.About .................................... 2 3.Packing List ................................. 2 4.Compatibility ................................2 5.Cautions ..................................2 6.Features ..................................3 7.Operation Introduction ............................4 8.Technical Specification ............................13 9.FAQ ....................................14 10.Warranty & Support... -
Page 3: Welcome
BT310 12V & 24V Battery Analyzer 1. Welcome Thank you for purchasing VDIAGTOOL BT310 Battery Tester. Please take time to read and understand this user manual before operation. 2. About Applying advanced conductance testing technology and incorporating reverse polarity protection, the VDIAGTOOL BT310 Battery Tester will provide the technician, professional and DIYer with critical information about 12v and 24v battery health status and identifying battery and charging problem quickly, easily and accurately. -
Page 4: Features
BT310 12V & 24V Battery Analyzer ◆ Using it for 12V/24V battery, working voltage: DC 9V to 36V; ◆ Ensure the battery terminal are clean, grease and dust car result in inaccurate test result; ◆ Check the insulating layer of the clamps to ensure they are in proper condition without damage, exposed wires, or disconnections to avoid electric shock;... -
Page 5: Operation Introduction
BT310 12V & 24V Battery Analyzer Buttons Operation Increase the value / Page up Decrease the value / Page down Back Cancel / Return ENTER Confirm / Enter / Proceed Restart unit / Return under any status Battery good condition light... - Page 6 BT310 12V & 24V Battery Analyzer BATTERY VOLTS Page 1 Black clamp(NEG.) Red clamp(POSI.) contact is bad, contact is bad, please check! please check! Page 2 Choose preferable Battery Voltage and enter the page below, choose “12V” for example, Press “...
- Page 7 BT310 12V & 24V Battery Analyzer 7.2 BATTERY CAPACITY ( For example, for 12V Battery ) Thistesterdeterminesconditionofthebatteryaccordingtotheratedvalue labeledonthebattery. 7.2.1 BeforeTest The engine and all the other accessory load must be OFF in order to have accurate result. Turn on the vehicle headlight for 2-3 minutes till the battery voltage back to the normal values if the battery voltage is just fully charged.
- Page 8 BT310 12V & 24V Battery Analyzer CCA TYPE: CCA: Cold Cranking Amps, specified by SAE & BCI, most frequently used value for starting battery at O' °F(-18C); IEC: Internal Electron technical Commission Standard; EN: European Automobile Industry Association Standard; DIN: German Auto Industry Committee Standard;...
- Page 9 BT310 12V & 24V Battery Analyzer BATTERY CAPACITY 11.89V 780 CCA SOC:37% SOH: 64% Battery Ω : 4.14m Ω RATED: 800 CCA CHARGE & RETEST 7.2.2.6 Reference Table Replace the battery if the LED indicator is Red. Battery State of Health (SOH) and Test Result Reference Table...
- Page 10 BT310 12V & 24V Battery Analyzer 7.3.2.2 Ensure the tester is in the MAIN MENU page below, press “BACK” key till you find pade below or just press restart key fist till you find the MAIN MENU page below and try it.
- Page 11 BT310 12V & 24V Battery Analyzer Reference Table (For 12V System) Cranking Voltage Cranking Ability Action to Battery >10.7V Good No Action 10.2V~10.7V Normal Keep Caution 9.6V~10.2V Replace It Soon <9.6V Very Bad Relpace It Immediately Cranking Test Result Reference Table 7.4.
- Page 12 BT310 12V & 24V Battery Analyzer MAIN MENU BATTERY CAPACITY CRANKING TEST CHARGE SYSTEM LANGUAGE SET ABOUT 7.4.2.3 Press to and select “CHARGING SYSTEM”. MAIN MENU BATTERY CAPACITY CRANKING TEST CHARGE SYSTEM LANGUAGE SET ABOUT 7.4.2.4 Press “ENTER” to confirm and Start the engine according to the instructions on the tester’s screen, you will get test result page below.
- Page 13 BT310 12V & 24V Battery Analyzer RIPPLE TEST 12.98V Page 2 CHARGE SYSTEM RIPPLE: 650mV LOADED: 13.01V UNOLADED: 14.60V CHARGING GOOD Page 3 7.4.2.5 Reference Table Reference Table (For 12V System) Status Battery Voltage Engine Perfirmance >13.5 Normal 13.2~13.5 General...
- Page 14 BT310 12V & 24V Battery Analyzer 7.4.2.6 Note: Tool saves the result of the last test, not all testing data. 7.5 LANGUAGE SET 7.5.1 Steps 7.5.1.1 Ensure that the tester is in the MAIN MENU page below first, press “BACK” key till you...
-
Page 15: Technical Specification
A: Yes, it will keep the last result for data review. ● Q: Could it test 12 volt truck battery? A: Yes, BT310 works on all the 12 volt and 24 volt battery, ranging fron 100-2000CCA. ● Q: How to set the CCA RATED? A: You can set the data near the standard number of your battery. -
Page 16: Warranty & Support
24 our from the day of purchase. For the report from the date of warranty period, VDIAGTOOL will, according to the technical support and analysis and confirmation, either repair or replace the defective part or product. - Page 17 BT310 12V & 24V Battery Analyzer Facebook Page: https://www.facebook.com/profile.php?id=61550760872613 Facebook User Group: https://www.facebook.com/groups/1278852129665315 Instagram: https://www.instagram.com/vdiagtool_official Twitter: https://twitter.com/VdiagTool TikTok: https://www.tiktok.com/@vdiagtool_official YouTube: https://www.youtube.com/@VdiagTool12 Reddit: https://www.reddit.com/r/vdiagtool/ Invent with us, test products before they hit market, help us make better products for everyone: Test our new products before they hit market and help us make better products.
- Page 18 SHENZHEN CHUANG XIN HONG TECHNOLOGY Co., Ltd. Address: Room 801, Block A, Zaoan Business Building, Shiling Industrial Zone, Xinwei Village, Xinwei Community, Xili Street, Nanshan District,Shenzhen, Guangdong. Phone: +86-0755-86266490 E-mail: Vdiagtool2@outlook.com Website: www. vdiagtool.com...
