Hanover BY520FH Assembly Instruction

ASSEMBLY INSTRUCTION FOR
Caution: Please read instructions thoroughly before unpacking assembly parts. Sharp, exposed staple tips can
cause injury, therefore, for your protection, please remove any exposed staples used in packing.
1. We recommend that you should assemble this product with the assistance of another person; this will make
assembly easier, and will help to eliminate damage the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton
during shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble
your newly purchased product correctly and efficiently.
PART LIST
NO. PART DESC.
A HEADBOARD
HB - LEG (L / R)
B
C HB - STRETCHER
D HB - STRETCHER X

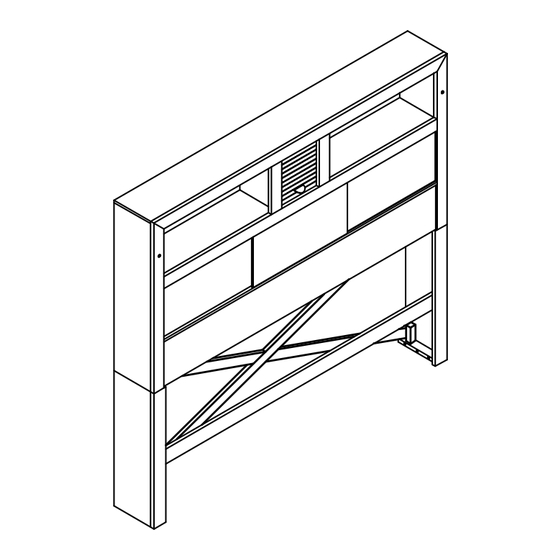

COMPLETED HEADBOARD
FULL MUSIC BED
BY520FH / BY520FF / BY520TFR
BY720FH / BY720FF / BY720TFR
PART CODE QTY
BY520FH
1 pc
BY720FH
PBY520HBLEG
2 pcs
PBY720HBLEG
PBY520FHSTR
1 pc
PBY720FHSTR
BY520FH
1 pc
BY720FH

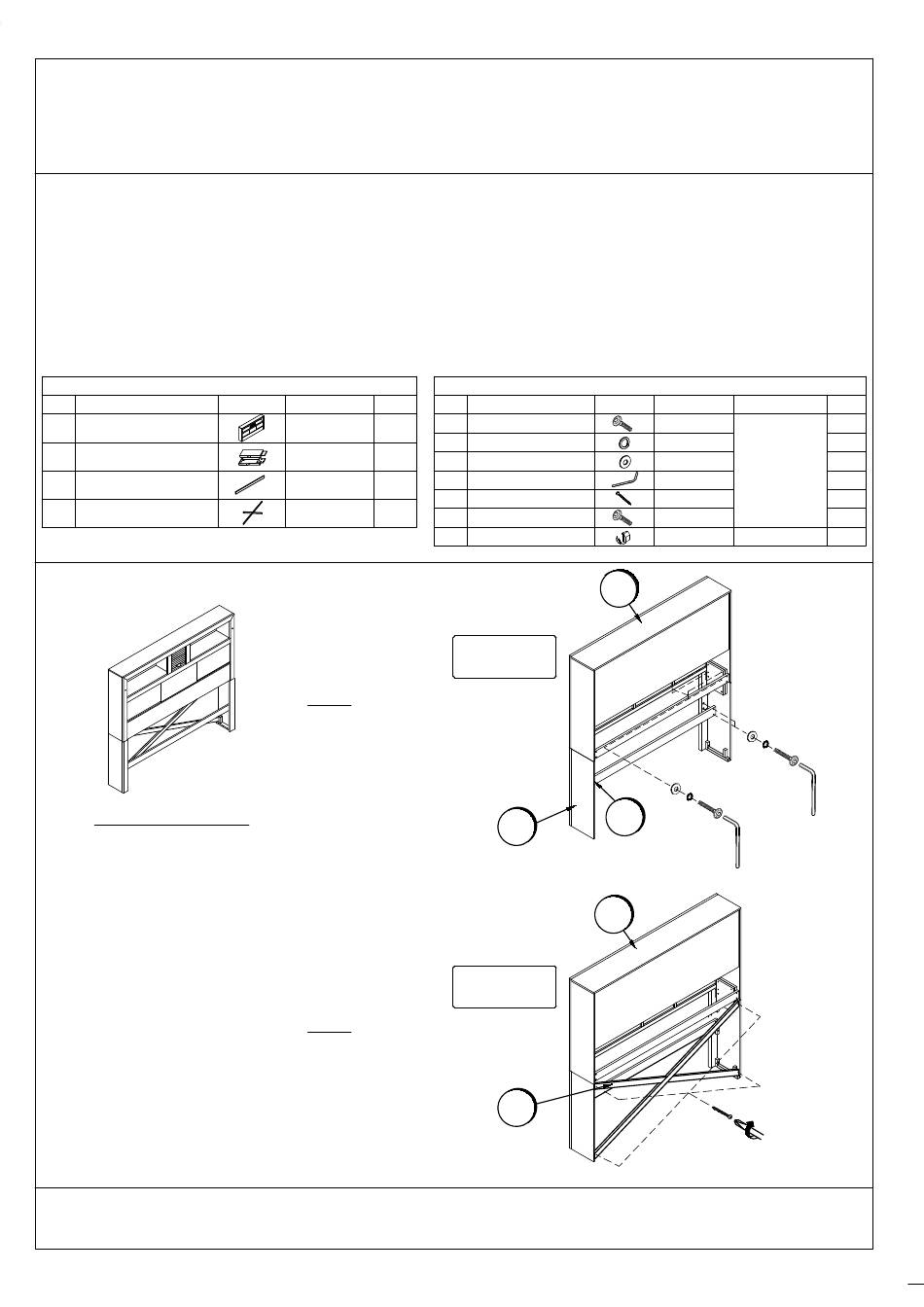

STEP 1 : Assembly the Headboard
First attached the Headboard Leg L/R (B)
to the Music Headboard (A) using Allen Key
M4 (4) to tight Flat Washer (3), Spring Washer (2)
and Allen Bolt (1). After that attached
Headboard Stretcher (C) to Headboard Leg L/R (B).
Using Allen Key M4 (4) to tight Flat Washer (3),
Spring Washer (2) and Allen Bolt (6).
STEP 2 : Assembly the Back Support
First attached the Back Support (D)
to the Music Headboard (A) using Screw Driver
to tight Panhead Screw (5).
MADE IN MALAYSIA
HARDWARE LIST
NO.
HARDWARE DESC. PART
1 ALLEN BOLT
2 SPRING WASHER
3 FLAT WASHER
4 ALLEN KEY
5 PANHEAD
6 ALLEN BOLT
7 ADAPTER
A
BACK VIEW
B
A
BACK VIEW
D
SIZE CODE
M6 x 35mm
M8
M8 x 18mm
PBY520KBHW
M4
M4 x 30mm
M6 x 30mm
3
2
6
2 3
1
C
4
5
PAGE 1 OF 2
QTY
8 pcs
12 pcs
12 pcs
1 pc
4 pcs
4 pcs
1 pc
4
