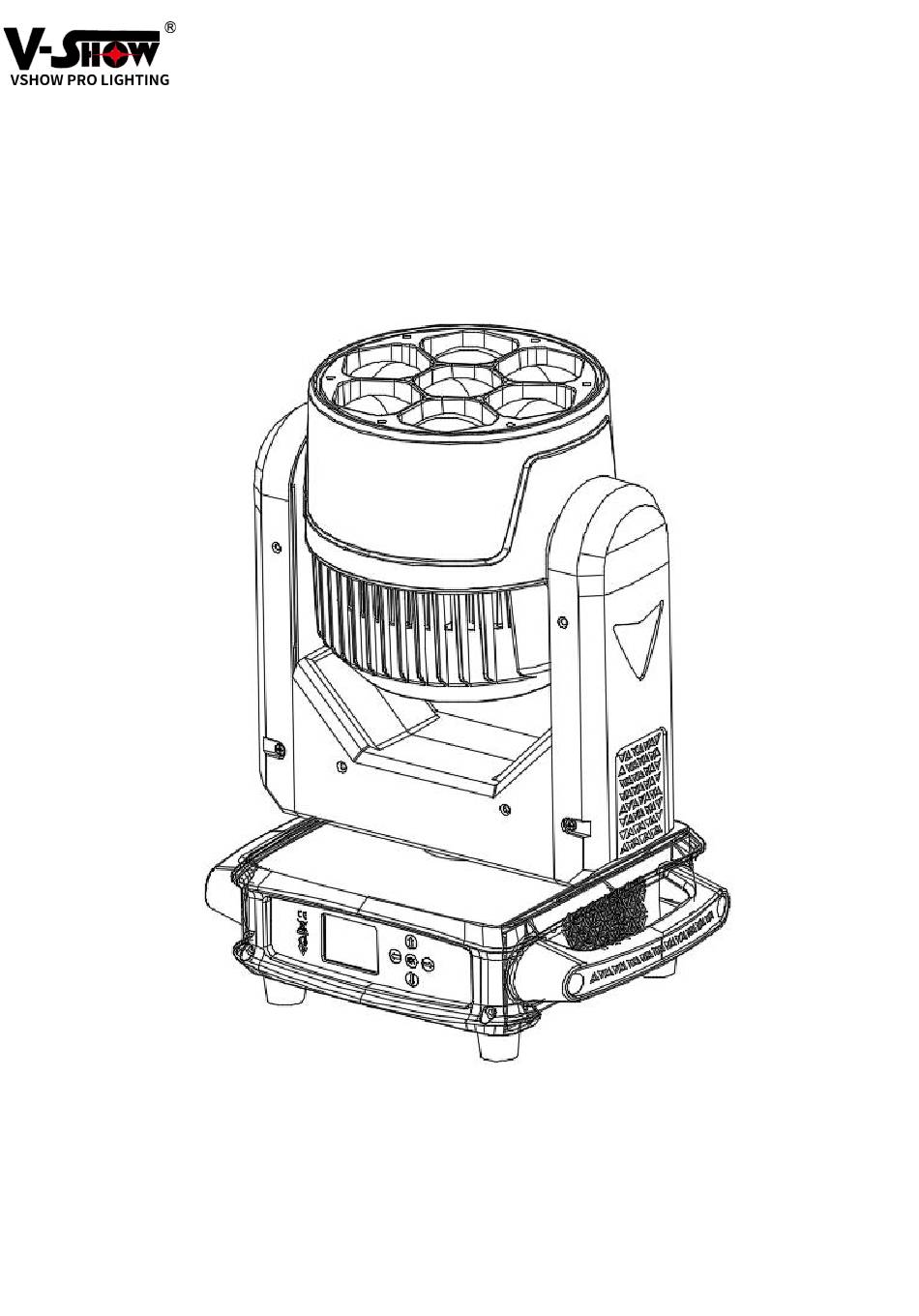

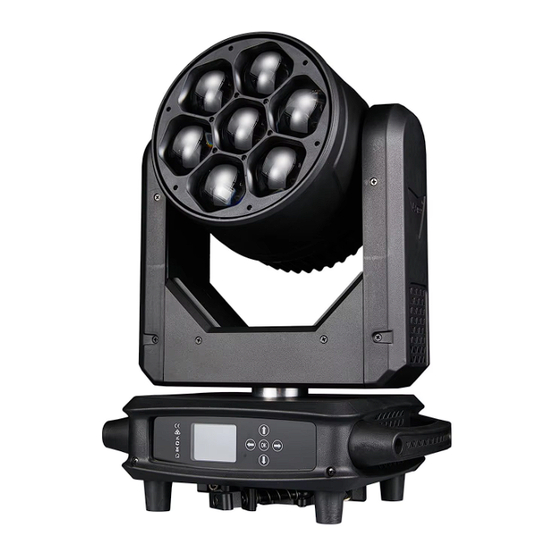

  • Page 1 R740L...
  • Page 2 User manual 1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.

  • Page 3: Installations

    Disconnect mains power before fuse/lamp replacement or servicing. Replace fuse/lamp only with the same type. In the event of serious operating problem, stop using the unit immediately. Never turn on and off the unit time after time. The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
  • Page 4 Be sure to use and install the supplied safety rope to ensure safety and prevent accidental damage and/or injury in case the fixture is damaged Installation point: Overhead installation requires a wealth of experience, including calculation of working load limits, in-depth understanding of the installation materials used, and regular safety inspections of all installation materials and fixtures.

  • Page 5: Dmx-512 Control Connections

    3. DMX-512 control connections Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving heads be connected together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors.

  • Page 6: Fixture Size

    Channel UNIT1 UNIT2 UNIT3 UNIT4 MODE ADDERSS ADDERSS ADDERSS ADDERSS 23CH 35CH 51CH 5.Fixture size 6.Illuminance chart:...
  • Page 7 7. LED technical parameters Input Voltage: 100-240V, 50/60Hz Output Voltage: V1:36V(LED driver+ main board), Power consumption: 300W Power supply: 350W Single LED power: 40W Light source: 7x40W RGBW 4IN LED Beam angle: 4-60° Adjustable color temperature DMX Channel: 23/35/51CH Operate mode: DMX512, AUTO master/slave, Voice control，RDM Electronic dimmer:0～100% linear Linear CTO color temperature adjustment: 2500-8000K Four dimming curve functions...
  • Page 8 8.Menu Actions 8.1:Home interface menu display First Description explain interface Button up and down: Change the address code of this light, for example, if the channel value is 23CH, then the address code of this light is 1, and the address address 001 - 512 code of the next light is 24;...
  • Page 9 direction of gravity Setup Setup Enter the settings interface 8.3:Settings interface menu Main Menu Secondary menu tertiary menu/parameters Address 001 - 512 Run mode DMX/sound/auto1/auto2 Channel 23CH/35CH/51CH Pan def Pos Tilt def Pos Invert pan on/off Invert Tilt on/off Swap pan/tilt on/off System settings Fast dimming...

  • Page 10: Dmx Value

    9.DMX512 23CH function DMX value description 0-255 X rotate X fine 0-255 X-axis fine adjustment 0-255 Y rotate Y fine 0-255 Y-axis fine adjustment XY speed 0-255 Fast-slow zoom 0-255 Angle From large to small 0-127 0-60 degree 128-188 Antiwise fast-slow rotating 189-193 Stop...
  • Page 11 effects Speed 128-255 Reverse from slow-fast Dark-bright Background R 0-255 Dark-bright Background G 0-255 Dark-bright Background B 0-255 Background Dark-bright 0-255 No function 0-79 Curve 1 (5s) 80-99 Curve 2 (5s) 100-119 Curve 3 (5s) 120-139 Curve 4 (5s) 140-159 reset Slow dimming mode (5s) 160-179...
  • Page 12 208-212 213-225 Random strobe in low speed 226-238 Random strobe in middle speed 239-251 Random strobe in high speed 252-255 dimmer 0-255 Linear dimmer from dark-bright Dimmer Fine 0-255 Dimmer fine 0-255 0-255 Pan fine X fine 0-255 tilt 0-255 Tilt fine Y fine function...
  • Page 13 Background 0-255 Background 0-100% dimmer dimmer Pattern 0-255 Pattern change control Transition Pattern angle 0-255 Pattern translation adjustment Prospect strobe 0-255 Prospect strobe（with 11 chs） Background 0-255 Background strobe（with 11 chs） strobe Background 0-255 Background selection selection 51CH DMX value description function 0-255...
  • Page 14 B dimmer 0-255 W dimmer 0-255 0-255 Linear CT control Wash 0-255 Static effect 0-255 5 no. One effect Dynamic effect 0-255 5 no. One effect Forward fast-slow 0-127 Dynamic effect speed Reverse slow-fast 128-255 Dark-bright Background R 0-255 Dark-bright Background G 0-255 Dark-bright...

  • Page 15: Troubleshooting

    9.Trouble shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: The unit does not work, no light and the fan does not work Check the connection of power and main fuse. Measure the mains voltage on the main connector.
