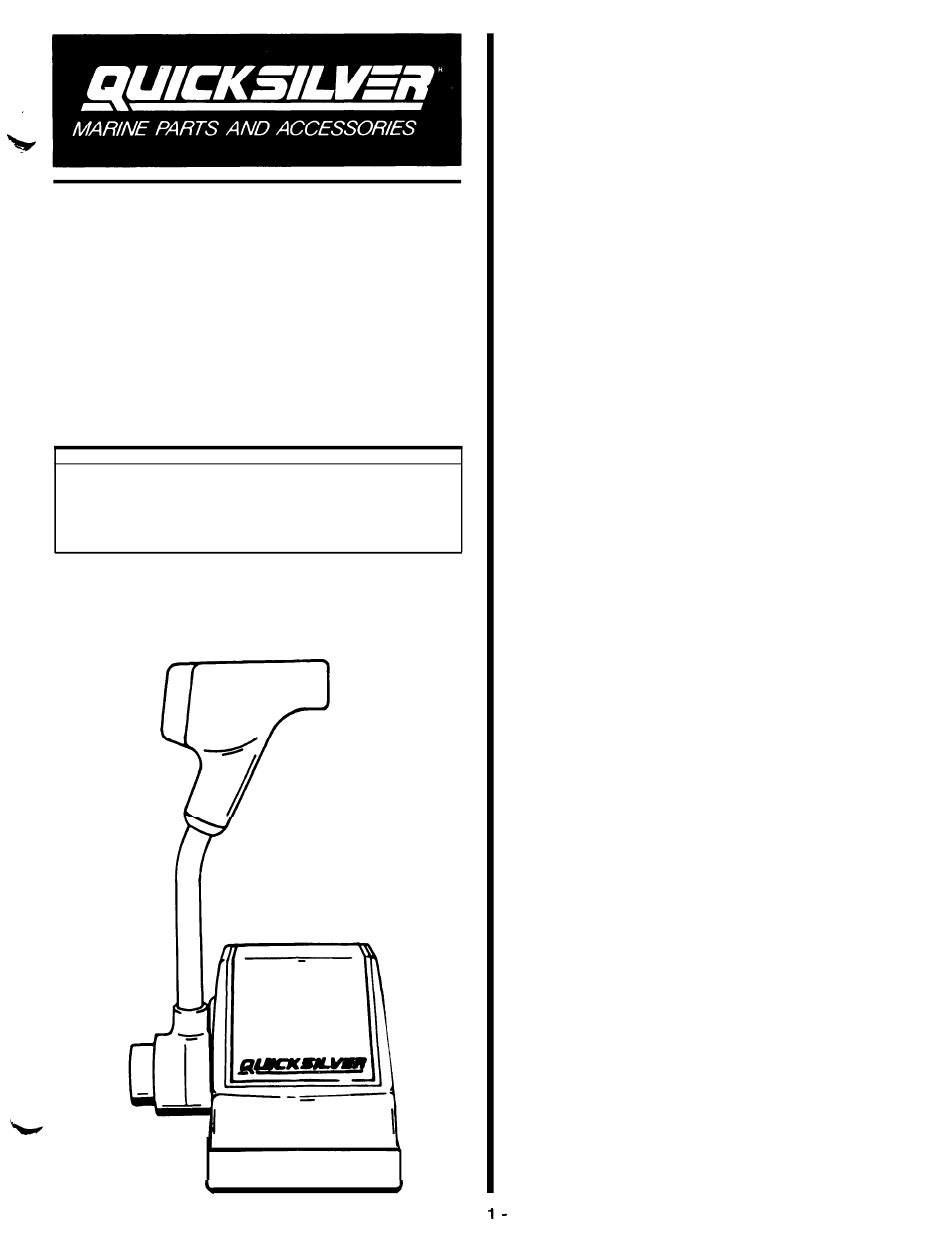

88688A26
SINGLE HANDLE
TRIM CONTROL
INSTALLATION,
OPERATION AND
MAINTENANCE
INSTRUCTIONS
NOTICE to INSTALLER
After Completing Installation, These Instruc-
tions Should Be Placed with the Product For
the Owner' s Future Use.
These installation instructions provide complete in-
formation for installing the remote control. Please read
them carefully and thoroughly before starting installa-
tion.
Printed in U.S.A.
Index
Notice to Installer/Owner ....................... . 2
Maintenance and Replacement Parts ............ . 2
Selecting Remote Control Cables ................ . 2
Introduction ................................... . 3
Installation ......................................3
Shift Cable ...................................4
Throttle Cable ............................... . 4
Throttle Cable ................................ 5
Control Module Linkage ..................... . 6
Control Handle .............................. . 6
and Above) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shift Cable ...................................7
Throttle Cable ............................... . 7
(250 hp Outboard and Above) ................ . 8
Shift Cable .................................. . 8
Throttle Cable ............................... . 8
Required Mounting Clearances . . . . . . . . . . . . . . . . . . . 9
Locating and Drilling Mounting Area . . . . . . . . . . . . . . 9
Remote Control Mounting . . . . . . . . . . . . . . . . . . . . . . . 9
Trailer Switch Installation ...................... . 10
Connections ......................... . 11
Operation ......................................12
24906
Page
7
90-812628 1-195
Advertisement
Table of Contents
Summary of Contents for Quicksilver 88688A26
-
Page 1: Table Of Contents
Notice to Installer/Owner ......2 Maintenance and Replacement Parts .... . 2 Selecting Remote Control Cables ....2 Introduction ........3 88688A26 Installation ........3 Starboard Side Control Module Cable SINGLE HANDLE Installation (All Models except 250 hp 3.4 Litre Outboard and Above .... -
Page 2: Notice To Installer/Owner
OBSERVE THEM CAREFULLY! Marine Lubricant or equivalent. These “Safety Alerts” alone cannot eliminate the 5. Quicksilver throttle and shift control cables recom- hazards that they signal. Strict compliance to these mended for use in this remote control. special instructions when performing the service, plus “... -
Page 3: Introduction
5. Final Checks and Adjustments Quicksilver throttle and shift control cables are recom- a. Re-check tightness of control handle set screw. mended for use in this remote control. Set screw should be torqued to 60 lb. in. (7 N.m). -
Page 4: Starboard Side Control Module Cable Installation
Starboard Side Control Module Cable Installation (All Models except 250 hp 3.4 Litre Outboard and Above) Before tightening cable fastener locknut, be sure that pin on end of cable fastener is completely thru cable end and shift/throttle lever. A pin, that is partially thru cable and lever, may cause fastener to bend when locknut is tightened. -
Page 5: Starboard Side Control Module Cable Installation
Starboard Side Control Throttle Cable Module Cable Installation (250 hp 3.4 Litre Outboard and Above) Before tightening cable fastener locknut, be sure that pin on end of cable fastener is completely thru cable end and shift/throttle lever. A pin, that is partially thru cable and lever, may cause fastener to bend when locknut is tightened. -
Page 6: Remote Control Alteration For Port Installation
Control Handle Remote Control Alteration for Port Installation Repositioning Control Handle Trim Switch for port control installation. Throttle link and throttle spring must be changed when 1. Pry bezel from handle, pull trim switch out, turn control handle will be positioned on the right side of switch 180”... -
Page 7: Port Side Control Module Cable Installation (All Models Except 250 Hp Outboard And Above)
Port Side Control Throttle Cable Module Cable Installation (All Models except 250 hp Outboard and Above) Before tightening cable fastener locknut, be sure that pin on end of cable fastener is completely thru cable end and shift/throttle lever. A pin, that is partially thru cable and lever, may cause cable fastener to bend when nut is tightened. -
Page 8: Port Side Control Module Cable Installation (250 Hp Outboard And Above)
Port Side Control Throttle Cable Module Cable Installation (250 hp Outboard and Above) The control cables in the starboard side module are installed differently than those in the port side module, therefore, the back cover of each control has been stamped “... -
Page 9: Required Mounting Clearances
Required Mounting Clearance 1. Insert wellnut fasteners into drilled holes with flange against the outer surface. NOTE: It may be helpful to thread a mounting screw (Metric: 1” = 25.4mm) into drilled hole. into fastener when inserting fastener Mounting Screw <-+ Mounting Surface Wellnut 2. -
Page 10: Trailer Switch Installation
6. Install cover on remote control by snapping into Route control cables and wiring harnesses thru place. mounting base, then place remote control into posi- tion on mounting base. Trailer Switch Installation IMPORTANT: Route switch to desired location to ensure adequate wire length and clearance behind mounting area. -
Page 11: Electrical Connections
Outboard Models with Trim Pump Mounted in Boat Electrical Connections Failure to connect neutral start safety switch leads properly could allow engine to start while in gear. If engine starts while in gear, immediate boat movement and a hazard to unseated occupants of boat or persons and property outside of boat may result. -
Page 12: Operation
Operation TRIMMING OPERATION NOTE: The control handle is equipped with a trim Control Handle: Features full gear shift and throttle. switch (used to trim power package “ up” and “ down” Shift into gear with a firm, quick motion. Do not while engine is under power) and a separate trailer ease gears into or out of engagement. - Page 13 Template for Dual and Single Console Controls Dual Control Centerline for Single 3/8” Dia. for Dual Control 3/8” (9.53mm) Dia. for Single Control Outline of Remote Control Cover for Single Control 1/4” (.25” or 6.35mm) Dia. for Single Control 1/4” Dia. for Dual Control Centerline for Dual Control Area (located directly under mounting panel) must be free from obstructions and must allow cables to form a gradual bend when routed toward stern of...
