KA164 2 PORT HDMI SPLITTER V2.0 WITH SCALER

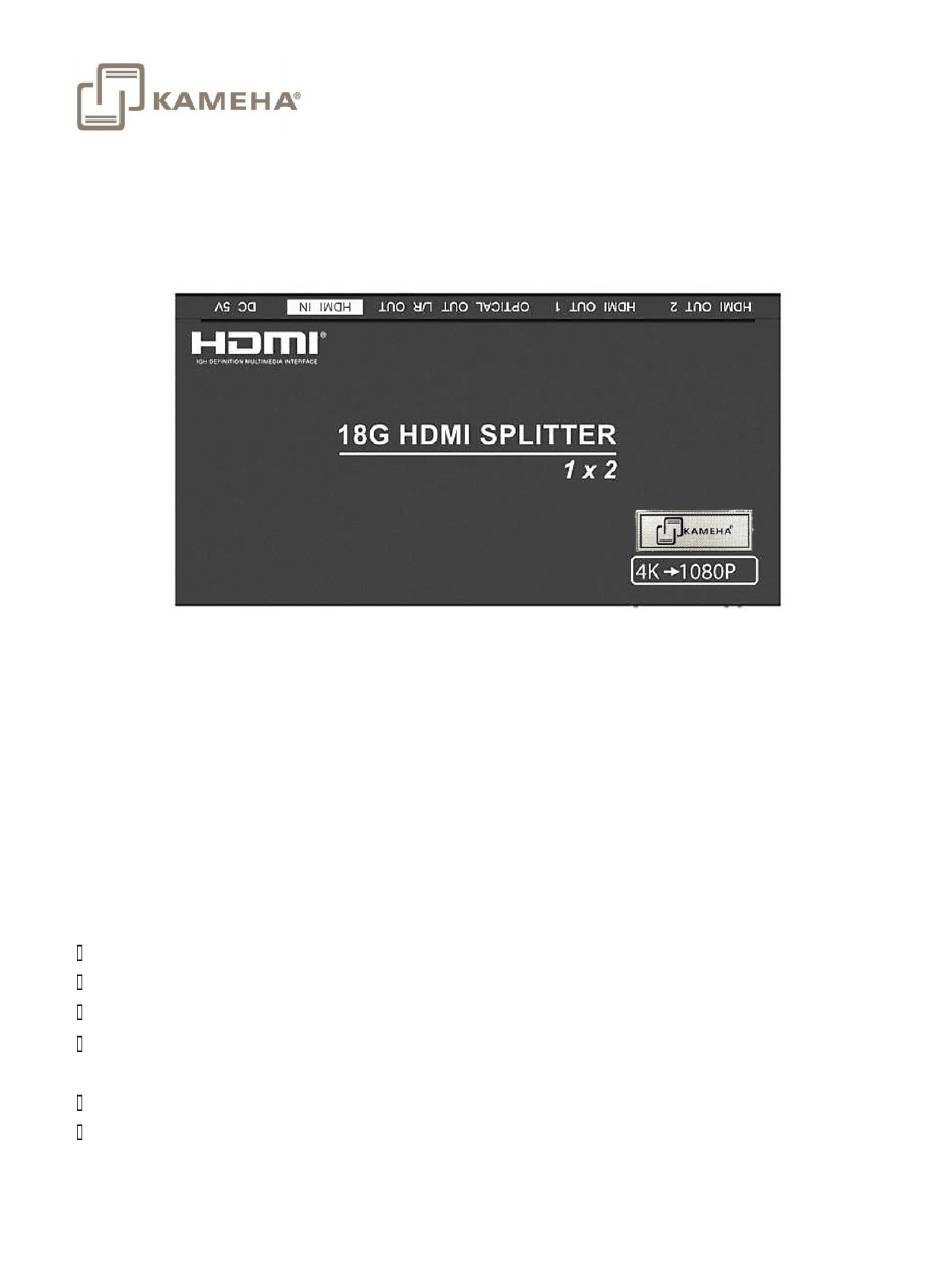

The 18Gbps HDMI 1×2 Splitter can distribute 1 HDMI source signal to 2 HDMI display devices. It

supports resolution up to 4K2K@50/60Hz (4:4:4). This product supports audio extract from HDMI

source to optical and analog output. Two EDID modes (COPY/AUTO) can be selected. All output

ports support signal bypass and video downscale (4K->1080P ) function.

Features

HDMI 2.0b, HDCP2.2/HDCP1.4 compliant

Support

18Gbps video bandwidth

Support video resolution up to 4K2K@50/60Hz (4:4:4)

Support digital and analog audio extract output from HDMI source ☆

support signal bypass and 4K->1080P downscale function via the dial switch on panel

EDID can be selected COPY and AUTO modes via the dial switch on pane l

Support HDMI audio format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,

DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD .

- KAMEHA

Output ports

Need help?

Do you have a question about the KA164 and is the answer not in the manual?

Page 1 KA164 2 PORT HDMI SPLITTER V2.0 WITH SCALER - KAMEHA The 18Gbps HDMI 1×2 Splitter can distribute 1 HDMI source signal to 2 HDMI display devices. It supports resolution up to 4K2K@50/60Hz (4:4:4). This product supports audio extract from HDMI source to optical and analog output.
Page 2 Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, Video Resolution 4K2K@50/60Hz (4:4:4) Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-bit (4K60Hz), 12-bit (1080P) HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS -EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD L/R Audio Formats...
Page 3 Operation Controls and Functions Front panel Number Name Function Description POWER LED The blue LED will be on when the device is powered on. HDMI INPUT The blue LED will be on when the HDMI IN port has connected an active HDMI source device with a HDMI cable.
Page 4 Rear panel Number Name Function Description HDMI HDMI output port. Connect to HDMI display device such as TV or OUTPUT monitor. OPTICAL Optical audio output port. Connect the amplifier to output audio from HDMI IN port. Analog audio output port. Connect the speaker to output audio from L/R OUT HDMI IN port.
