Summary of Contents for Vital VLRI32180

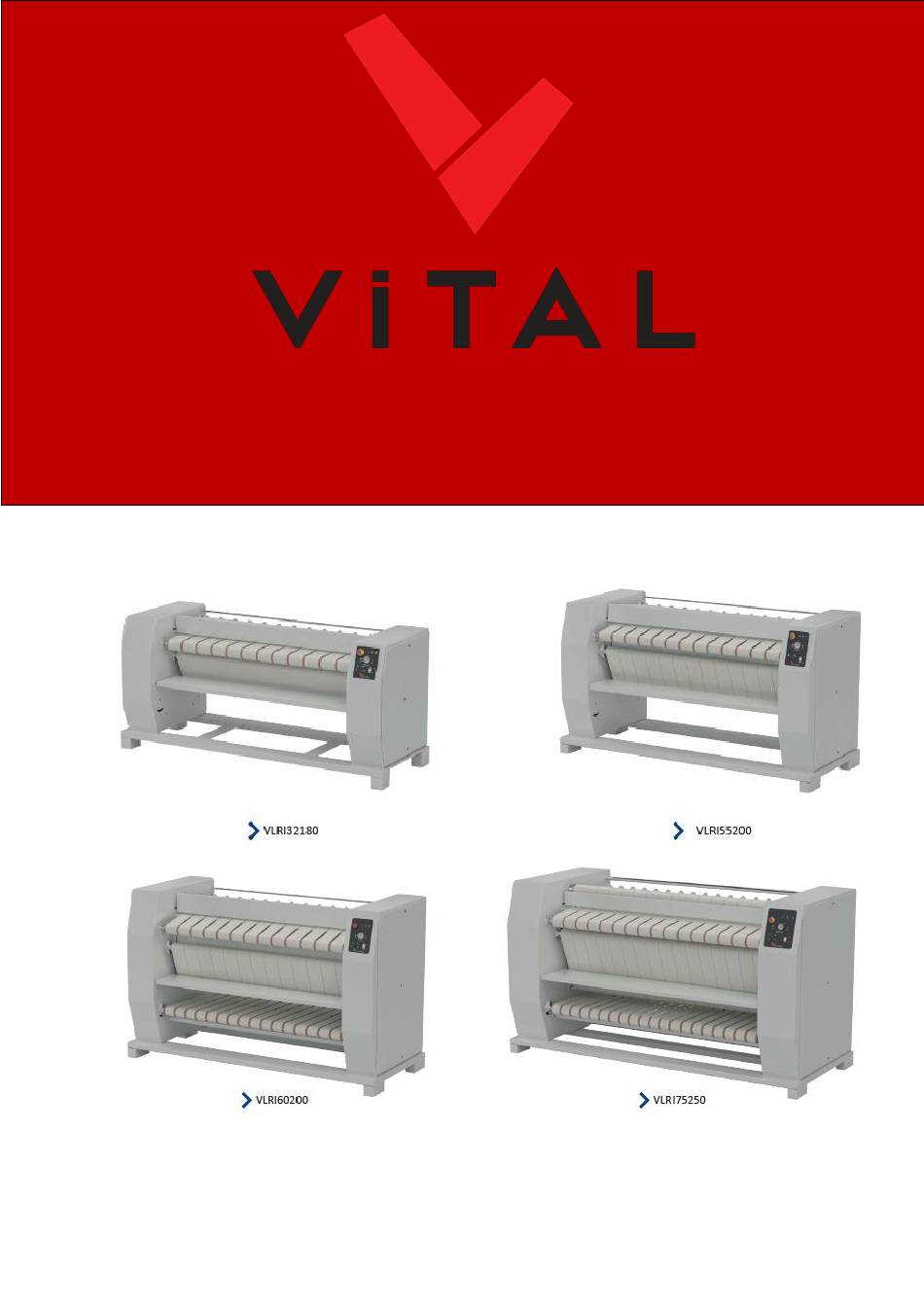

- Page 1 USAGE AND MAINTENANCE MANUAL ROLLER IRONER W/ DRYER BAND...
-
Page 2: Presentation
PRESENTATION DEAR CUSTOMERS, • To get the best yield of our products that are in compliance with the International Standards, we highly recommend you to read the user’s manual and have it read to your users for long and continuous usages. •... -
Page 3: Table Of Contents
INDEX PRESENTATION ....................2 INDEX ......................... 3 SAFETY DETAILS ....................4 TECHNICAL SPECIFICATIONS ................5 TRANSPORTATION, PLACEMENT AND READY TO INSTALL ........6 HOOD CONNECTION ..................7 ELECTRICAL CONNECTION .................. 7 USAGE ........................ 8 1-) Switching On ....................9 CLEANING......................11 MAINTENANCE AND MALFUNCTION .............. -
Page 4: Safety Details
SAFETY DETAILS • Do not expose the device to direct sunlight. • The instructions should be analysed before the installation and the usage of the device. • The device can only be used for professional purpose. The installation and the maintenance should be carried out by the qualified staff authorized by the manufacturer. -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS PRODUCT CODE VLRI32150 VLRI32180 VLRI55150 VLRI55180 VLRI55200 WIDTH 2250 2550 2250 2550 2750 DIMENSIONS DEPTH 1020 1020 1200 1200 12300 (mm) HEIGHT 1170 1170 1500 1500 1500 HEATING POWER 12,6 kW 15,3 kW 21 kW 24 kW 27 kW... -
Page 6: Transportation, Placement And Ready To Install
TRANSPORTATION, PLACEMENT AND READY TO INSTALL • Do not tilt the device during the transportation, carry it upright. • Use a suitable vehicle to avoid any kind of damages. • Do not push or drag the device to bear. • When transporting by pallet jack or forklift, make sure to not damage the device. -
Page 7: Hood Connection
HOOD CONNECTION It is recommended to install a hood on the appliance in order to prevent the hot and humid (hot steam) air produced by the appliance during ironing to prevent the air quality of the working environment. This hood should be installed approximately 150 cm above the highest point of the appliance. -
Page 8: Usage
USAGE • Make sure that the electrical and water fittings are made properly. • Do not iron a luandry bigger than the drum size of the machine. This may cause an entrapment inside the device and the laundry will not be ironed properly. •... -
Page 9: Switching On
1-) Switching On • When the device reaches the required temperature, press the “start button” located on the control panel to start the transaction (the direction switch should be in”forward” position). Then, through the transmitter band, give the workpiece right to the machine. You may press the “stop” button in case of any malfunction. - Page 10 ICON NAME USAGE Before operating the device, make sure the “emergency stop” EMERGENCY button is disabled. You may check by turning it slightly to clockwise. STOP If it is enabled, it will feebly come back. In case of emergency, push the button only one time.
-
Page 11: Cleaning
CLEANING • Disconnect the device from the wiring before cleaning. • When cleaning the device, make sure to prevent water from entering in the electrical parts. • Clean the exterior of the machine regularly. You may use soapy warm water. •... -
Page 12: Maintenance And Malfunction
MAINTENANCE AND MALFUNCTION • All connections and repairs must be carried out by the authorized service centers, otherwise, your device will be out of warranty. • Make sure the periodic maintenances are made on time. • Every 400 hour (approximately each month), grease your device with the bearing (2 press) with the end fitting situated at the back of the device. -
Page 13: Warranty Conditions
WARRANTY CONDITIONS • According to the consumer rights law and commercial law of the Ministry of Industry, except in a special case of agreement, sold industrial products by our company has one (1) year of warranty and that period starts from the delivery date of the product. -
Page 14: Out Of Warranty Cases
Out of Warranty Cases • If the product is used above its intended purpose, standards or capacity specified by the manufacturer. • In case of the bad locationing of the product, continous usage and unhealty environment (ex: required ventilation), not suitable floor or flat platform, lack of convenient electrical connection, •... -
Page 15: Authorized Service Start Up Page
AUTHORIZED SERVICE START UP PAGE Start Up Page • The model and serial number of your device are shown on the “Technical Data” label affixed to the device. • Select the technical data according to the device model on the nameplate. - Page 20 CONTACT MUTAŞ MUTFAK ISITMA SİSTEMLERİ SAN. PAZ. İNŞ. TUR. İÇ VE DIŞ TİC.LTD.ŞTİ HEADQUARTER ADRESS: Plevne Cad. No:40 Gülveren / ANKARA PHONE: (0312) 363 99 33 FAX: (0312) 363 94 92 Web: www.vitalmutfak.com E-Mail:info@vitalmutfak.com MUTAŞ MUTFAK ISITMA SİSTEMLERİ SAN. PAZ. İNŞ. TUR. İÇ VE DIŞ TİC.LTD.ŞTİ...
