Page 1 MPPT Charge Controller 60A|150V Model Number: 710-6048-01 Copyright © 2023 Xantrex LLC. All Rights Reserved. All trademarks are owned by Xantrex LLC and its affiliates. Exclusion for Documentation UNLESS SPECIFICALLY AGREED TO IN WRITING, SELLER (A) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION; ...
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION ’ READ AND SAVE THIS WNER UIDE FOR FUTURE REFERENCE Read these instructions carefully and look at the equipment to become familiar with the device before installing, operating, configuring, maintaining, and troubleshooting it. The following special messages may appear throughout this documentation or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.
Page 3: Product Safety Information
Product Safety Information 1. Before using the solar charge controller, read all instructions and cautionary markings on the solar charge controller's components, the batteries, and all appropriate sections of this guide. 2. Use of accessories not recommended or sold by the manufacturer may result in injury to persons, a risk of electric shock, or a risk of fire.
Page 4 CAUTION PHYSICAL INJURY HAZARD This Xantrex SOLAR MPPT Charge Controller 60A|150V is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 5: Fcc Information
FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 6: End Of Life Disposal
End of Life Disposal The Xantrex SOLAR MPPT Charge Controller 60A|150V is designed with environmental awareness and sustainability in mind. At the end of its useful life, the charge controller can be decommissioned and disassembled. Components which can be recycled must be recycled and those that cannot be recycled must be disposed of according to local, regional, or national environmental regulations.
Page 7: Table Of Contents
TABLE OF CONTENTS Important Safety Information Product Safety Information FCC Information End of Life Disposal INTRODUCTION Features Materials List Front and Terminal Panels Maximum Power Point Tracking (MPPT) Charge Controlling Three-Stage Battery Charging Equalization Charging INSTALLATION Safety Instructions PV Array Requirements Wiring Requirements Mounting Requirements Basic Installation Steps...
Page 8: Introduction

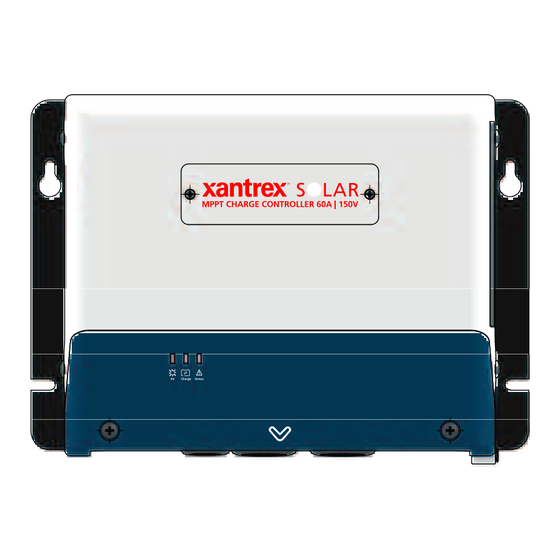

1 INTRODUCTION Thank you for purchasing the Xantrex SOLAR MPPT Charge Controller 60A|150V. The Xantrex SOLAR MPPT Charge Controller 60A|150V is a high quality, 48-volt solar charge controller. It is designed to take solar energy and charge many voltage types of batteries such as 12|24|36|48 volts using a smart charging algorithm integrated with maximum power point tracking.
Page 9: Features
Features The charge controller is equipped with the following features: 1. Maximum power point tracking (MPPT) technology Capable of ultra fast tracking speed including multiple power point peaks with a 99.5% efficiency rating. The MPPT control algorithm maximizes effective rate and time energy harvesting. Has a wide maximum power point operating voltage range.
Page 10: Materials List
Materials List The charge controller base package includes the following items: 1 Xantrex SOLAR MPPT Charge Controller 60A|150V 2 Product Notice with QR code to online Owner's Guide 3 Mounting screws 4 RV-C cable with connector NOTE: If any of the items are missing, contact Xantrex or any authorized Xantrex dealer for replacement.
Page 11: Front And Terminal Panels
Front and Terminal Panels 1 LED indicators [PV|Charge|Status] for PV input, charging battery, and status 2 Terminal panel screws (2x) - remove to access the PV and Battery terminals 3 Modbus ports 4 CAN port (see PIN assignments below) 5 Access hole to: Battery voltage sensor (BVS on the left) Battery temperature sensor (BTS on the right) 6 Access hole to:...
Page 12: Maximum Power Point Tracking (Mppt)
Maximum Power Point Tracking (MPPT) MPPT enables the charge controller to harvest the maximum energy available from the PV array and deliver it to the batteries. The MPPT algorithm continuously adjusts the array operating voltage so that the array continuously operates at its maximum power point.
Page 13: Charge Controlling
Charge Controlling The charge controller can regulate PV array current for charging batteries at 12|24|36|48 volts. Figure 2 PV Charge Controller – – – – The charge controller controls how the batteries are charged by the DC source (the PV array). When charging, the charge controller regulates the charging voltage and current based on the amount of DC power available from the PV array and the current state of charge of the battery.
Page 14: Three-Stage Battery Charging
Three-Stage Battery Charging The three-stage charging process results in more efficient charging compared to on-off relay type or constant voltage solid-state regulators. The final float stage reduces battery gassing, minimizes electrolyte loss, and ensures complete battery recharging. Battery voltage and current vary during the three-stage charging process as shown in Figure 3 .
Page 15: Equalization Charging
Equalization Charging The charge controller can be used to provide the battery bank with an equalize charge. Equalization is a deliberate overcharge designed to return each cell in the battery to optimum condition by reducing sulfation and stratification in the battery. The equalization charge is generally performed only on flooded, vented (non-sealed or “wet”) lead-acid batteries, as recommended by the battery manufacturer.
Page 16: Installation
INSTALLATION Before beginning your installation: Read this entire chapter so you can plan the installation from beginning to end. Assemble all the tools and materials you require for the installation. Be aware of all safety and electrical codes which must be met. This chapter includes the following topics: Safety Instructions PV Array Requirements...
Page 17: Pv Array Requirements
PV Array Requirements 1. Serial connection (string) of PV modules - as the core component of the PV system, the charge controller could be suitable for various types of PV modules and maximize converting solar energy into electrical energy. According to the open circuit voltage (V ) and the maximum power point voltage (V ) of the Xantrex SOLAR MPPT Charge Controller 60A|150V, the...
Page 18 Generally speaking, if the output power of the PV array exceeds the rated charging power of a charge controller, then the charge controller will be limited according to its rated charging power. The maximum power of the PV array shall not be greater than 1.5 times the rated charging power of the charge controller.
Page 19: Wiring Requirements
Wiring Requirements WARNING ELECTRICAL SHOCK AND FIRE HAZARD All wiring should be done by qualified personnel to ensure compliance with all applicable installation codes and regulations. Design the power system using a certified recreational vehicle and PV system designer and install using a certified RV technician/electrician. Comply with all applicable installation codes and regulations.
Page 20: Mounting Requirements
Mounting Requirements WARNING ELECTRICAL SHOCK AND FIRE HAZARD Do not cover or obstruct ventilation openings and/or heat sink. Do not mount in a zero-clearance compartment. Overheating may result. Failure to follow these instructions can result in death, serious injury, or equipment damage The charge controller should only be installed in locations that meet the following requirements: Dry, Indoor...
Page 21: Basic Installation Steps
Basic Installation Steps WARNING HAZARD OF ELECTRIC SHOCK AND FIRE User shall install a fuse that is the same as the rated current of the controller on the positive battery side with a distance from the battery not greater than 150 mm. Ensure that the "+"...
Page 22 3 Using the provided mounting screws, secure the charge controller on the wall. 4 Remove the wiring terminals cover plate at the bottom of the unit and connect the cables/wires using Figure 6 as an illustration and the instructions in step 2 (see details on page 23).
Page 23 2. Connect the cables in the following sequence: Battery cables, PV cables, ground, and accessories, if applicable. Battery cables Open the DC disconnect (or DC fused-disconnect) device on the red POS(+) battery cable. Connect the battery's red POS(+) cable to the charge controller's POS(+) terminal. Connect the battery's black NEG(–) cable to the charge controller's NEG(–) terminal.
Page 24: Operation
OPERATION This chapter explains how to operate the solar charge controller and includes the following topics: Protection Features During Operation PV Indicator Charge Indicator (also Battery Type) Status Indicator Setting Parameters and Special Functions Monitoring Use of Mobile Phone APP (Standard Configuration) Definition of RS485 Communication Interface Battery Temperature Sensor (BTS) 975-1179-01-01 Rev A...
Page 25: Protection Features During Operation
Protection Features During Operation NOTE: When the unit is operational and events are detected, the LED indicators flash according to flash patterns discussed in the succeeding pages. Feature Description IP20 Touch proof and resistant to dust but not waterproof. PV over-current When the PV array's charging current exceeds the charge controller's rated current, the charge controller will charge at its rated current.
Page 26: Pv Indicator
PV Indicator Indicator Light State PV array producing power PV array disconnected or not receiving sunlight Charge Indicator (also Battery Type) Charge NOTE: Behavior depends on whether the PV Indicator is on or off. Charging Status Battery Type Color PV Indicator light is On PV Indicator light is Off Charger disabled Green...
Page 27: Setting Parameters And Special Functions
Setting Parameters and Special Functions Monitoring Use of Mobile Phone APP (Standard Configuration) Bluetooth® 5.0 BLE module is integrated in the controller and users can use the mobile phone APP for data monitoring, setting, and other operations to the controller. Please download and install the Xantrex Solar app. Definition of RS485 Communication Interface Set as communication mode Users can utilize Modbus protocol to perform data monitoring, parameter setting and other operations.
Page 28 This page is intentionally blank.
Page 29: Troubleshooting
4 TROUBLESHOOTING This chapter includes the following topics: Common Issues Maintenance WARNING ELECTRICAL SHOCK HAZARD Do not disassemble the charge controller. It does not contain any user-serviceable parts. Attempting to service the unit yourself could result in an electrical shock or burn. Failure to follow these instructions can result in death, serious injury, or equipment damage.
Page 30: Common Issues
Common Issues Problem Solution There is voltage on the solar panel but Check the battery terminals with a voltmeter to verify battery no voltage output at the battery. voltage It shall return to normal state after battery is disconnected and reconnected to the controller. Connected with 12|24|36|48V normal Check whether correct system voltage.
Page 31: Specifications
5 SPECIFICATIONS NOTE: Specifications are subject to change without prior notice. Table 7 Specifications Specifications MPPT Charge Controller 60A|150V Dimensions (mm) Nominal System voltage 12|24|36|48 VDC No load loss current < 75 mA Battery voltage 9–64 VDC Max PV open circuit voltage 150 VDC Max PV short circuit current 50 A Max voltage at power point Battery voltage + 2 – 120 VDC...
Page 32 Specifications MPPT Charge Controller 60A|150V Temperature compensation -3mV/°C/2V (default, settable lead-acid); no temperature coefficient compensation for lithium battery Communication Modbus, RV-C, Bluetooth® Internal temperature When interior temperature of controller is higher than the set protection value, it shall perform linear power reduction operation External temperature The temperature is used for battery temperature sampling of battery...
Page 33 Table 9 Custom Battery Default Settings Battery Type Custom by MOBUS Custom Default Voltage Setting Over voltage fault 9~17V Over voltage fault recovery 9~17V Equalize voltage 9~17V 14.4V Absorption voltage level 9~17V 14.4V Float voltage level 9~17V 13.4V Re-bulk voltage level 9~17V 13.2V Equalize time T1 (min) 0~180 Absorption exit current Absorption Max time T2 (min)
