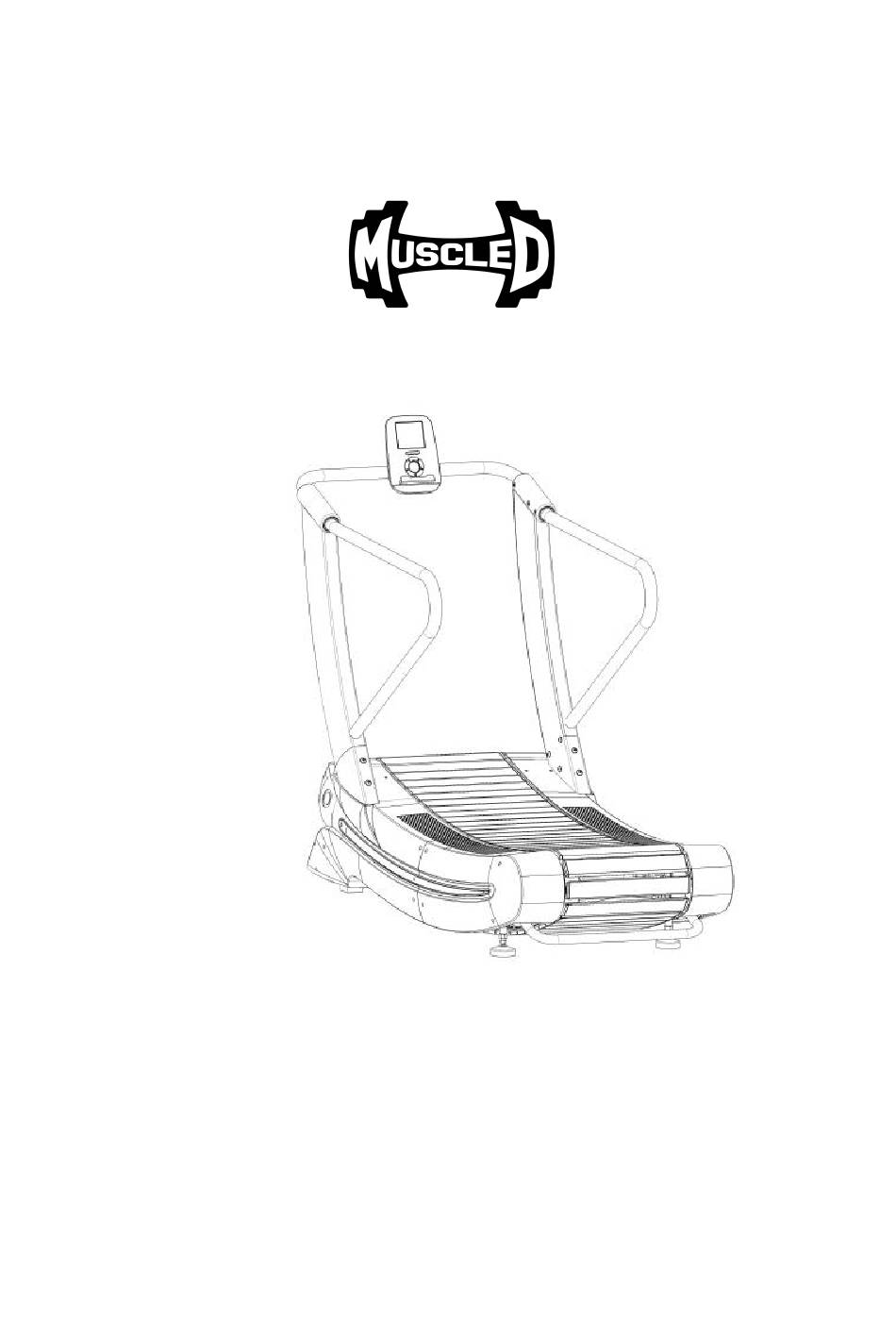

- Page 1 CC-CTM MUSCLE D COMMERCIAL SELF POWERED TREADMILL MANUAL...
- Page 2 Catalog: 1. Safety Precautions 2. Technical standard 3. Machine diagram 4. Installation process 5. Operation guide 6. Machine debugging process 7. Packing list 8. Explosive view&parts list...
-
Page 3: Safety Caution
1. Safety Caution： Read all precautions and instructions in this manual before using this equipment. 1. This Curve treadmill is suitable for commercial fitness clubs, clubhouse fitness, bodybuilding training, sports training, physical education and so on. 2. This Curve treadmill is suitable for indoor use. Do not use it outdoors or in high humidity. - Page 4 2. The Parameter of Technology： Input supply voltage: four-cell dry battery Time: 0:00—99.59 Distance: 0.00—99.59 (km) Calories: 0—999 (kcal) Heart rate: 60—300 (Times/Min) Revolving speed 0-900 (r/min)
-
Page 5: Machine Diagram
3.Machine diagram Screen Head holder Handel Rack Foot stepping Belt Moving handle... - Page 6 4. Assembly instructions Taking easy-assembly as the principle: User Manual of this section is designed to ensure that the treadmills can be assembled correctly. According to the user manual assembly procedure, the assembly work will be very smooth. ●As a result of the large size of the treadmill, please select the location where the treadmill will be placed and ensure there is enough space around it.
- Page 7 Assembly step one: Connect the magnetic induction line and assemble the column Assembly instructions: 1) Remove the left and right column packing materials 2) Fix the column to the corresponding position of the main frame as shown in the figure. Note: Connect the magnetic line below Magnetic wire...
- Page 8 Assembly step two: Connect the magnetic induction line and assemble the head holder: Assembly instructions: 1) Connect the magnetic induction line of the head holder to the magnetic line of the column 2) Fix the case to the corresponding position of the column, and fasten the head fixing bracket with the column connecting bolt, as shown in the figure.
- Page 9 Assembly step three: Assembling the head; connecting the magnetic line 1) Connecting the magnetic induction line of the meter head and the magnetic induction line of the head holder 2) After connecting the magnetic induction line, place the meter head at the joint with the head holder and fasten it (as shown);...
- Page 10 Treadmill Operation Manual Introduction: This treadmill adopts console model, four pieces dry battery power supply, low power consumption, no external power supply required; This treadmill interface has only one main interface, with six buttons to achieve the purpose of use, the specific operation methods of the treadmill are as follows: 1.Home page The main interface is used to display device name, time, distance, calories, speed,...
- Page 11 2. Six button Start/Stop button. In standby mode, all Numbers will start counting only when you click the button.Click this key while running, and all data will stop counting. Numerical plus key: For numerical addition on numerical setting interface, growing rate: +1 Numerical minus key: For numerical reduction on numerical setting interface, reduction rate: -1 Program setting key: Click this key to start program setting, consist...
