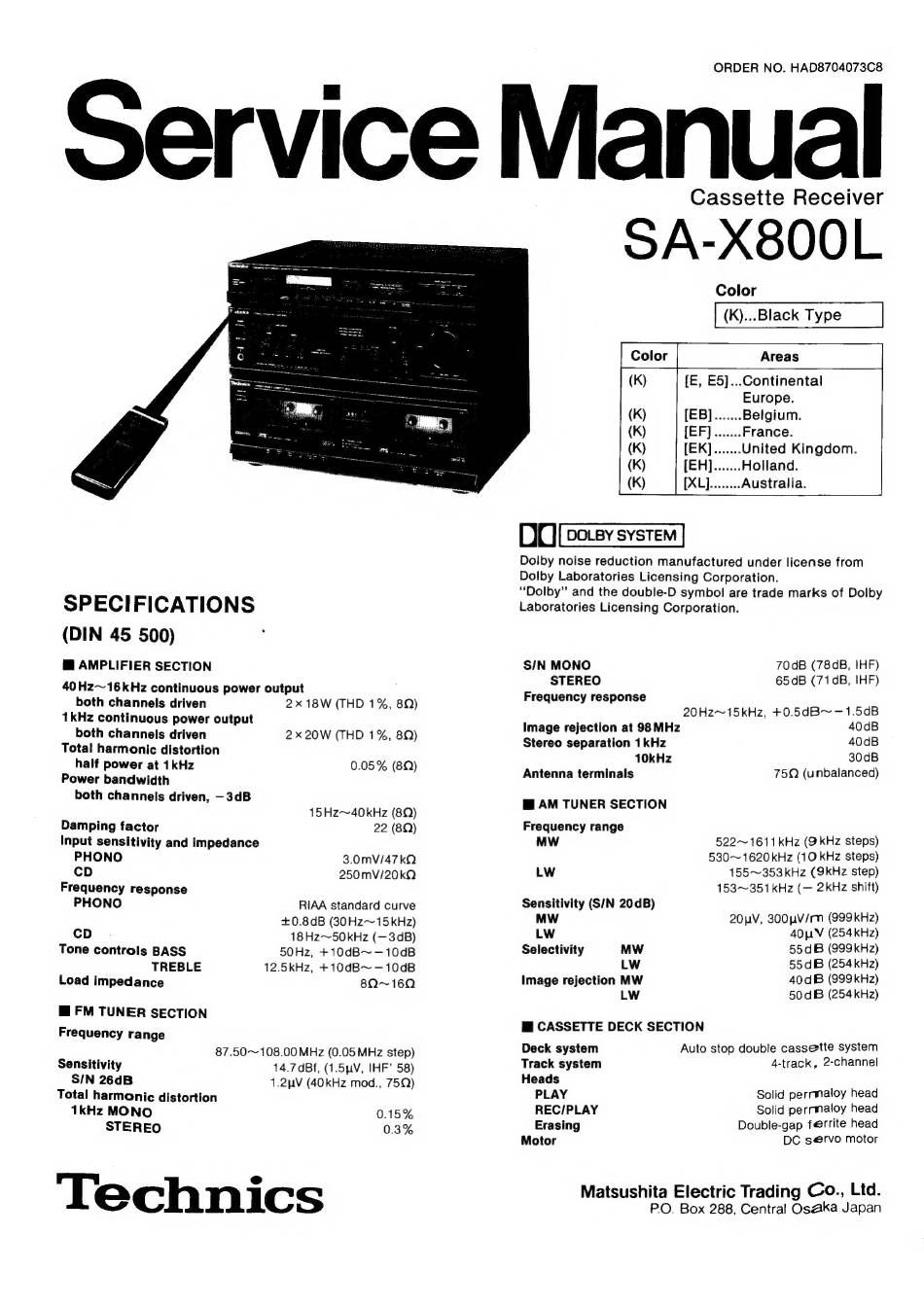

Technics SA-X800L Service Manual

ORDER NO. HAD8704073C8 Service Manual
SPECIFICATIONS
(DIN 45 500)
Ml AMPLIFIER SECTION
40Hz~16kHz continuous power output
both channels driven
1kHz continuous power output
both channels driven
Total harmonic distortion
half power at 1kHz
Power bandwidth
both channels driven, —3dB
Damping factor
Input sensitivity and impedance
PHONO
cD
Frequency response
PHONO
cD
Tone controls BASS
TREBLE
Load impedance
@ FM TUNER SECTION
Frequency range
2x 18W (THD 1%, 8Q)
2x 20W (THD 1%, 8Q)
0.05% (8Q)
15HZ~40 kHz (8Q)
22 (8Q)
3.0mV/47kQ
250mV/20kQ
RIAA standard curve
+0.8dB (30Hz~15kHz)
18Hz~50kHz (—3dB)
50Hz, +10dB~—10dB
12.5kHz, +10dB~—10dB
80N~160
87.50~ 108.00 MHz (0.05 MHz step)
Sensitivity
SIN 26dB
Total harmonic distortion
1kHz MONO
STEREO
14.7dBf, (1.5uV, IHF' 58)
1.2uV (40kHz mod., 75Q)
0.15%
0.3%
Cassette Receiver
SA-X800L
Color
(K)...Black Type
| Color Areas
[¢k) | fe, E5)...Continental
Europe.
(K) [EB}....... Belgium.
(K) [EF] ....... France.
(K) [EK]....... United Kingdom.
(K) [EH]....... Holland.
| (K) [XL]........ Australia.
DO (oaavsvsre)
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trade marks of Dolby
Laboratories Licensing Corporation.
S/N MONO 70dB (78dB, IHF)
STEREO 65dB (71dB, IHF)
Frequency response
20Hz~15kHz, +0.5dB~ — 1.5dB
Image rejection at 98MHz 40dB
Stereo separation 1kHz 40dB
10kHz 30dB
Antenna terminals 75Q (unbalanced)
Mi AM TUNER SECTION
Frequency range
MW 522~1611kHz (9 kHz steps)
530~1620kHz (10 kHz steps)
153~351 kHz (— 2kHz shift
Sensitivity (S/N 20dB)
Image rejection MW 40dB (999kHz)
LW 50d B (254 kHz)
Wi CASSETTE DECK SECTION
Auto stop double cassette system Deck system
4-track, 2-channel Track system
Heads
PLAY Solid perrmaloy head
REC/PLAY Solid perrmaloy head
Erasing Double-gap ferrite head
Motor DC servo motor
Matsushita Electric Trading Co., Ltd.
PO. Box 288, Central Osaka Japan
