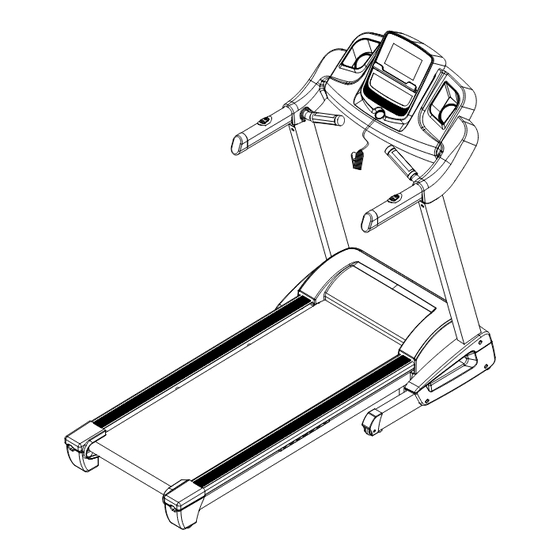

MasterFit TP150 User Manual

Motorized treadmill

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

MOTORIZED TREADMILL

USER'S MANUAL

MASTERFIT TP150

Table of Contents

Need help?

Do you have a question about the TP150 and is the answer not in the manual?

Questions and answers

Summary of Contents for MasterFit TP150

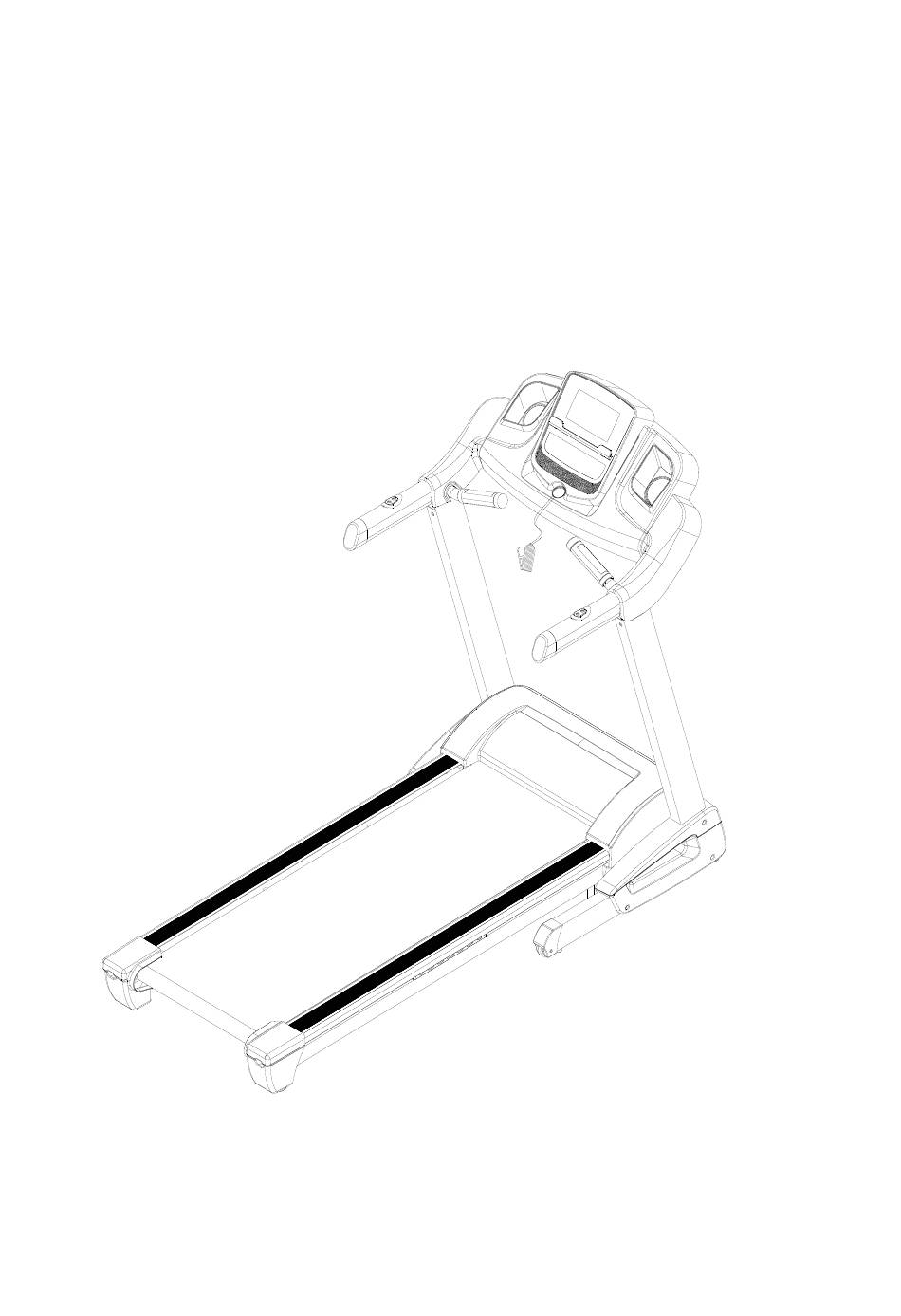

Page 1 MOTORIZED TREADMILL USER’S MANUAL MASTERFIT TP150...
Page 2: Table Of Contents
CONTENT CONTENT -------------------------------------------------------------------------------------------------------------------------------- IMPORTANT SAFETY PRECAUTIONS ----------------------------------------------------------------------------------2-3 ASSEMBLY INSTRUCTIONS --------------------------------------------------------------------------------------------------4-6 FOLDING & UNFOLDING INSTRUCTIONS -----------------------------------------------------------------------------7 GROUNDING METHODS ---------------------------------------------------------------------------------------------------------8 OPERATION GUIDE -------------------------------------------------------------------------------------------------------------9-13 GETTING STARTED GUIDE ---------------------------------------------------------------------------------------------------14 SAFETY EXERCISES --------------------------------------------------------------------------------------------------------------15 WARM-UP EXERCISES -----------------------------------------------------------------------------------------------------------16 MAINTENANCE INSTRUCTIONS -------------------------------------------------------------------------------------------17 BELT ADJUSTMENT ---------------------------------------------------------------------------------------------------------------18 EXPLODED DRAWING -----------------------------------------------------------------------------------------------------------19 PARTS LIST -------------------------------------------------------------------------------------------------------------------------20-21 ERROR CODE AND SIGNIFICANCE...
Page 3: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS WARNING: Before starting any exercise program, consult with your physician or health professional， especially the person who is above 35 years old people or has some health problems before. We take no responsibility for any troubles or hurts due to above reasons. Don't power on until you finish assembly the treadmill and covering the protected top of motor.
Page 4 The main technical parameters Working temperature: 0-40 ℃ Input supply voltage：240V Speed range: 0.8-18KH/M Incline range:15 levels of Motor incline Max. user weight: 130kg Distance display range: 0.00-99.9km Calories display range: 000-999 Time display range: 00： 00-99： 59 (min : sec) Heart rate range: 50-200 (time / min) Running surface:500*1400mm Product size: 1830*870*1420mm...
Page 5: Assembly Instructions
WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS: Main frame*1set D21 Inner washer D8 Round head hex C13 Safety Key*1set M10*8 pcs bolt M10x15*4pcs D2 Allen wrench D1 Screw driver*1pcs D12 Round head hex B49 Water bottle 6MM*1 pcs bolt M10x55*4pcs *2pcs...
Page 6 Step 2: Secure bottom frame with bolt M10*55（D12）, Flat washer M10（D21）. Then inserts the upper frame with bolt M10*15 (D8) and Flat washer M10 (D21). Step 3: Tighten the Left/Right side covers (B11L) & (B11R) onto the upright tubes and base frame, then fix them with Screw ST4.2*19 (D48) as picture.
Page 7 Step 4: Put on the safety key (C13), Power cable ( C15), MP3 Cable (C19) and bottle holder (B49) on the console. Step 5: After installation, press start button and adjust speed level under 3km/h. Then check the running belt to see if it runs smoothly or not. The tightness level is decided based on the situation of slippery and deviation (Please refer to “MAINTENANCE INSTRUCTIONS“).
Page 8: Folding & Unfolding Instructions
Lift up the machine and force to pull up until you heard "click" that made by safety casing stuck the pneumatic cylinder. Kick the safety sleeve lightly and pull down the machine at the same time as the arrow direction. Then the machine will fall down smoothly.
Page 9: Grounding Methods
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Page 10: Operation Guide
1.1 WINDOW DISPLAY 1.2. START Normal start after 5 seconds countdown. 1.3 PROGRAM 3 countdown mode, 12 pre-set programs, and 3 user programs. 1.4 SAFETY LOCK FUNCTION The window shows"---" when taking off the safety key, the treadmill will stop in a few seconds with "didi"...
Page 11 1.5.3 “MODE” BUTTON When the treadmill is not running, press this button to choose countdown modes: ”H-1”,”H-2”,”H-3”, “H-1” is the time countdown mode, “H-2” is the distance countdown mode, “H-3” is the calorie countdown mode. Press the “SPEED+/-” to adjust the data. After that, press “START”...
Page 12 1.6.6 PULSE Display pulse data. 1.6.7 SPEED DIAGRAM Display the diagram of the running speed. 1.6.8 ALL WINDOW DISPLAY DATA RANGE TIME：0:00 – 99.59(MIN) DISTANCE: 0.00 – 99.9(KM) CALORIES: 0.0 – 999 (C) SPEED:0.8-18.0(km/h) PULSE: 50 – 200 (BPM) INCLINE：0 – 15 1.7 PULSE FUNCTION When the treadmill is running, hold the hand pulse about 5 seconds, it will display pulse data.
Page 13 SPEED INCLINE SPEED INCLINE 1.9 Manual model operation Besides 16 pre-set programs, there are 3 user-defined programs: U1, U2, and U3. Each user program has 16 segments. The user can set the desired speed and incline. Press “SPEED+” or “SPEED-“ to set speed. Speed range : 0.8KM/H-18KM/H Press “INCLINE+”...
Page 14 Height 100----220 Weight 20-----150 FAT≤19 Under weight FAT= (20---25) Normal weight FAT= (25---29) Over weight FAT≥30 Obesity 1.12 OTHERS 1.12.1 After running the countdown data, the screen displays END, and the alarm sounds one time for 0.5 second every 2 seconds until the treadmill stop, and back to the manual mode. 1.12.2 During the setting of data, it can proceed in cycle mode, etc.
Page 15: Getting Started Guide
After that stand on the plastic deck of the treadmill board, catch hold of the handrail, start by 1.6--3.2 km/h low speed, stand straight, look forward, one foot try to do few times, then stand on the belt to do exercise. After adapting, you can adjust the speed to 3--5 km/h and keep doing about 10 minutes, then stop.
Page 16: Safety Exercises
Please consult professional staff before do exercise. He can help recommendation exercise rate/intension and time according to your age and health condition. When running, if you feel chest tightness or chest pain, irregular Heartbeats, short of breath, dizziness or other unwell, please stop immediately! And consult professional before you want continually to do exercise.
Page 17: Warm-Up Exercises
It is better to do some warm-up exercise. Warm the muscle easy stretch, so use 5-10 mins to warm-up. Then stop and according below method to do stretch exercise for five times, and each foot do 10 seconds or more every time. After running, do those stretch exercises again.
Page 18: Maintenance Instructions
WARNING：Please make sure pull out the treadmill's power plug before cleaning or maintaining the product. CLEANSING：General cleaning or the unit will greatly prolong the treadmill's life. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails.
Page 19: Belt Adjustment
Place treadmill on a level surface. Make treadmill run at approximately 6-8 km/h, observe the running belt deviate condition. f the belt has drifted to the right, unplug the safety lock and power switch, and turn the right adjusting bolt 1/4 turn clockwise, then insert the power switch and safety lock, make the treadmill running, observe the running belt deviate condition.
Page 21: Parts List
Parts list A. Welding parts Description Description Base frame Incline bracket Main frame Filter supporting bracket Left upright Running board tube Right upright Motor bracket Handrail bracket B. Plastic parts Description Description Console set Adjust wheel B1-1 Overlay Round plug B1-2 Membrane Key Inner plug...
Page 22 Running board Inductor Cylinder Filter Motor belt Overload protector Power switch Single cord (blue) 300 Controller Speed Sensor Handle pulse left keyboard Pulse Handle pulse right keyboard Single line (brown) 150 Incline motor Single branch (blue) 150 Safety key Single ground wire Single branch(brown) 300 Outlet Power cable...
Page 23: Error Code And Significance
Error code and significance Error Code Fault Description Solutions Failure communication 1. Check if computer is connected to controller with correct wires, between controller and check connector, check if wire is damaged, or unplug and computer re-connect 2. Change controller and test 3.
