ARMADEX Ex BT-Key-02 Manual

Atex zone 2/22 explosion proof bluetooth keyboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

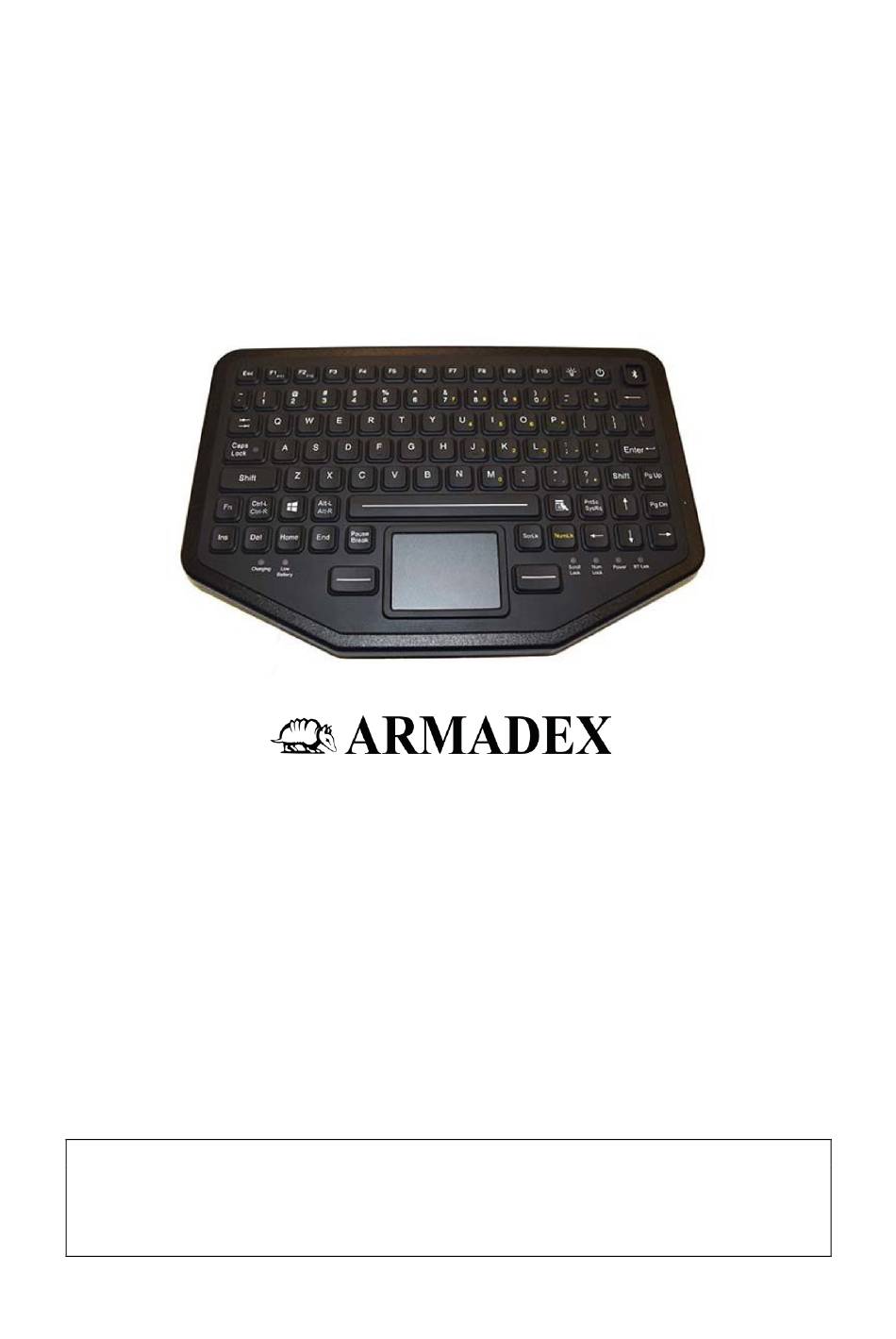

IOM Rev. 1.2.4 Armadex Ex BT-Key-02
ATEX zone 2/22 Explosion Proof Bluetooth
Equipment
OEM Manufacturer
Modified by
Date
READ THIS DOCUMENT AND ALL DOCUMENTS THAT ARE REFERRED TO BEFORE
OPERATION, START-UP OR TESTING OF THE KEYBOARD. THE DOCUMENTS
CONTAIN IMPORTANT SAFETY INSTRUCTIONS.
KEEP THESE INSTRUCTIONS AT HAND SO THEY CAN BE REVIEWED LATER ON.
Keyboard
: ATEX zone 2/22 Explosion Proof Bluetooth Keyboard
: Ikey Ltd.
: Armadex Explosion Protection B.V.
: Tinstraat 33, 2984 AN, Ridderkerk, The Netherlands
: Tel. +31 (0)180 472 880
: 03-25-2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ex BT-Key-02 and is the answer not in the manual?

Questions and answers

Summary of Contents for ARMADEX Ex BT-Key-02

  • Page 1 IOM Rev. 1.2.4 Armadex Ex BT-Key-02 ATEX zone 2/22 Explosion Proof Bluetooth Keyboard Equipment : ATEX zone 2/22 Explosion Proof Bluetooth Keyboard OEM Manufacturer : Ikey Ltd. Modified by : Armadex Explosion Protection B.V. : Tinstraat 33, 2984 AN, Ridderkerk, The Netherlands : Tel.
  • Page 2 Thank you for purchasing the Armadex Ex BT-Key-02. It can be connected via Bluetooth® to any Windows or Android system. The Ex BT-Key-02 is based on a product of OEM Ikey Ltd. It is suitable for use in ATEX zones 2 (Category 3G) and 22 (Category 3D).

  • Page 3: Safe Operation

    Qualification of personnel The Ex BT-Key-02 should only be operated by individuals who are skilled and have sufficient understanding of explosion safety and the hazardous area classification of the plant or factory. The required minimum expertise is a basic level of knowledge, akin to what is outlined in the objectives of IECEx 005-001 or similar standards.
  • Page 4 All individuals working with the Ex BT-Key-02 must report any and all alterations to the keyboard that may affect safety to the owner without delay. Foreseeable misuse To avoid foreseeable misuse of the Ex BT-Key-02, clear instructions should be given.
  • Page 5 IOM Rev. 1.2.4 Armadex Ex BT-Key-02 Armadex Explosion Proof Equipment B.V. Do not open the keyboard. The equipment provided by Armadex, including the unit itself, should not undergo any modifications. Altering the equipment will invalidate its ATEX EU Declaration or UKEX Conformity.

  • Page 6: Important Notes Before Use

    IOM Rev. 1.2.4 Armadex Ex BT-Key-02 Armadex Explosion Proof Equipment B.V. IMPORTANT NOTES BEFORE USE Inspection of the delivery Open the keyboard packaging and inspect for any damages. If you find any damage, do not use the keyboard and promptly contact both the shipping company and the seller.

  • Page 7: Technical Specifications

    IOM Rev. 1.2.4 Armadex Ex BT-Key-02 Armadex Explosion Proof Equipment B.V. TECHNICAL SPECIFICATIONS The Keyboard is modified to ATEX Zone 2/22 by applying various explosion protection methods, these can be found in the (EU/UKEX) Declaration of Conformity. Harmonised standards of the ATEX EU directive 2014/34/EU and UKCA Statutory Instruments 2016 No.

  • Page 8: Operation

    Bluetooth host device. Sleep Mode The Ex BT-Key-02 will go into sleep mode after 30 minutes of inactivity. To wake simply press on / off key. The Ex BT-Key-02 will automatically re-pair to the last connected Bluetooth host device.
  • Page 9 • Switching to wired USB: In the event the Bluetooth connection is disrupted by interference, the Ex BT-Key-02 can switch to being a wired USB keyboard by connecting the keyboard to the computer via the supplied MicroUSB cable. When connected via USB the keyboard will begin to charge and communicate over USB.
  • Page 10 Changes or modifications not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Product description The Ex BT-Key-02 Keyboard consists of the following parts: 5.8.1 Main PCB 5.8.2 Rechargeable Lithium-Ion battery 5.8.3 ABS Polycarbonate casing 5.8.4 Industrial Silicone Keypad...

  • Page 11: Fcc Information

    4. Consult the dealer or an experienced radio/TV technician for help. ***The User should not modify or change this equipment without written approval from Armadex Explosion Protection B.V and Ikey, Ltd. Modification could void authority to use this equipment.*** INSPECTION...
  • Page 12 IOM Rev. 1.2.4 Armadex Ex BT-Key-02 Armadex Explosion Proof Equipment B.V. EU AND UKEX DECLARATION OF CONFORMITY ATEX zone 2/22 Explosion Proof Bluetooth Keyboard 03-25-2024 -12-...
  • Page 13 IOM Rev. 1.2.4 Armadex Ex BT-Key-02 Armadex Explosion Proof Equipment B.V. ATEX zone 2/22 Explosion Proof Bluetooth Keyboard 03-25-2024 -13-...
