Summary of Contents for Trilogy INFINITY Series

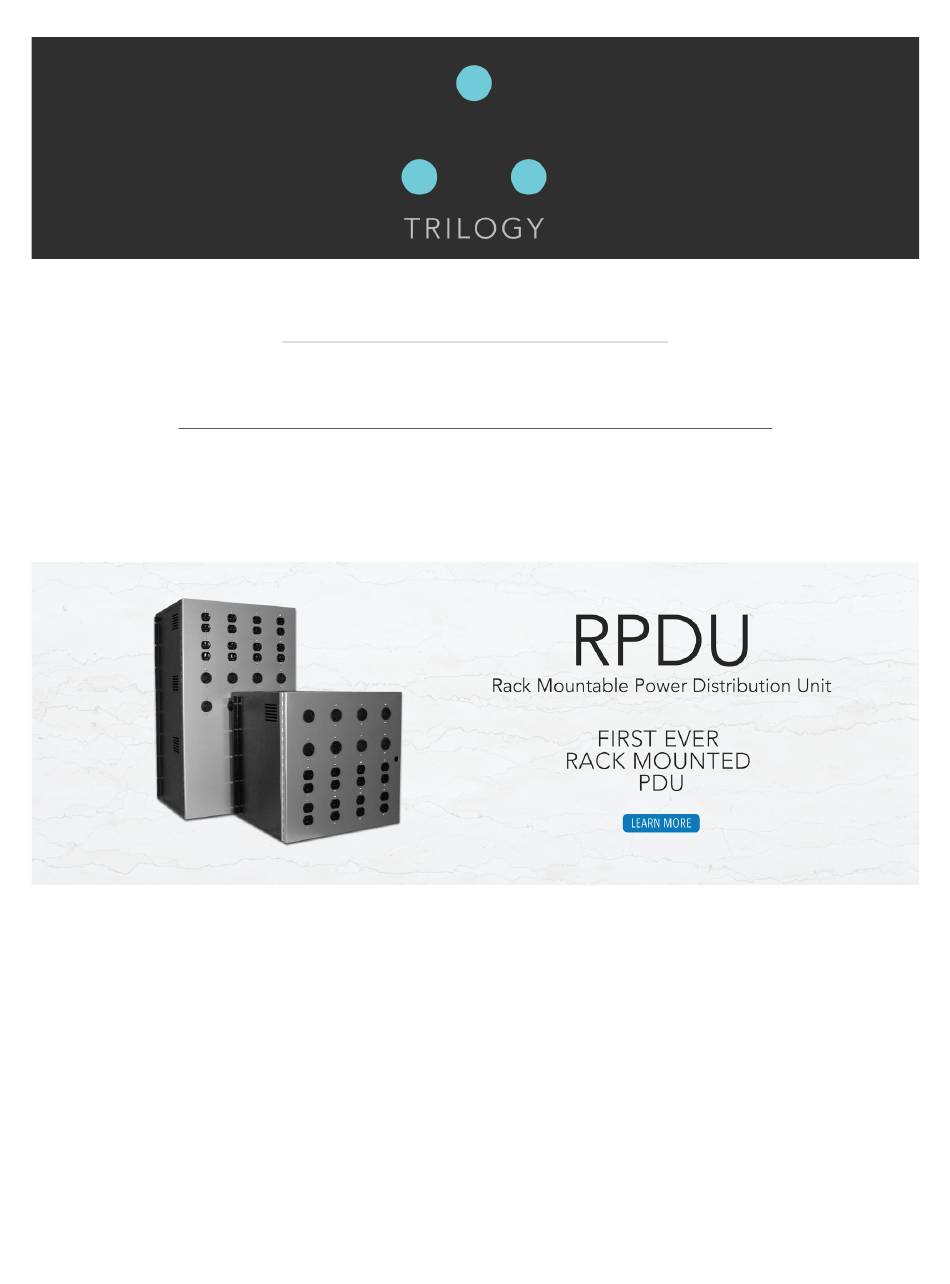

- Page 1 INFINITY series RPDU Operation and Installation Manual...
-
Page 2: Table Of Contents
Table of Contents 1.0 Installation Instructions ………………………………………………………………………………… Page 2 Unpacking and Installation 1.1.1 Unpacking and Initial Inspection 1.1.2 Handling 1.1.3 RPDU Preparation 1.1.4 Location Considerations Power and Control Wiring 1.2.1 Input Power Connections 1.2.2 Output Power Connections 2.0 Equipment Inspection and Start-Up …………………………………………………………………. Page 10 Internal Inspection Start-Up 3.0 Inspection and Start-Up Checklist ……………………………………………………………………... -
Page 3: Installation Instructions
3. Check the Unit for any shipping damages. If the Unit is damaged, immediately file a damage claim with the shipping agency and forward copy to: Trilogy, Inc. 27068 La Paz Road # 701 Aliso Viejo, CA 92656 Tel: (888) 514-4200 1.1.2 Handling... -
Page 4: Rpdu Preparation
1.1.3 RPDU Preparation The Rack Mount Power Distribution Unit may be easily removed from the shipping pallet and set in place by customer personnel. A typical procedure is as follows: 1. Set the Package in a level area, where there is enough room to unpack the box. 2. -
Page 5: Location Considerations
1.1.4 Location Considerations The Rack Mount Power Distribution Unit should be placed in the most middle rack; this will allow all power strips on each rack to reach the RPDU receptacles located on the back of the unit. (With an average 15’ power strip cord, nine racks can be powered without extension power cord) Equipment Location –... -
Page 6: Power And Control Wiring
1.2 Power and Control Wiring The power and control wiring should be installed by a licensed electricians. All power and control wiring must comply with the NEC and applicable local codes. 1.2.1 Input Power Connections The input power feeder is connected to the input power lugs or blocks located behind the back door inside the unit. - Page 7 To minimize disturbances caused by other loads in the building, the 3-phase or single-phase power input to the unit should be supplied directly from the service entrance or other power source (a dedicated power feeder). The input feeder circuit should be sized in accordance with the NEC and any local building codes to assure the feeder’s ability to safely carry the system’s full load current, including losses.
-
Page 8: Output Power Connections
1.2.2 Output Power Connections Output receptacles are provided on the back of the RPDU to simplify power delivery to the rack power strips. Simply plug each rack power strip into the RPDU and turn on the corresponding circuit breaker (Located inside the front door panel). It is recommended to run all power strip cables in a plastic track system. - Page 9 Flexible output distribution cables for use in data processing areas under a raised floor are optional and may be factory supplied. Cable lengths and layout should be well planned: • Cable access - Cable routes should follow aisles between equipment. This will facilitate access to cables for installation, routine inspection, and future changes.
- Page 10 Padlock-off provisions - All output cables without receptacles that are hard-wired to the load equipment must be equipped with a padlock-off accessory for the output circuit breaker. The padlock-off accessory is to be used to lockout and tag the circuit breaker when service is performed on the hard-wired load equipment in accordance with OSHA safety rules.
- Page 11 Figure 10 Typical Rack Mount Power Distribution Unit (RPDU) Equipment Arrangement Input Power Output distribution to the rack power strips...
-
Page 12: Equipment Inspection And Start-Up
Rack Mount Power Distribution Unit (RPDU). Initial system start-up - A qualified electrician should be employed to perform the equipment inspection and start-up. Should there be any questions please contact TRILOGY at (888) 514- 4200. Warranty - A copy of the appropriate checklist (furnished with the equipment) must be completed, signed, dated, and returned to TRILOGY Corporation. - Page 13 Table 6 Torque Specifications (Unless Otherwise Labeled) A. Nut and Bolt Combinations Grade 2 Electrical Connections with Belleville Standard Washers Bolt Shaft Size lb-in lb-in 5/16 12.1 21.7 10.7 60.0 28.9 B. Main Input Circuit Breaker Compression Lug Wire Breaker Size Size lb-in #14 - #10...
-
Page 14: Start-Up
Volts, phase C to phase A = _______________ (On 3-phase units) ___ 13. Turn ON the main input breaker (Located behind the front door, upper left), should the breaker trips check for proper wiring. Contact TRILOGY or the location factory representative for assistance. -
Page 15: Monitoring System Check Out
___ 21. Verify that all load equipment operates properly. After Inspection and Start-Up procedure is complete, the completed Start-Up and Inspection form furnished with the unit should be signed and returned to: Trilogy, Inc. 27068 La Paz Road # 701 Aliso Viejo, CA 92656 NOTE Warranty is not in effect unless the factory receives inspection and start-up form. -
Page 16: Operating Instructions
4.0 Operating Instructions 4.1 Start-Up Procedures Before unit is placed into service after initial installation, after equipment relocation, or after equipment has been de-energized for an extended period of time, perform equipment inspection and start-up procedures. After initial system start-up, the following guidelines can be used for standard equipment operation. -
Page 17: Corrective Maintenance (Repair)
5.0 Corrective Maintenance (Repair) Even the most reliable equipment may fail. TRILOGY support is at your service to assure fast repair of your unit and minimum downtime of your installation. WARNING ONLY QUALIFIED SERVICE PERSONNEL SHOULD PERFORM MAINTENANCE ON THE RACK MOUNT POWER DISTRIBUTION UNIT SYSTEM. - Page 18 Important Safety Instructions NOTE Read the entire manual before installing or operating the system. WARNING THE SHIPPING BANDS MAY BE UNDER TENSION. USE APPROPRIATE EYE, FACE, AND HAND PROTECTION TO SAFEGUARD AGAINST INJURY FROM BAND BACKLASH. WARNING VERIFY THAT ALL INCOMING LINE VOLTAGE (POWER) AND LOW VOLTAGE (CONTROL) CIRCUITS ARE DE-ENERGIZED AND LOCKED OUT BEFORE INSTALLING CABLES OR MAKING CONNECTIONS, WHETHER IN THE JUNCTION BOX OR IN THE UNIT.
- Page 19 As provided herein, the TRILOGY product is warranted to be free of defects in material and workmanship for a period of one year from the start-up date provided start-up occurs within six (6) months of the TRILOGY shipping date or from the bill of lading date (whichever is earlier), and the product has been stored in a suitable environment prior to start-up.
- Page 20 TRILOGY. If replacement parts or components are shipped or caused to be shipped by TRILOGY prior to inspection of the product claimed to be defective, the replacement part or portion shall be invoiced in the full current price amount and shipped freight collect F.O.B. the TRILOGY facility.
- Page 21 THE TERMS OF THIS WARRANTY. . This Warranty is effective as of the date of TRILOGY receipt of full payment and supersedes all previous warranties. TRILOGY reserves the right to supplement or change the terms of this Warranty in any subsequent warranty offering to User or others.
