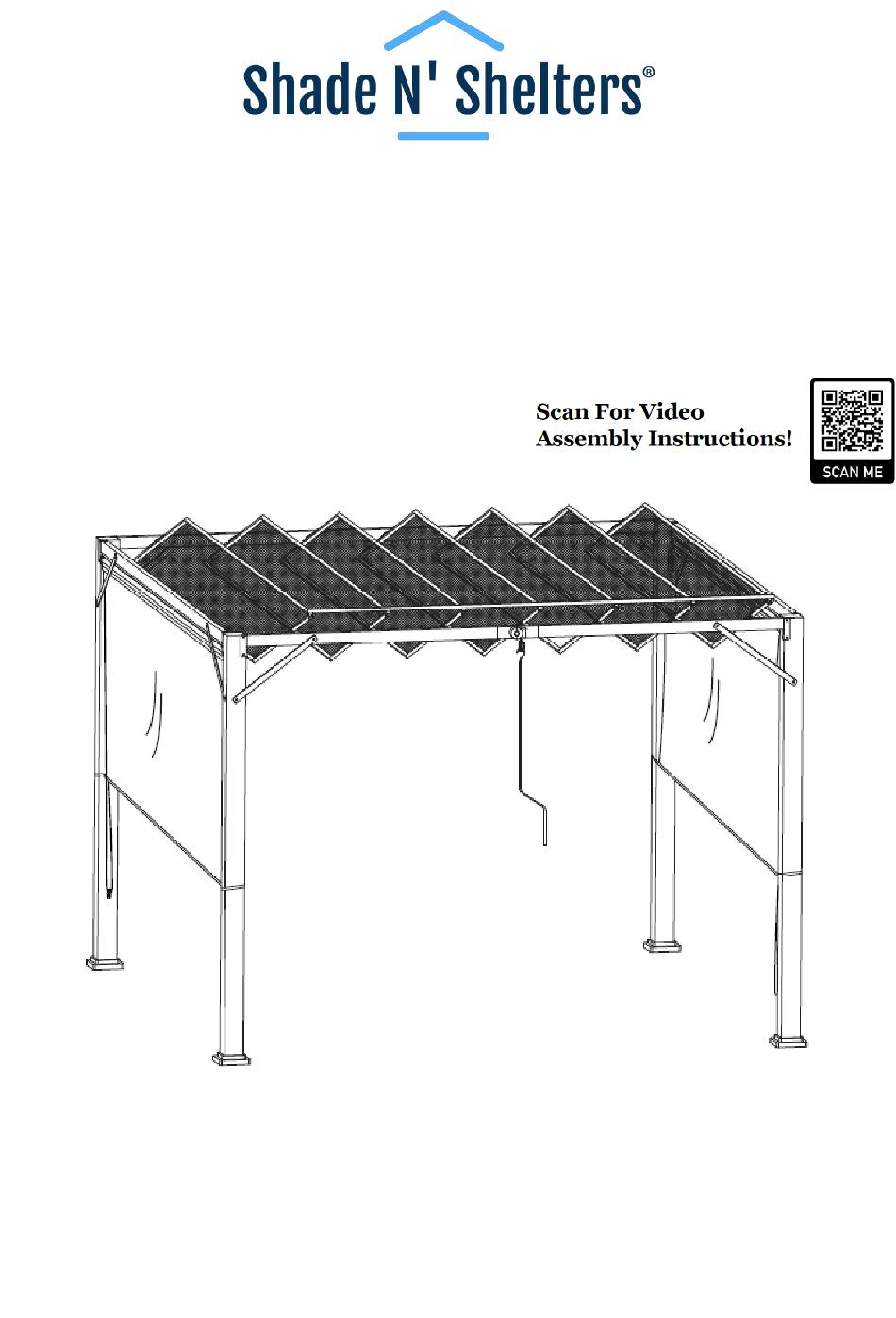

- Page 1 Owner’s Manual Brunson 10’ x 10’ Pergola Note: This pergola frame is designed to be used as a permanent fixture on level surface. 1 of 11...
-
Page 2: Parts List
Parts List Brunson 10’ x 10’ Pergola Letter Illustration Description Qty. Corner Post Corner Post Roof Panel Panel Connecting Rod Rotating Device Lintel w/Rotating Device Front Lintel Side Lintel Corner Post Brace Roof Adjustment Pole Base Plate 2 of 11... - Page 3 Letter Illustration Description Qty. Base Cover Roof Panel Connectors Rotating Device Connector Pull-Down Screen M6 x 15mm Bolt with Washer M6 x 75mm Bolt with Washer M6 x 15mm Bolt Self-Tapping Screw M6 Open Wrench Allen Wrench Allen Wrench Ground Stake 3 of 11...
- Page 4 Assembly Instructions Brunson 10’ x 10’ Pergola Note: For video instructions please visit: https://shadenshelters.com/10-x-10-brunson-pergola Important: ⚫ Read all the instructions before assembly. Failure to do so may result in faulty assembly and potential injury. Before assembling the product, remove all protective materials, hardware kit(s), and identify all ⚫...
- Page 5 Step 2: Attach Side Lintel (E) and Front Lintel (D and D1) to the Corner Posts (A1 & A2) using Bolt (M). See Figure 2. Note: Make sure the holes on the Front Lintel (D and D1) are facing inwards. Figure 2 5 of 11...
- Page 6 Step 3: Attach all Corner Post Braces (F) to the Corner Posts (A1 & A2) and the Lintels (D/D1/E) using Bolts (M). See Figure 3. Figure 3 Step 4: Attach Roof Panel Connectors (J) to the interior of the Front Lintel (D1) and Lintel with Rotating Device (D) using Bolts (O).
- Page 7 Step 5: Insert Rotating Device Connector (K) into the middle hole of Lintel with Rotating Device (D). See Figure 5. Figure 5 Step 6: Attach Roof Panels (B) to the Roof Panel Connectors (J) using Bolts (M). See Figure 6-1. Attach Rotating Device Connector (K) to Roof Panel (B) using Bolts (M).
- Page 8 Step 7: Connect the Panel Connecting Rod (C1) to each Roof Panel (B) using Bolts (O). See Figure 7. Figure 7 8 of 11...
- Page 9 Step 8: Attach Pull-Down Screen (L) to the Side Lintel (E) using Bolts (N). Repeat for opposite side. See Figure 8-1. Attached the plastic anchor on the Pull-Down Screen (L) to the Post (A1) by Self-Tapping Screw (P). See Figure 8.2. Figure 8-1 Figure 8-2 9 of 11...
- Page 10 Step 9: Secure Pull-Down Screen (L) to Corner Posts (A1 & A2). See Figure 9. Insert the Stake (T) into the ground through Base Plate (H) to fix the pergola. See Figure 10. Figure 10 Figure 9 Note: Please see our video for additional assembly assistance: https://shadenshelters.com/10-x-10-brunson-pergola 10 of 11...
-
Page 11: Warranty
Maintenance & Care Maintenance is required for all outdoor gazebo/pergola/pavilion. Inspect hardware thoroughly before use and during the season to make sure bolts are securely fastened. Remove fabric canopy from soft top gazebo and store out of the elements when not in use or during hazardous weather conditions (wind, rain, snow, etc.). Remove all snow from the hard top gazebo/pavilion.
