Summary of Contents for EMC HYCAL

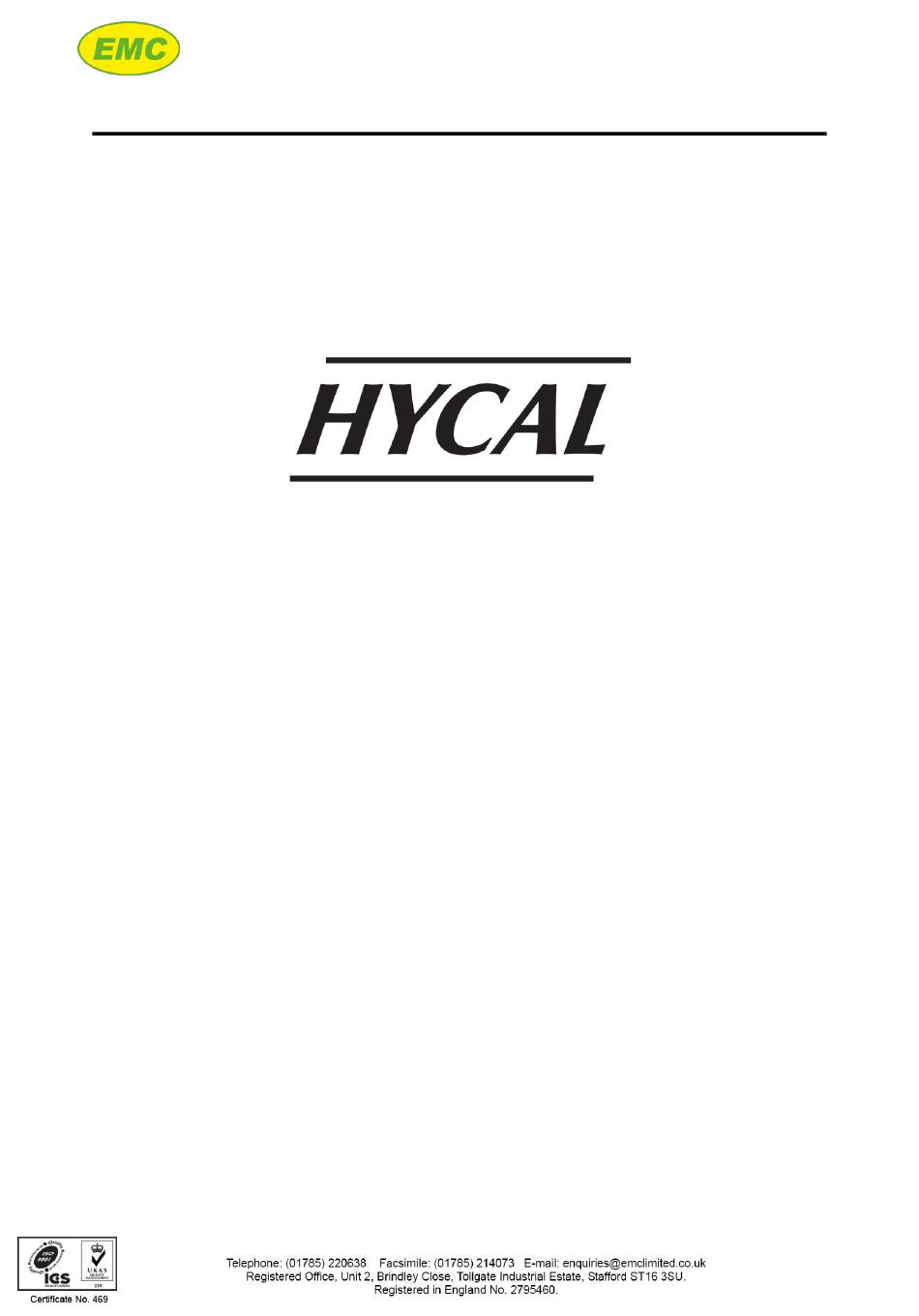

  • Page 1 Page 1 Hycal User Manual V2.5 User Manual V2.7...

  • Page 2: Table Of Contents

    Page 1 Hycal User Manual V2.5 Contents Declaration of Conformity ........................1 Introduction ..........................2 Hycal versions........................3 Post shipment checking procedure ..................3 1.2.1 Hycal ..........................3 1.2.2 Hycal 1000 ........................3 Working with Hycal......................4 Analyser setup ..........................5 Physical features........................5 2.1.1 Hycal analyser ......................5 2.1.2 Hycal 1000 analyser .....................8...
  • Page 3 Page 2 Hycal User Manual V2.5 3.4.2 Logging out ........................ 25 3.4.3 Changing the password ....................26 Main menu & navigation ....................26 Instrument settings ......................27 3.6.1 Alarm settings ......................27 3.6.2 Date and time ......................28 3.6.3 IP settings ........................28 3.6.4...
  • Page 4 3.10 High visibility mode ......................41 3.11 Alarms ..........................42 3.11.1 Alarm list screen ......................42 3.11.2 Hycal analyser alarms ....................44 3.12 Diagnostics ........................46 Measurement Procedure ......................47 Prerequisites ........................47 Procedure .......................... 47 Precautions ........................48 Use with a degasser ......................48 Guided Measurement mode .....................
  • Page 5 Page 4 Hycal User Manual V2.5 5.3.4 Step 4 - Enter Melt code .................... 55 5.3.5 Step 5 - Check probe calibration ................. 55 5.3.6 Step 6 - Prepare for measurement ................57 5.3.7 Step 7 - Measurement ....................57 5.3.8...
  • Page 6 Page 5 Hycal User Manual V2.5 Guided Calibration steps ....................73 7.4.1 Step 1 - Step 3 ......................73 7.4.2 Step 4 - Enter calibration gas composition..............73 7.4.3 Step 5 - Check probe calibration ................. 73 7.4.4 Step 6 - Prepare for measurement ................73 7.4.5...
  • Page 7 Page 6 Hycal User Manual V2.5 9.3.2 Export / Import ......................82 Transferring data ....................... 82 9.4.1 Import time ....................... 82 9.4.2 Network ........................83 9.4.3 USB ..........................83 9.4.4 Folder ........................83 Locating data ........................83 9.5.1 Guided Measurement data ..................84 9.5.2...

  • Page 8: Declaration Of Conformity

    Page 1 Hycal User Manual V2.7 Declaration of Conformity We, EMC Hycal Ltd., declare under our sole responsibility, that the Hycal Analyser, to which this declaration relates, is in accordance to the European EMC Directive 89/336/EEC, being compliant with the following: EN 50081-2:1993 Electromagnetic Compatibility Generic Emission Standard.

  • Page 9: Introduction

    The gas system may also be used to perform in-situ calibration checking of the probe. The Hycal analyser is a designed for maximum portability and ease of use on the shop floor. A folding mechanical arm allows easy positioning of the probe, and the analyser's internal rechargeable battery provides 8-14 hours of continuous use .

  • Page 10: Hycal Versions

    Please note that Hycal probes are not included with the Hycal analyser and must be ordered separately. 1.2.1 Hycal The components supplied with a Hycal kit are listed below. Please use this list to check the shipment has arrived intact. Item...

  • Page 11: Working With Hycal

    3.7. However, in a production situation it may be necessary to ensure that the operator enters all data correctly. For this reason, the Hycal includes several "Guided" measurement modes, which guide the operator through the measurement...

  • Page 12: Analyser Setup

    Hycal User Manual V2.7 2 Analyser setup 2.1 Physical features 2.1.1 Hycal analyser Handle Folding arm Probe clamp Touch screen display / user interface Probe socket Security keys (gas door and maintenance door) Protective screen cover Status LEDs Figure 1: Hycal analyser front...
  • Page 13 Figure 2: Status LEDs Gas purge On / Off Data logger On / Off Heater On / Off Wireless relay (optional) antenna cover Ethernet socket USB socket On / off switch DC power socket Figure 3: Hycal analyser electrical panel...
  • Page 14 Page 7 Hycal User Manual V2.7 Gas selector Gas service panel valve Cylinder pressure Fill valve indicator Low Pressure (LP) High Pressure inlet (HP) inlet Figure 4: Gas panel Reset switch Gas purge USB service socket valve Figure 5: Service door opened...

  • Page 15: Hycal 1000 Analyser

    Page 8 Hycal User Manual V2.7 2.1.2 Hycal 1000 analyser Touch screen display / user interface Status LEDs Security key on / off switch Figure 6: Hycal 1000 analyser...
  • Page 16 Page 9 Hycal User Manual V2.7 Probe socket Signal socket 1 Signal socket 2 Ethernet socket USB socket Mains power isolator Mains power inlet gland Figure 7: Hycal 1000 analyser electrical panel...
  • Page 17 Page 10 Hycal User Manual V2.7 Gas purge valve Gas selector valve Cylinder pressure indicator Fill valve Low Pressure (LP) High Pressure inlet (HP) inlet Figure 8: Hycal 1000 analyser gas panel...

  • Page 18: Hycal Probe

    Page 11 Hycal User Manual V2.7 2.1.3 Hycal probe 2.1.3.1 Probe components...

  • Page 19: Filling The Gas Cylinder

    Page 12 Hycal User Manual V2.7 2.1.3.2 Probe length The overall length of the standard Hycal probe is 800mm; other lengths are available, see Table 1. Table 1: Hycal probe part numbers 2.2 Filling the gas cylinder 2.2.1 Prerequisites The following are required to fill the Hycal analyser's internal cylinder: 1.
  • Page 20 Page 13 Hycal User Manual V2.7 1. Connect regulator to gas bottle: 2. Turn white dial anti-clockwise to reduce outlet pressure setting to zero.
  • Page 21 Page 14 Hycal User Manual V2.7 3. Open gas cylinder valve: 4. The inlet pressure should be 100+ bar and outlet should be zero on gauge: 5. Close isolation valve:...
  • Page 22 Page 15 Hycal User Manual V2.7 6. Turn white dial on regulator clockwise until the outlet pressure reaches 50 bar (725 psi) 7. Take QC4 quick-connect end and support whilst adjusting the 3-way valve: 8. Ensure 3-way valve is pointing towards the regulator (this will fill the pipe up with nitrogen):...
  • Page 23 11. Repeat step 9 and 10 (3 times) to completely displace trapped air from the system. 12. Finally, leave the 3-way valve pointing away from the regulator. 13. Insert the quick-connect fitting into the HP socket into the Hycal (push firmly until the connector clicks into position such that it cannot come back out again):...
  • Page 24 Page 17 Hycal User Manual V2.7 14. Turn the 3-way valve to point to the regulator, ensuring that the isolation valve is still in the open position (showing green): 15. Open the ‘HP fill valve’ on the Hycal by turning anti-clockwise:...
  • Page 25 Page 18 Hycal User Manual V2.7 16. Turn white dial on regulator clockwise to increase the pressure: 17. Increase pressure until gauge on the Hycal reaches 100-110 bar: 18. Close HP Fill Valve (turn clockwise) on Hycal:...
  • Page 26 Page 19 Hycal User Manual V2.7 19. Close the cylinder valve: 20. WARNING – AT THIS STAGE, THE PIPE IS STILL PRESSURISED TO 100+ BAR AND MUST BE DE- PRESSURISED BEFORE REMOVAL! 21. Turn white dial anti-clockwise fully to reduce outlet pressure to zero on regulator:...
  • Page 27 Page 20 Hycal User Manual V2.7 22. Slowly turn 3-way valve away from regulator to vent the pressure in the pipe to atmosphere: 23. Turn 3-way valve towards regulator to allow the excess pressure to enter the pipe again: 24. IMPORTANT: REPEAT STEP 23-24 SEVERAL TIMES UNTIL NO GAS IS VENTED AT STEP 23 - THIS ENSURES THE PIPE IS SAFE TO REMOVE FROM ANALYSER.
  • Page 28 Page 21 Hycal User Manual V2.7 26. Remove fill-pipe: 27. The Hycal can now be used, and the regulator may be disconnected from the gas cylinder:...

  • Page 29: Connecting An External Gas Line

    2. The purge valve. This may be used to manually empty the internal gas cylinder. 3. Reset switch. This is used to reset the Hycal's data acquisition unit (if advised to do so by EMC during service operations).

  • Page 30: Analyser Operation

    3 Analyser operation 3.1 Power requirements The Hycal analyser can operate from its internal battery or from a mains voltage source using the included DC power supply unit. The battery provides 8 - 14 hours of continuous running time, depending on screen brightness settings. The DC power supply unit is suitable for use with all AC voltages between 85 and 265 V RMS (47 to 63 Hz).

  • Page 31: Security

    Can start a Guided Measurement. Can view / change analyser settings. Additional diagnostic information is shown on some screens. Service EMC internal procedures such as instrument Used for calibration (EMC use only). Table 3: Hycal analyser security levels & default passwords...

  • Page 32: Logging Out

    Page 25 Hycal User Manual V2.7 • To log in, first lift the protective screen cover and press the padlock symbol. The "Login" screen will appear (Figure 11). • Press the down arrow next to "User", then select the required access level e.g. "Engineering"...

  • Page 33: Changing The Password

    3.5 Main menu & navigation The "Main menu" provides access to many of the Hycal analyser's features. It may be shown by pressing the icon in the bottom right corner of the screen. To hide the main menu, either press "Close"...

  • Page 34: Instrument Settings

    After logging in, press the “Main menu” button in the bottom right hand corner of the screen, then press "Settings". Figure 13: Settings screen 3.6.1 Alarm settings Allows viewing / changing of the Hycal's hydrogen alarm facility, and parameters for RDU control (see section 6): • Alarm on or off •...

  • Page 35: Date And Time

    Page 28 Hycal User Manual V2.7 Figure 14: RDU alarm settings 3.6.2 Date and time The date and time are displayed in the top right-hand corner of the analyser screen. To change, select "Date & Time" from the "Settings" menu and adjust using the on-screen controls (Figure 15).

  • Page 36: Backlight Settings

    Page 29 Hycal User Manual V2.7 • Press "Specify an IP address" then enter the desired IP address, subnet mask, and default gateway using the on-screen keypad. Pres s "OK" to confirm • Switch the analyser off then back on Figure 16: IP settings 3.6.4 Backlight settings...

  • Page 37: Guided Calibration Settings

    Settings concerning Guided Calibration, see section 7. 3.6.6 Stabilisation parameter settings When immersing the Hycal probe into molten aluminium, the probe must reach temperature and hydrogen equilibrium before it can measure accurately. The Hycal analyser includes a stabilisation algorithm to detect if measurement conditions have stabilised. When a stable reading is detected, a circular green marker appears next to the displayed hydrogen value to indicate stability.

  • Page 38: Change Language

    Page 31 Hycal User Manual V2.7 (i) Difference between maximum and minimum temperature is less than or equal to stabilisation parameter X [C] (ii) Difference between maximum and minimum hydrogen is less than or equal to stabilisation parameter Y [ml/100g] Figure 18: Stabilisation parameters The time between readings is 2 seconds therefore if "Number of readings"...

  • Page 39: Temperature Units

    If measurement security is turned on then the user cannot start a Guided Measurement unless they are logged in as Operator or Engineering (set to ON by default). 3.6.13 Upgrade DAQ firmware Allows upgrade of the Hycal's data acquisition unit firmware by USB memory stick. See section 8.2.2. 3.6.14 Load alloys...

  • Page 40: Purge Time

    Figure 20: Load alloys screen 3.6.15 Purge time Press the number next to "Purge time:" to adjust the duration of the Hycal analyser's gas purge cycle. Use the on-screen keypad to enter the desired purge time (in seconds) then press the "Return" key in...

  • Page 41: Measurement Settings

    Two alloy calibration values are required (C and D) which depend on the chemistry of the melt. The Hycal analyser contains a library with the calibration constants of up to 100 alloys, divided into 5 groups of 20 alloys. To change the alloy, either press the alloy text or press "Main menu" then "Alloy".

  • Page 42: Probe Calibration

    Hycal User Manual V2.7 3.7.2 Probe calibration The hydrogen measurement cell inside each Hycal probe is individually calibrated in a furnace containing a known partial pressure of hydrogen over a range of temperature. This procedure produces 4 calibration constants which are supplied with each Hycal probe: (i) A and B.

  • Page 43: Worker

    Page 36 Hycal User Manual V2.7 3.7.3 Worker To specify which operator or "Worker” is conducting the hydrogen measurements, press "Worker" at the top of the screen to show the "Worker" selection screen (Figure 23) then select the worker. This is recorded by the data logger when the logger is on.

  • Page 44: Lot Number

    Page 37 Hycal User Manual V2.7 3.7.5 Lot number A lot number is logged with each measurement by the data logger. The melt code appears on the following screens: 1. Data logger 2. Real-time chart 3. Diagnostics 4. Guided Measurement To enter a new Lot number, press the text "Lot No"...

  • Page 45: Data Logger

    2 hours 1.00 ml/100g Table 5: Time and hydrogen scale options 3.9 Data logger The Hycal analyser has a built-in high capacity data logger which records the variables listed in Table 6 every 10 seconds. Logged variables Instrument No. Constant Z750...

  • Page 46: Data Logger Chart

    Page 39 Hycal User Manual V2.7 The data logger does not start automatically and is off by default when the analyser starts up. To start or stop the data logger either press the "Data logger" icon on the right hand side of the screen or press the middle button on the side of the analyser (see Figure 3).
  • Page 47 3.9.1.2.1 USB export Insert a USB memory stick into the USB port on the side panel of the Hycal analyser as shown on Figure 3 then press "Export USB". The analyser will export the database then copy it to the USB memory stick.

  • Page 48: High Visibility Mode

    Figure 27: Data logger export 3.10 High visibility mode The Hycal analyser includes a high visibility mode to maximise readability of the hydrogen and temperature readings from extended distances (see Figure 28). To enter high visibility mode, press "Main menu" in the bottom right then press "Big display". To exit, press the "Exit" button in the top...

  • Page 49: Alarms

    Figure 28: High visibility mode 3.11 Alarms The Hycal analyser is equipped with sophisticated On-Board Diagnostic (OBD) hardware and algorithms which continuously check that the probe and analyser are operating properly. If the analyser detects a problem, then this will trigger an alarm event (see Figure 29): 1.
  • Page 50 Page 43 Hycal User Manual V2.7 will disappear. If the cause of the alarm is resolved, it will not be filled but will remain on the alarm list. Figure 29: Alarm event Figure 30: Alarm list screen...

  • Page 51: Hycal Analyser Alarms

    Page 44 Hycal User Manual V2.7 3.11.2 Hycal analyser alarms Table 7 lists all Hycal analyser alarms. Message Purge gas flow is too low! Alarm code: Possible reason(s): Probe cable not properly connected to analyser Probe is blocked (e.g. flux / condensed volatiles etc.).
  • Page 52 Message Data logger nearly full! Alarm code: Possible reason(s): Data logger memory is nearly full. Action(s): Download data to PC using Hycal PC software. Delete data logger (Settings screen). Message Data logger memory full! Alarm code: Possible reason(s): Data logger memory (5 days continuous measurement) is full. Data cannot be recorded until memory has been cleared.

  • Page 53: Diagnostics

    The Diagnostics screen shows a "pH2" reading; this is the partial pressure of hydrogen measured by the hydrogen cell inside the Hycal probe in units of atmospheres. This is valuable when checking hydrogen cell accuracy when purging with a calibration gas of known hydrogen partial pressure.

  • Page 54: Measurement Procedure

    2. Position the arm appropriately over the melt. 3. Insert a Hycal probe into the arm's probe clamp. Slide the probe vertically so that it is 10- 20cm above the melt and tighten the arm's probe clamp to secure the probe.

  • Page 55: Precautions

    5 Guided Measurement mode Guided Measurement is a special mode that guides the operator through the measurement setup procedure prompting for all necessary information. The Hycal then automatically performs all necessary measurement preparation steps (purge cycles, delays etc.), conducts a pre-defined number of measurement analyses, and records the data.

  • Page 56: Guided Measurement Settings

    Default = 1 minute. Sets the measurement analysis time. 5.2.3 Measurement cycles Default = 1 cycle. Sets the number of measurement cycles. If set to >1 the Hycal will automatically repeat the measurement for the number of cycles set here (see Figure 32).

  • Page 57: Extra Purge

    However, in some cases different probes will be assigned individual measuring stations and it is not convenient to re-enter the probe calibration constants when moving the Hycal analyser to a different station. Setting the probe calibration mode to "Stations" allows the engineer to enter the probe calibration constants for each station in advance, so that operator simply needs to select the correct station before making a measurement.
  • Page 58 Page 51 Hycal User Manual V2.7 Figure 35: Guided Measurement Probe calibration setting Up to 4 stations may be configured, by pressing the "Configure stations" button. Each station is set to active or inactive and is given an ID, and a set of probe data as shown in Figure 36.

  • Page 59: Alloy Specification

    Page 52 Hycal User Manual V2.7 5.2.7 Alloy specification This setting (off by default) allows a top and bottom hydrogen limit to be specified. Figure 37: Guided Measurement alloy specification settings 5.3 Guided measurement steps 5.3.1 Step 1 - Select worker The user must select one of the displayed workers before proceeding or alternatively can cancel the measurement by pressing the "Close"...
  • Page 60 Page 53 Hycal User Manual V2.7 Figure 38: Step 1 - Select worker (before selection) Figure 39: Step 1 - Select worker (after selection)

  • Page 61: Step 2 - Enter Lot Number

    Page 54 Hycal User Manual V2.7 5.3.2 Step 2 - Enter Lot number The user must press the Lot Number field then either: 1. Type in a new lot number (maximum 10 alpha numeric characters) then press Enter (circled in red on Figure 40) 2.

  • Page 62: Step 4 - Enter Melt Code

    Page 55 Hycal User Manual V2.7 Figure 41: Step 4 - Select alloy 5.3.4 Step 4 - Enter Melt code Similar to the Lot number screen, the user must press the Melt code field then either: 1. Type in a new melt code (maximum 10 alpha numeric characters) then press Enter 2.
  • Page 63 Page 56 Hycal User Manual V2.7 Figure 42: Probe calibration screen: "Normal" mode If probe calibration is set to "Stations" (see section 5.2.6) then the user should press the relevant station button as per Figure 43. Figure 43: Probe calibration screen: "Stations" mode...

  • Page 64: Step 6 - Prepare For Measurement

    Page 57 Hycal User Manual V2.7 5.3.6 Step 6 - Prepare for measurement At this stage all the required information has been entered. The user can still press the Back button and make corrections if necessary. The messages displayed will depend on the probe status as shown on Table 9.

  • Page 65: Step 8 - Measurement Complete

    Page 58 Hycal User Manual V2.7 Feature Detail Measurement Current measurement number and total measurements to be performed are shown at number the top of the screen. Status text Status text at the top of the screen informs the operator about which measurement stage is in progress (e.g.
  • Page 66 Page 59 Hycal User Manual V2.7 Figure 45: Measurement complete screen Figure 46: Measurement complete screen with alloy specification option enabled (in specification)

  • Page 67: Step 9 - Exit Measurement

    "Cancel". 5.4 Data archiving A Guided Measurement may be located and viewed using the Hycal PC software as follows. 1. Import Hycal data into the PC software (section 9.4) 2. Click "Browse All"...
  • Page 68 Page 61 Hycal User Manual V2.7 Figure 48: Guided Measurement data archiving...

  • Page 69: Hydrogen Control

    When the hydrogen level is at the required level, the Hycal sends a signal (relay contact closure) to the RDU to stop the degassing process. Controlling hydrogen in this manner improves quality control, reduces scrap and yields significant gas savings.

  • Page 70: Guided Degassing Mode

    Table 11: Hydrogen alarm behaviour 6.4 Guided Degassing mode Guided Degassing mode guides the operator through the measurement setup procedure for a Hycal controlled melt degassing treatment. Similar to Guided Measurement, the Hycal first prompts the operator to enter all necessary information. It then monitors the degassing process until the desired...

  • Page 71: Guided Degassing Sequence

    Page 64 Hycal User Manual V2.7 also measured the hydrogen level before and after degassing. Data is automatically saved to the data logger. 6.4.1 Guided Degassing sequence The Guided Degassing event sequence is shown on Figure 50. Figure 50:Guided Degassing event sequence 6.4.2 Guided Degassing settings...
  • Page 72 Page 65 Hycal User Manual V2.7 Figure 51: Guided degassing settings 6.4.2.2 Analysis time Default = 1 minute. Sets the measurement analysis time for both pre and post-degassing hydrogen measurements. 6.4.2.3 Extra purge See section 5.2.4. 6.4.2.4 Measurement delay See section 5.2.5. Different measurement delay times may be specified before and after degassing.

  • Page 73: Guided Degassing Measurement Steps

    Page 66 Hycal User Manual V2.7 Figure 52:Minimum degassing time 6.4.3 Guided Degassing measurement steps 6.4.3.1 Step 1 - Step 5 These steps are identical to Guided Measurement, see sections 5.3.1 to 5.3.5. 6.4.3.2 Step 6 - Prepare for measurement At this stage all the required information has been entered.
  • Page 74 When the alarm is active, a yellow light bulb indicator appears in the top right of the screen, see Figure 55. The Hycal will then check for measurement stabilisation before performing the post-degassing hydrogen measurement.
  • Page 75 Page 68 Hycal User Manual V2.7 Figure 55: Guided Degassing alarm active 6.4.3.4 Step 8 - Measurement complete After the post-degassing measurement analysis time has completed, the analyser determines and displays the Guided Degassing results together with a summary of the measurement settings as shown on Figure 56.

  • Page 76: Data Archiving

    Hycal User Manual V2.7 Figure 56: Guided Degassing measurement complete 6.4.4 Data archiving Guided Degassing results may be located and viewed using the Hycal PC software as follows. 1. Import Hycal data into the PC software (section 9.4) 2. Click "Browse All"...
  • Page 77 Page 70 Hycal User Manual V2.7 Figure 57: Guided Calibration data archiving...

  • Page 78: Guided Calibration

    Hycal measurement precision is ensured through a purge system which prevents blockage and oxide build up. The gas system may also be used to perform an in-situ calibration check of the Hycal probe, by purging the probe with a calibration gas of known hydrogen concentration. Guided Calibration mode guides the operator through the calibration procedure, conducts a calibration test, then displays a pass / fail test result.

  • Page 79: Analysis Time

    2. Fill the internal cylinder with calibration gas (section 2.2) 3. Ensure that the Hycal is set to "HP cylinder" 4. Set the purge time to 30 seconds 5. At room temperature (probe not immersed in the melt), connect the probe to the Hycal and press the purge button...

  • Page 80: Low Pressure Inlet

    Table 9. 7.4.5 Step 7 - Measurement After performing a purge, the Hycal will deliver the calibration gas to the probe at low pressure and display the theoretical hydrogen level on the measurement screen (Figure 60). After detecting measurement stabilisation, the results will be measured and analysed.

  • Page 81: Step 8 - Measurement Complete

    7.4.6 Step 8 - Measurement complete The Hycal calculates the Guided Calibration results and displays them as shown on Figure 61. After all data has been saved by the data logger, the "Close" button will appear in the top right of the screen.

  • Page 82: Step 9 - Exit Measurement

    "Cancel". 7.5 Data archiving Guided Calibration results may be located and viewed using the Hycal PC software as follows. 1. Import Hycal data into the PC software (section 9.4) 2. Click "Browse All"...

  • Page 83: Service & Maintenance

    8.1.2 Touch screen recalibration Select "Touch Calibrate" and follow the on-screen instructions to perform the calibration. When complete, touch the screen again to return to the Service Menu. To finish, switch the Hycal analyser off then back on again. 8.2 Software / firmware upgrade...
  • Page 84 Page 77 Hycal User Manual V2.7 Figure 63: Software folder 3. The PC will ask "Are you sure you want to copy this folder [or file] without its properties?", tick "Do this for all current items" then "Yes" (see Figure 64).
  • Page 85 Press on the screen to ensure that the screen saver is off c. Wait 30 seconds d. Turn the Hycal off 6. Put the USB stick into the Hycal's external USB port (next to the Ethernet port) 7. Turn the Hycal on 8. If necessary, enter the service menu password (100) 9.

  • Page 86: Upgrade Daq Firmware

    Table 12: Parameter defaults after software update 8.2.2 Upgrade DAQ firmware The Hycal analyser comprises a display unit, which provides the user interface, and a data acquisition unit (DAQ) which interfaces with the probe and internal hardware. Should a firmware upgrade of the DAQ be required, proceed as follows: 9.

  • Page 87: Calibration

    3. Remote viewer for remote viewing and control of the Hycal analyser over Ethernet The Hycal data file is in an unprotected CSV format so, in addition to importing to the PC software, the data file may be opened directly by a spreadsheet program e.g. Excel. Each row of data contains a validation code that is checked by the PC software on import to prevent unauthorised data modification.

  • Page 88: Installation

    Page 81 Hycal User Manual V2.7 The Hycal PC software requires a PC running Windows 7, Windows 8, or Windows 8.1 (32 bit or 64 bit). 9.1.2 Installation 1. Ensure the PC user is logged on as Administrator 2. Run the installer provided by EMC Limited 3.

  • Page 89: Home Screen

    Transferring data from the Hycal to the PC takes approximately 20 seconds per hour of data logged. Therefore, if the Hycal is left recording for a full 8 hour shift this will take just under 3 minutes to import in to the PC software. If the Hycal's memory is completely full (125 hours = 5.2 days of...

  • Page 90: Network

    Hycal IP address b. Username = Engineering c. Password = 100 4. The PC software will trigger data log file export on the Hycal analyser, copy the log file, then transfer the log entries into the PC database. 9.4.3 USB 1.

  • Page 91: Guided Measurement Data

    Page 84 Hycal User Manual V2.7 2. "Guided Measurement data" are final readings logged automatically by the Hycal analyser on completion of a Guided Measurement cycle. See section 0 for more details about Guided Measurement mode. 9.5.1 Guided Measurement data All three search options (melt code, date and time, browse all) share the same options for displaying or hiding Guided Measurement data.

  • Page 92: Date / Time Search

    Page 85 Hycal User Manual V2.7 9.5.3 Date / Time search 1. Click the "Date / Time" search button 2. Select a specific date using the drop-down menus for day, month, year. 3. Select the required Guided Measurement display option using the radio buttons, according to Table 14.
  • Page 93 Page 86 Hycal User Manual V2.7 Figure 67: Chart view The chart time base is adjusted using the time scale settings in the bottom right hand corner of the chart view screen. Use the horizontal scroll bar at the bottom of the chart to scroll to the previous / next data set.

  • Page 94: Spreadsheet View

    Home screen (Figure 66), or click "View", "Remote Viewer". When prompted enter the Hycal's IP address and click "OK" to confirm the "Remote viewer starting message". The viewer will connect to the Hycal analyser and then prompt...

  • Page 95: Connection Options

    Hycal User Manual V2.7 appear on the PC and the Hycal analyser can be controlled in the same way as would be done locally. The remote viewer shows an exact copy of what is on the actual Hycal analyser display. Somebody local to the Hycal analyser can seen what is being done remotely and vice versa.

  • Page 96: Appendix A - Alloy Constants

    Page 89 Hycal User Manual V2.7 10 APPENDIX A – ALLOY CONSTANTS Europe DIN EN 1676 Germany France Japan Numeric Chemical BS1490 1725/6 C.T.I.F AA/ASTM Pure Al 2692 1.726 Al 99,5 LM 0 150.1 2692 1.700 21000 AlCu4MgTi 3.1372 A-5UGT 204.2...
  • Page 97 Page 90 Hycal User Manual V2.7 Europe DIN EN 1676 Germany France Japan Numeric Chemical BS1490 1725/6 C.T.I.F AA/ASTM AlSi17Cu4Mg LM 30 2692 1.405 AlSi191CuMgNi LM 28 A-S18UNG 393.2 2692 1.544 AlSi23CuMgNi LM 29 2692 1.562 51000 AlMg3(b) 2692 1.900...

  • Page 98: Appendix B - Comms Settings

    Page 91 Hycal User Manual V2.7 11 APPENDIX B - COMMS SETTINGS The Hycal can communicate with a SCADA system over Ethernet using the Modbus TCP protocol: Hycal Modbus slave ID = 2 Addressing: 0 based Data format = Big Endian (Motorola) Selected register numbers and data format are listed on Table 15.

  • Page 99: Appendix C - Specifications

    Page 92 Hycal User Manual V2.7 12 APPENDIX C – SPECIFICATIONS Variant: Hycal Hycal 1000 Dimensions (excl. arm): 340 (W) x 266 (H) x 223 (D) mm 430 (W) x 400 (H) x 210 (D) mm Weight: 8 kg 18 kg...
