Summary of Contents for Apec Water ROCT-PLUS

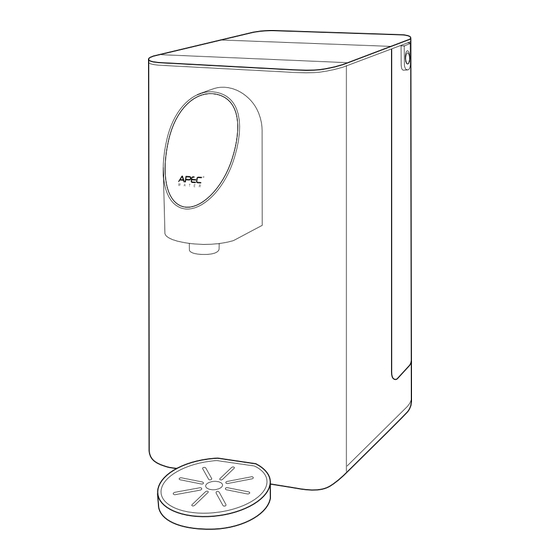

- Page 1 INSTALLATION & OPERATING MANUAL Ver 1.0 ROCT-PLUS CO U N T E R TO P REVERSE OSMOSIS DISPENSER Read the Operating Manual carefully before using the product. Keep the Operating Manual properly for future reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Things You Must Know ..................page 1 Safety Precautions ....................page 1 Parts List ........................ page 2 Product Specifications ..................page 3 Product Design Control Panel Display Screen Filtration Performance Specifications First Use Instruction .................... page 4 Operation and Setting .................. -
Page 4: Things You Must Know
• Before use, please confirm that the applicable voltage of the dispenser is consistent with the actual voltage used by users. • This dispenser is designed for home use. Please contact APEC Water for use in other applications. • Do not use this system under the following situations: a.) When you find the dispenser is damaged... -
Page 5: Parts List
• Ensure the plug is inserted into the socket completely to avoid hazard and prevent damage to the dispenser. • Do not pull the power cord with force when removing the plug. CAUTION • Handle with care during transportation to avoid scratching or damaging to the product. •... -
Page 6: Product Specifications
PRODUCT SPECIFICATIONS PRODUCT DESIGN Tank Cover Dispenser Top Cover Control Panel RO Filter Display Screen Feed Water Tank Water Tray CONTROL PANEL CUSTOMIZE 203 °F 113 °F ROOM TEMP 8 OZ Water temperature keys 8 OZ water volume key Child-lock key Water dispensing key DISPLAY SCREEN UV Light... -
Page 7: Filtration Performance
FILTRATION PERFORMANCE FILTER FILTRATION PERFORMANCE The membrane filter cartridge is 0.0001 micron rated which is de- Composite reverse osmosis signed to remove dust, particles, rust, chlorine, taste, odors, cloudi- filter cartridge ness, colors, VOCs, other chemicals, heavy metals, fluoride, bacteria, viruses and more. -
Page 8: Operation And Setting
Power on the system. It will automatically flush for 5 minutes with the screen displaying a dynamic clockwise loop System starts producing purified water with the screen displaying a countdown of 99 seconds. When the water quality indicator blinks, press the water dispensing key to dispense water (not drinkable). -
Page 9: Child-Lock Function
3. Press key to confirm, or the setting will be saved automatically if no operation after 10 seconds. 4. Refer to the table below to adjust temperatures. ALTITUDE RANGE(FOOT) MAXIMUM HEATING TEMPERATURE < 4500ft 203°F 4501 - 6500ft 199°F 6501 - 8500ft 196°F 8501 - 12500ft 190°F... -
Page 10: Filter Replacement And Reset
FILTER REPLACEMENT AND RESET Open Close 1. Open the top cover and rotate the filter counterclockwise to the open position (Open), and take out the old filter. 2. Install the new filter and rotate it clockwise to the close position (Close). 3. -
Page 11: Troubleshooting
Reconnect the power adapter and reset. tion Temperature sensor failure Reconnect the power adapter and reset. Recommend contacting APEC Water for assis- Communication failure tance. Factory reset • After the dispenser is powered on, immediately long press the water temperature customize key... - Page 12 Notes: Please contact APEC customer service for support if the issue persists after following the solution steps. Do not disassemble and attempt to repair the dispenser by yourself to prevent further damage. The following situations are normal 1. When dispensing hot water, there will be a slight sound indicating water is being produced and heat- 2.
-
Page 13: Warranty
LIMITED PRODUCT WARRANTY Scope APEC takes pride in selling a superb line of products, including this countertop reverse osmosis system (“Product”). As such, APEC expressly warrants to the original purchaser that, for a period of one (1) year from the date of purchase, the Product will be reasonably free of defects in materials and workmanship. - Page 14 4. Damage not resulting from manufacturing defects that occur while the Product is in the original purchaser’s possession. 5. Installation of the Product with known or visible manufacturing defects at the time of installation. 6. Damage caused by freezing, flood, fire or Act of God. CONDITIONS THAT RENDER THIS LIMITED PRODUCT WARRANTY VOID THIS LIMITED PRODUCT WARRANTY DOES NOT COVER DEFECTS CAUSED BY: 1.
- Page 16 www.FreeDrinkingWater.com 301 Brea Canyon Road City of Industry, CA 91789 1-800-880-4808...
