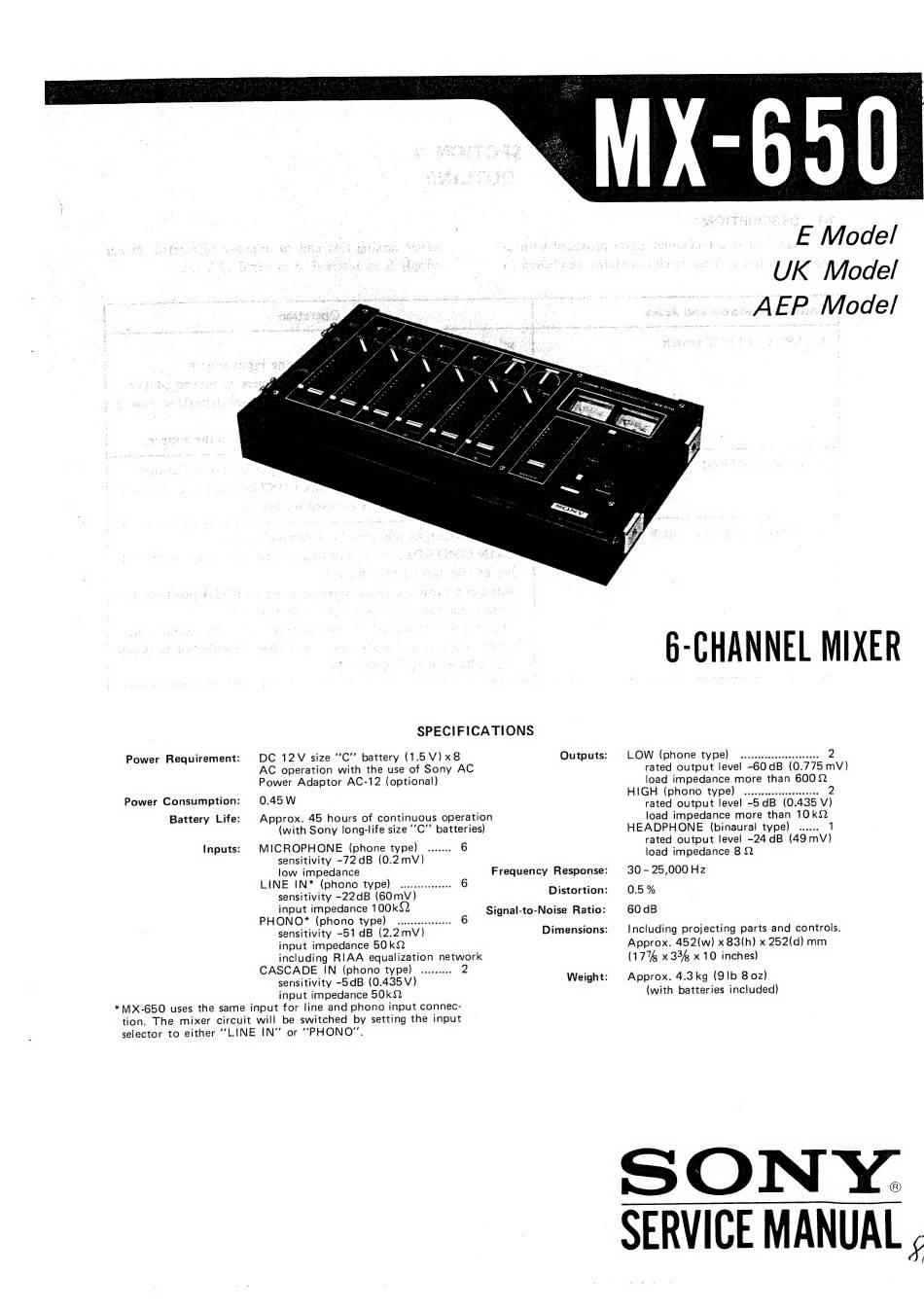

Sony MX-650 Service Manual

* 40,
On
SPECIFICATIONS
AC operation with the use of Sony AC
Power Adaptor AC-12 (optional)
Power Consumption: 0.45 W
Battery Life: Approx. 45 hours of continuous operation
(with Sony long-life size ''C'' batteries)
Inputs: MICROPHONE (phone type) ....... 6
sensitivity -72dB (0.2mvV)
— E Model
UK Model
ve on A ER. Moael
6-CHANNEL MIXER
LOW (phone type) .......sssecceeeeseeees 2
rated output level -60 dB (0.775 mV)
load impedance more than 600 £2
HIGH (phono type) .....c.cscceseeceeeeee 2
rated output level -5 dB (0.435 V)
load impedance more than 10kQ
HEADPHONE (binaural type) ...... 1
rated output level -24dB (49mV)
load impedance 8 {2
low impedance Frequency Response: 30 - 25,000 Hz
LINE IN* (phono type) ...........06- ; rae
sensitivity -22dB (60mV) Distortion: 0.5 %
input impedance 100k&2 Signal-to-Noise Ratio: | 60dB
PHONO*
(phono type) ..........eeeee
6
a
sensitivity -51dB (2.2mvV)
Dimensions:
— Including projecting parts and controls.
input impedance 50k22
including RIAA equalization network
CASCADE IN (phono type) .........
input impedance 50k2
*MX-650
uses the same
input for line and phono input connec-
tion. The mixer circuit will be switched
by setting the input
selector to either "LINE IN' or "'"PHONO".
Approx. 452(w) x 83(h) x 252(d) mm
(177% x 334 x 10 inches)
Approx. 4.3 kg (9!b 8 02z)
(with batteries included)
®
'SERVICE MANUAL ,
