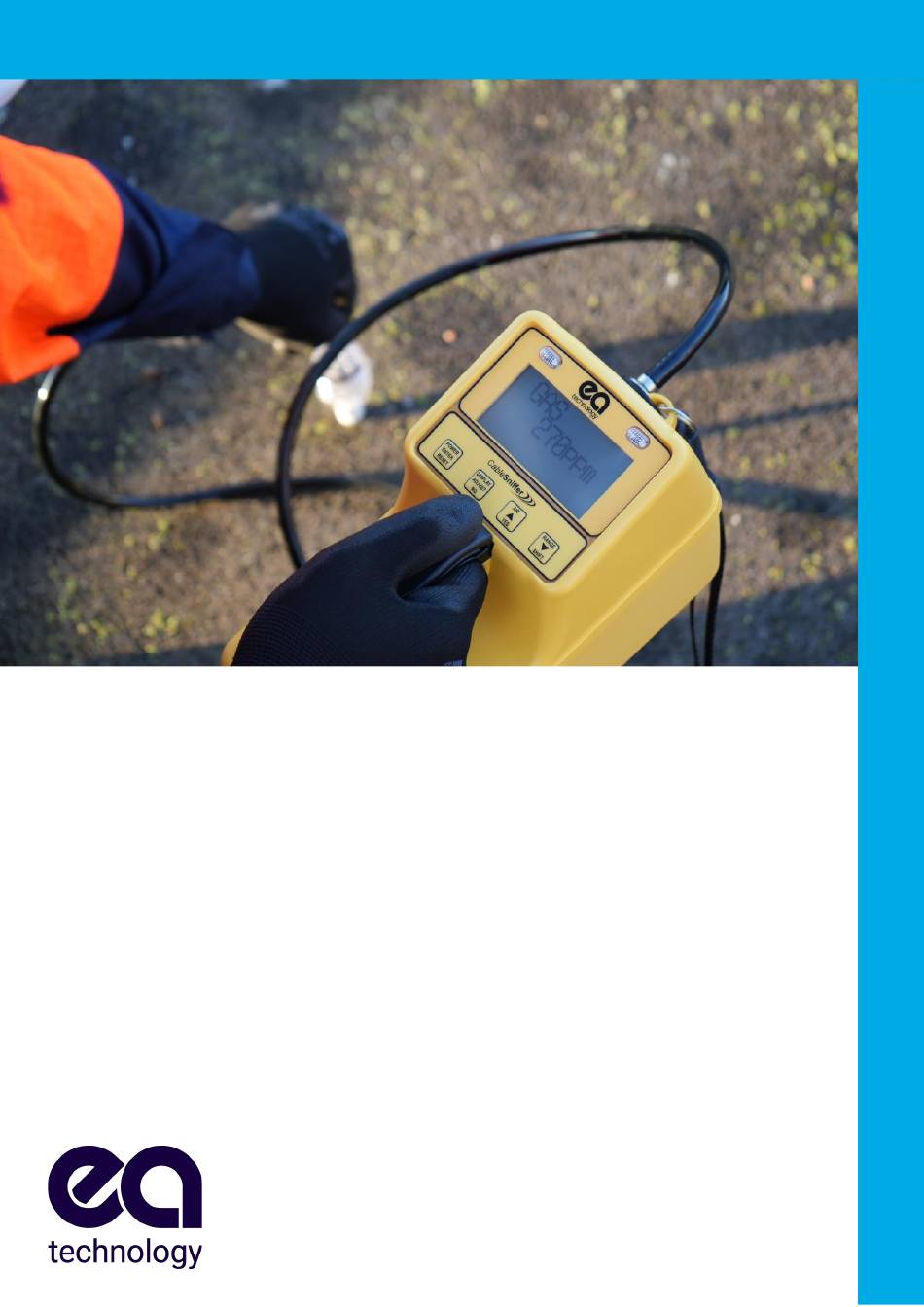

- Page 1 CableSniffer Operating Manual Model No: CS2, CS-DE, CS-SB Document Version: V03.02.00 Date: 4 March 2024...
- Page 2 © EA Technology Ltd March 2024 EA Technology Limited, Capenhurst Technology Park, Capenhurst, Chester, CH1 6ES; Tel: 0151 339 4181 Fax: 0151 347 2404 http://www.eatechnology.com...
- Page 3 2015-MANUL-S001-V03.02.00-CS2 Manual Safety Precautions and procedures CableSniffer instrumentation is only to be used by competent responsible persons with the permission from authorized DNO & local authorities as applicable. Working areas to be clearly highlighted and sectioned off as applicable to the general public. Equipment to always remain within this area.
- Page 4 2015-MANUL-S001-V03.02.00-CS2 Manual Personal Protective Equipment (PPE) Item Comments Manual identification Safety goggles/glasses Drilling, piling and sampling Overalls All tasks Steel toe cap boots All tasks Gloves Drilling and piling Ear defenders/plugs Drilling and piling Page iii...
-
Page 5: Table Of Contents
2015-MANUL-S001-V03.02.00-CS2 Manual Contents General Description ..............................1 Operating Instructions ............................... 2 Charging the Cablesniffer ........................... 2 Displaying the Battery Voltage ........................3 2.2.1 Low Battery Alarm .......................... 3 2.2.2 Dead Battery Alarm ........................3 Control Panel ..............................4 Assembly ................................ 5 2.4.1 How to Turn On the CableSniffer .................... -
Page 6: General Description
2015-MANUL-S001-V03.02.00-CS2 Manual General Description Following extensive research, EA Technology identified the gases that were produced by faults in all known cable types and cable joints. Of the large number of different gases produced, many were common to all of the cable types. -
Page 7: Operating Instructions
2015-MANUL-S001-V03.02.00-CS2 Manual Operating Instructions Charging the CableSniffer Using (Primary) non-rechargeable batteries could damage the CableSniffer Currently only one battery charger is offered with the CableSniffer system: CS-BC (ordered directly from EA Technology). It is to be noted that the following 2x legacy (obsolete) battery chargers can also continue to be used: 2019-0001 NiMH 4Cell charger (100 –... -
Page 8: Displaying The Battery Voltage
2015-MANUL-S001-V03.02.00-CS2 Manual Displaying the Battery Voltage 1. From the normal screen, press the DISPLAY/ADJUST/NO button to enter display mode. 2. Press the DISPLAY/ADJUST/NO button until the Battery Voltage screen displays. 3. The screen displays for 20 seconds before returning to the normal screen. 2.2.1 Low Battery Alarm When the battery charge drops to near the lower limit, the CableSniffer displays BATT along the left side of the... -
Page 9: Control Panel
2015-MANUL-S001-V03.02.00-CS2 Manual Control Panel Control Button Function(s) POWER/ENTER/RESET Turns the CableSniffer on and off and silences and resets the audible alarm. DISPLAY/ADJUST/NO Activates display modes. AIR//YES Activates the demand-zero function (automatically resets the CableSniffer in fresh air conditions). RANGE//SHIFT Not used in detection mode. Alarm LEDs Indicate Gas, low battery and failure alarms. -
Page 10: Assembly
2015-MANUL-S001-V03.02.00-CS2 Manual Assembly Connect the hose to the quick connect inlet fitting. Connect the Inline Filter Assembly to the hose. For use with the Drill System, ensure the Sensor Straw Adapter is installed in the threaded hole on the end of the Inline Filter Assembly. - Page 11 2015-MANUL-S001-V03.02.00-CS2 Manual Connect the clear end of the Sensor Straw to the Sensor Straw Adapter or Top Hat Adaptor (push fit). To remove the Sensor Straw from the Sensor Straw Adapter after use, press on the small white ring which surrounds the straw whilst pulling it straight out of the Adapter.
-
Page 12: How To Turn On The Cablesniffer
2015-MANUL-S001-V03.02.00-CS2 Manual 2.4.1 How to Turn On the CableSniffer Press and hold the POWER/ENTER/RESET button for 2 seconds Logo screen. CableSniffer is warming up. The Battery Voltage screen displays the minimum operational battery voltage and the current battery voltage. If the battery voltage low,... -
Page 13: How To Turn Off The Cablesniffer
2015-MANUL-S001-V03.02.00-CS2 Manual This screen will display if the calibration due date has passed. The CableSniffer will sound a double pulsing tone and the LEDs will flash. The Date and Time Screen will display for a few seconds. The serial number screen will display for a few seconds. -
Page 14: Performing Demand Zero
2015-MANUL-S001-V03.02.00-CS2 Manual Performing Demand Zero New units may register a few hundred ppm; this is due to volatiles in the new tubing, and this will reduce after several minutes of operation. It is prudent to perform the Demand Zero procedure before use. Take it to a known “fresh air”... -
Page 15: Inline Filter Assembly
2015-MANUL-S001-V03.02.00-CS2 Manual Inline Filter Assembly The filter paper and particle filter located in the Inline Filter Assembly are extremely important to the reliable functioning of the CableSniffer as they not only keep dust out of the electronic sensors, but also water. It is recommended that the filter paper and particle filter are cleaned regularly during use, particularly when using drill Systems, as this can produce large quantities of dust. -
Page 16: Making A Sample Hole And Taking A Sample
Do not reverse the drill while using the Drill Extension Bar. • Use 8 X 200mm SDS Drill Bits (Max) only. Spare Drill Bits can be purchased from EA Technology, in 5x pack or as part of the Drill Consumable Kit. - Page 17 2015-MANUL-S001-V03.02.00-CS2 Manual Locate the cable and drill a hole 150mm to the side of the cable. Clear away the surrounding dust and/or liquids, remove the drill and immediately insert the Sensor Straw into the sample hole. A short delay occurs while the gas is drawn up the Sensor Straw.
-
Page 18: Mastic Hole Repair System
2015-MANUL-S001-V03.02.00-CS2 Manual The Sensor Straw should be replaced after every cable fault detection. This will make sure that on ‘start up’ the CableSniffer will not pick up gas contamination from the previous fault location. Press the Sensor Straw Adaptor release ring pulling it straight out of the Adapter to remove the Sensor Straw. -
Page 19: Searcher Bar System
22 kV in accordance with GIS/E8:2006 and each Searcher Bar is marked with a serial number to allow a record of annual insulation checks, required for traceability. Only 205mm Spike, Non-reversable coupling units provided by EA Technology are to be used. Replacements available directly from EA Technology. - Page 20 2015-MANUL-S001-V03.02.00-CS2 Manual Remove the rubber protective cap and place the spike end onto the ground 150mm to the side of the cable. Undo the spike retaining thumb screw. Raise the handle and force down sharply so the top closure plug (inside the handle) hits the boss head of the spike.
-
Page 21: Tar Plug Hole Repair System
2015-MANUL-S001-V03.02.00-CS2 Manual The Sensor Straw should be replaced after every cable fault detection. This will make sure that on ‘start up’ the CableSniffer will not pick up gas contamination from the previous fault location. Press the Sensor Straw Adaptor release ring to remove the Sensor Straw. -
Page 22: Cablesniffer Alarms
If the sensor fails, FAIL SENSOR(S) appears at the top of the display and the Alarm LEDs flash in a double flashing pattern. If this occurs, the CableSniffer will need to be returned to EA Technology for a new sensor to be fitted and calibrated. -
Page 23: Maintenance
Waste electrical and electronic equipment directive (WEEE) EA Technology is a member of an approved compliance scheme as defined by the WEEE directive. When an EA Technology product reaches the end of its operational life, it must be recycled by a licensed waste management operator or returned to EA Technology for recycling. -
Page 24: Technical Specification
2015-MANUL-S001-V03.02.00-CS2 Manual Technical Specification Physical Size 241 (L) x 133 (W) x 149 (H) mm Weight 1.72 kg Enclosure Weatherproof, Chemical resistant, Anti RFI / EMI coated inc. ergonomically balanced rugged top mounted handle. Impact High impact polycarbonate – PBT Blend. Indicators 1x Display 1x Buzzer 95 dB (at 30 cm) - Page 25 BS EN 68000:2018 Declaration of Conformity Hereby, EA Technology declares that the equipment described in this document is in compliance with EU Directive 2014/35/EU, UK Statutory Instrument 1989 No. 728, and all other applicable EU Directives and UK Statutory Instruments.
-
Page 26: Sales And Service
Tel: +44 (0)151 347 2293 Continuous Improvement EA Technology has a policy of continual product development and enhancement. Consequently, there may be minor variations in specifications or operation that are not covered in this operating manual. Every effort has been made to ensure that the information provided in this operating manual is accurate at the time of going to print. -
Page 27: Accessories And Options
CableSniffer (for use with but not including a Searcher Bar System) CableSniffer CS2 Instrument (1), Carry Case (1), Battery Charger (1), Connector Hose (1), In-line Filter Assembly (1), Top Hat Adaptor (1), Sensor Straw (10), Spare Filter Paper (4), Spare Particulate Filter (4) - Page 28 Safer, Stronger, Smarter Networks EA Technology Limited t +44 (0) 151 339 4181 Capenhurst Technology Park e sales@eatechnology.com Capenhurst, Chester CH1 6ES www.eatechnology.com...
