Summary of Contents for Gazelle GW7030

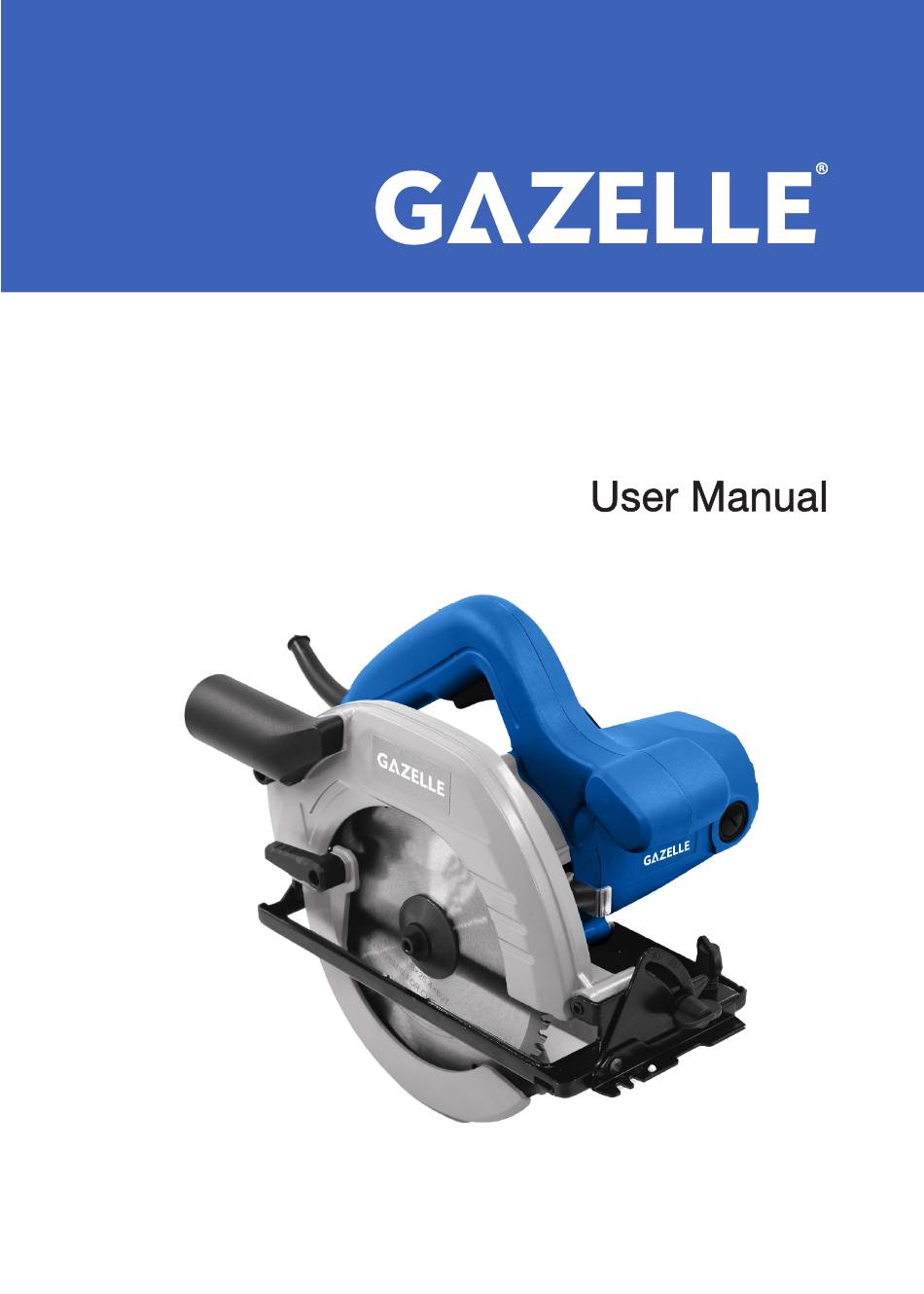

- Page 1 GW7030 Electric Circular Saw Pictures of battery packs with different configurations vary in the illustration.
-
Page 2: General Power Tool Safety Warnings
b) Use personal protective equipment. Always General power tool safety warnings wear eye protection. Protective equipment such WARNING Read all safety warnings, as a dust mask, non-skid safety shoes, hard hat or instructions, illustrations and specifications hearing protection used for appropriate conditions provided with this power tool. -
Page 3: Additional Safety Instructions For Circular Saws
maintained power tools. and safety of operation. f) Keep cutting tools sharp and clean. Properly Further safety instructions for all saws Kickback causes and related warnings maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. –... -
Page 4: Echnical Data
The severed plug must be disposed of to avoid a Always wear eye protection possible shock hazard and should never be inserted into a mains socket elsewhere. Class II tool ECHNICAL DATA Model GW7030 Rated Power Input 1500 No-load Speed /min 5300 90°... - Page 5 Additional supplements when using a circular a) When using this tool, note that: To avoid - The blades used shall be intact and shall not be kickback,do deformed, rolled, tooth-missing or cracked; suppoet board or - Saw blades made of HSS shall not be used, and panel near the cut.
-
Page 6: Instructions For Operation
m) Before setting the tool down after completing a cut, be sure that the lower (telescoping) guard has closed and the blade has come to a complete stop. A typical illustration of proper hand support,workpiece INSTRUCTIONS FOR OPERATION support,and supply cord routing. - Page 7 Secure the wing nut on the bevel gauge tightly after making the adjustment. 1.Inner Flange 2.Saw Blade 1.Bevel Gauge 3.Outer Flange 2.Wing Nut 4.Hex Bolt Cautions ·Be sure the blade is installed with teeth pointing forward in the same direction as the tool rotation •...
-
Page 8: Maintenance And Care
3.As shown in the figure below, the vacuuming interface and the vacuum cleaner can be connected when needed. 1.Handle 2.Auxiliary Handle 3.Base 1.Vacuuming interface 2.Install 3.Remove 4.Vacuum CAUTIONS: cleaner's tube Do not stop the saw blade by lateral pressure on the disc. -
Page 9: Environmental Protection
1.Brush Holder If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. Environmental Protection Waste Disposal The damaged tools, accessories and waste package materials should be sorted for eco-friendly recycling and in accordance with local laws. -
Page 10: Explanation Of General View
EXPLANATION OF GENERAL VIEW Hex Socket Head Bolt M6×20 Ball bearing 608-2RZ Pan Head Screw M4×12 (with Spring Washers) bearing rubber Adjust Handle Stator Cross Recessed Pan Head Tapping Screw lower guard ST5×63 Pan Head Screw M5×43 (with Spring and Flat Extension Spring（4.5×0.5×40）...
