Summary of Contents for QSFPTEK CWDM Mux Demux

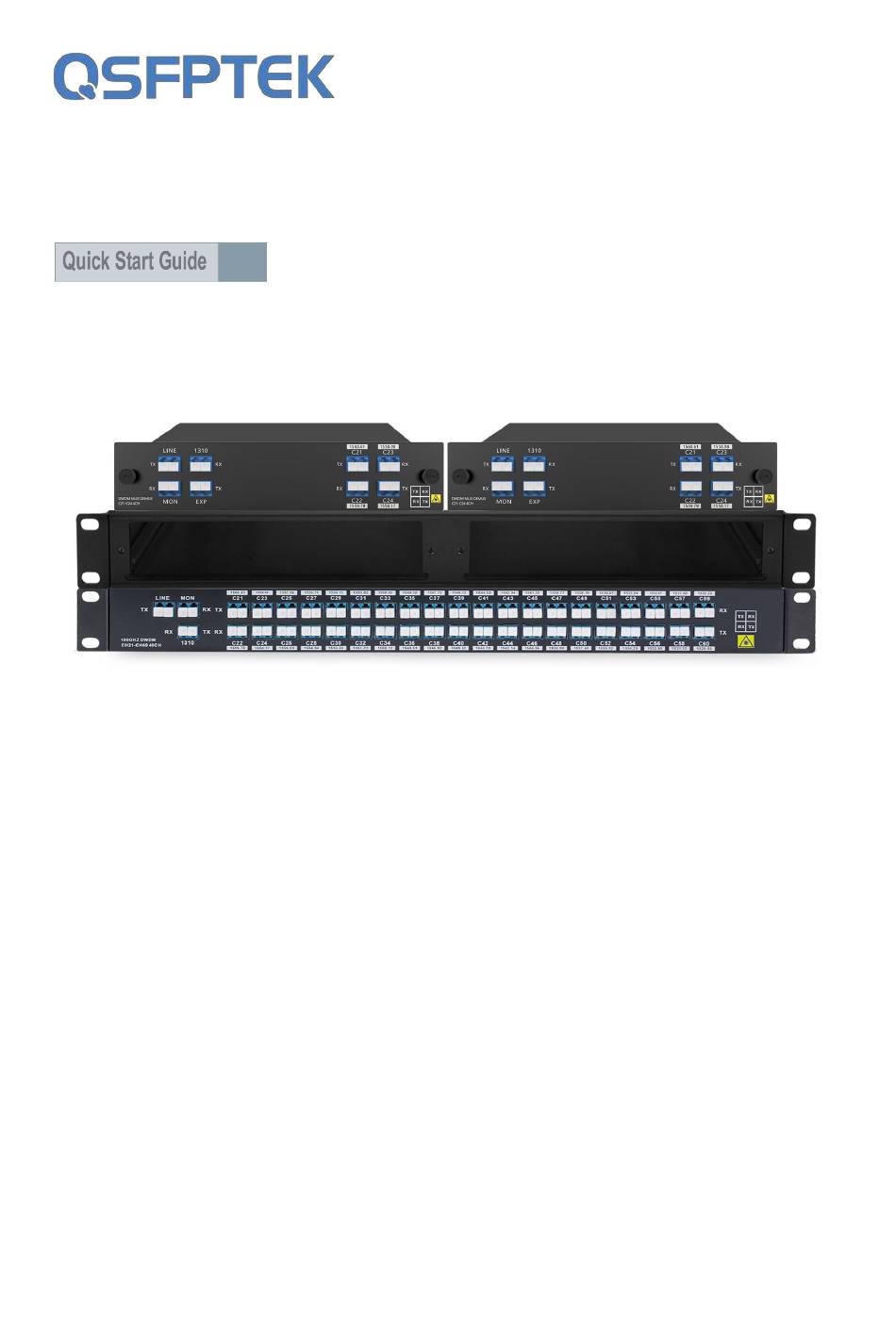

- Page 1 MUX DEMUX & OADM Quick Start Guide V2.0 QSFPTEK Mux Demux & OADM Quick Start Guide CWDM Mux Demux DWDM Mux Demux DWDM OADM www.qsfptek.com V2.0 1 / 11...
- Page 2 4/8/16/40 /64CH, the DWDM OADM channels include 8/16CH. Supports optional Monitor, Expansion and 1310nm Port. We appreciate your decision to select QSFPTEK FMU&1U Mux Dmux & OADM. This manual is intended to help you become acquainted with the Mux Demux & OADM design and provide instructions for implementing the Mux Demux &...
- Page 3 Functional Ports Overview 8CH CWDM Mux Demux, Dual Fiber, FMU Port Wavelengths 1470nm RX → TX Line RX Line → 1470nm TX 1490nm RX → TX Line RX Line → 1490nm TX 1510nm RX → TX Line RX Line → 1510nm TX 1530nm RX →...
- Page 4 RX Line (The Mux that needs to be connected) → TX EXP 1310nm & Expansion Port for Capacity Enhancement The Monitor Port Extracts 1% of the Signal for Monitoring Channel Power Levels 9CH CWDM Mux Demux, Single Fiber, 1U Port Wavelengths Line → 1270nm TX 1290nm RX →...
- Page 5 RX Line (The Mux that needs to be connected) → TX EXP 1310nm & Expansion Port for Capacity Enhancement The Monitor Port Extracts 1% of the Signal for Monitoring Channel Power Levels The TX of the Channel Port is drop, and RX is add www.qsfptek.com V2.0 5 / 11...
- Page 6 RX Line → C45 TX C22 RX → TX Line RX Line → C46 TX C23 RX → TX Line RX Line → C47 TX C24 RX → TX Line RX Line → C48 TX www.qsfptek.com V2.0 6 / 11...
- Page 7 RX EXP → TX Line (The Mux that needs to be connected) RX Line (The Mux that needs to be connected) → TX EXP 1310nm & Expansion Port for Capacity Enhancement The Monitor Port Extracts 1% of the Signal for Monitoring Channel Power Levels www.qsfptek.com V2.0 7 / 11...
-
Page 8: Installation Requirements
Mux Demux Hardware Installation Manual. Put the machine box in a place where cool air can blow off the heat inside the machine box. Make sure the machine box is sealed. www.qsfptek.com V2.0 8 / 11... -
Page 9: Installation
Mounting The Chassis in a Rack Install the mounting bracket on the right and left side. Install the chassis that inserted CWDM/DWDM Mux Demux into the rack carefully. Tighten them with M6x12mm screws and M6 nuts. www.qsfptek.com V2.0 9 / 11... -
Page 10: Rack Mount
1U Rack Mount Install the mounting bracket on the right and left side. Install the CWDM/DWDM Mux Demux into the rack carefully. Tighten them with M6x12mm screws and M6 nuts. www.qsfptek.com V2.0 10 / 11... -
Page 11: Connecting Fiber Cable
Connecting Fiber Cable Support and Other Resources Contact us https://www.qsfptek.com/company/contact-us.html Customer Success https://www.qsfptek.com/resources/customer-success-stories Email support@qsfptek.com Product Warranty The Mux Demux & OADM products are backed by a 3-year limited warranty supported by QSFPTEK. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
