CG-AUDIO

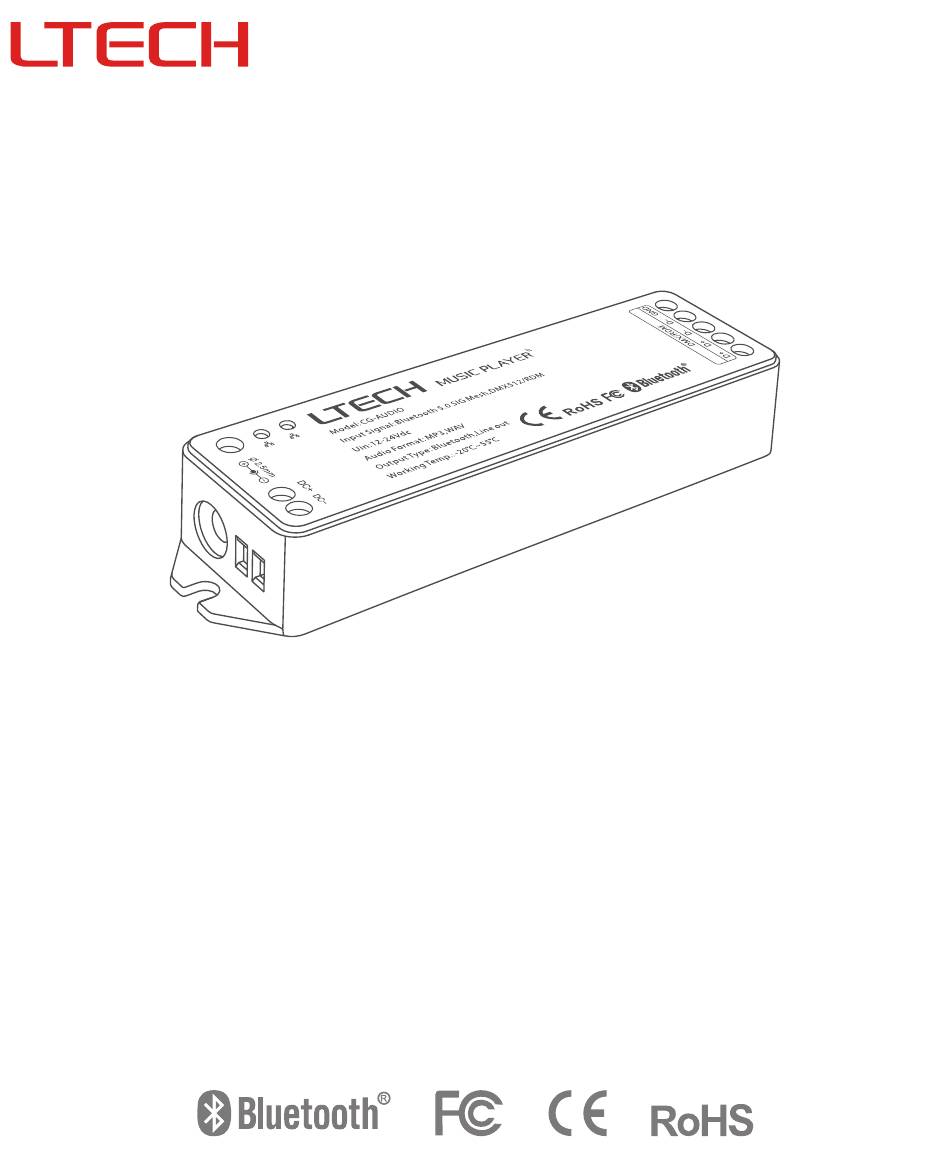

Music Player
Product Introduction
Music Player uses the advanced Bluetooth 5.0 SIG Mesh technology that provides stable communication
and reliable performance with its high networking capacity.
Multiple playback options are provided, so you can play music via a USB flash disk, a TF card or connect
to a terminal device like your mobile phone or tablet to play on them. It supports multiple output modes,
allowing you to connect it with a wired active speaker, a Bluetooth headphone or a Bluetooth speaker. It
also supports the local scene execution with no Internet, no gateway needed. By adding a gateway
device, you can achieve a variety of cloud scenes and automation using the app. You can link it with
other smart devices to sync the background music with your lighting.
Through DMX signal, the music player can work with LTECH MS Panel system to sync the background
music with your lighting.
Advertisement
Summary of Contents for Ltech CG-AUDIO
- Page 1 You can link it with other smart devices to sync the background music with your lighting. Through DMX signal, the music player can work with LTECH MS Panel system to sync the background music with your lighting.
-
Page 2: Package Contents
Package Contents Manual ×1 Music Player ×1 TF Card ×1 Tools you need to prepare by yourself: DC power adapter, audio cable, USB flash drive. Technical Specs MP3, WAV Input signal: Bluetooth 5.0 SIG Mesh Audio format: -20°C~55°C Input voltage: 12-24Vdc Working temp: Number of tracks:... -
Page 3: Terminal Description
Terminal Description Status of Bluetooth indicator light (Change status by a short press on the settings button) ① When the Bluetooth indicator light flashes blue quickly, it’s ready to search Bluetooth audio devices. You can connect a Bluetooth speaker and then play music from your USB flash drive or TF card on the speaker. - Page 4 Bluetooth System Diagram Wi-Fi/4G/5G CLOUD Phoneuser... Phone user 1 Scene Timing Automation Router Amazon Echo Google Home appliances & accessories Wi-Fi Ethernet Home appliance Central air Curtain module conditioner module motor Bluetooth Bluetooth 4.2 Wireless module Relay Musicplayer Mesh Bluetooth Speaker Super Panel 6S Wireless Bluetooth...
- Page 5 Application Scenes Running in the Bluetooth System Bluetooth Connection (Play Audio from a USB Flash Drive / TF Card) Bluetooth 5.0 SIG Mesh Bluetooth 4.2 Audio cable Music Player Bluetooth Speaker (host) Speaker (slave) Phone ①First, copy tracks to a USB flash drive or a TF card. (Please refer to P2 of this manual for detailed instructions).
- Page 6 ① Short press the settings button of the music player to enable the blue light flashing slowly (meaning it’s ready for connecting a terminal device). Turn on Bluetooth on your phone or PC to search Bluetooth devices. When the device “CG-AUDIO” is found, connect it. ②When the blue light of the music player stays on, it means the music player has been connected...
- Page 7 L-Home App Operating Instructions 1. Register an account 1.1Scan the QR code below with your mobile phone and follow the prompts to complete the App installation. Open the App and log in or register an account. 2. Connect the music player to the network 2.1 Create a home if you are a new user.
- Page 8 3. Control interface settings 3.1 In【 Room】 interface, click the music player you add to access its control interface. By clicking 【Sync songs】, you’re able to sync the tracks from the USB flash drive/TF card to the L-Home App (supporting the maximum amount of 128 tracks). 3.2 Click【Playlist】to create a playlist.
- Page 9 4. Create a local scene Switch to【Intelligence】interface, and click 【+】icon in the top right to create a local scene. Then click 【Add action】to set the execution action and save it. Go back to the 【Intelligence】interface and click the scene you set to execute it successfully and achieve remote control. 5.
- Page 10 5.3 Automation Switch to【Automation】interface and click【+】icon in the top right to create automation. Then click【Add condition】to set the trigger conditions for controlling the music player remotely, and click【Add action】to set the execution action. Other devices can also be added to link the music player together.
- Page 11 MS Panel System Diagram Lamp DMX decoder 3G/4G/5G WiFi DMX driver Lamp Cloud service Remote Internet DMX to phase-cut converter lamp WiFi WiFi Router Pixel lamp LED control system MSPanel L-BUS wired protocol Dry contact module LTSA512 DMX driver Lamp MSPanel Dry contact module WiFi-108 DMX driver...
- Page 12 Application Scenes of MS Panel Bluetooth Connection (Play Audio from a USB Flash Drive / TF Card) DMX+ DMX- 5-24V Music Player Input voltage Ms panel back 12-24V wiring port Input voltage Bluetooth 4.2 Audio cable DC+ DC- DMX+ DMX- GND Bluetooth Speaker (host) Speaker (slave) 5-24V...
- Page 13 Wired Connection (Play Audio from a USB Flash Drive / TF Card) DMX+ DMX- Music Player 5-24V Input voltage 12-24V Line Out Ms panel back Input voltage wiring port Audio cable AudioPowerAmplifier Speaker DC+ DC- DMX+ DMX- GND 5-24V Input voltage MSPanel Phone DMX...
- Page 14 MS Panel APP Operating Instructions 1. Log in or register your MS Panel account Scan the QR code below with you mobile phone and follow the prompts to complete the app installation, then you can log in or register your MS Panel account. 2.
- Page 15 3.Add zones After adding MS Panel, access the control interface and click【Add】to add zones. The panel is now searching for devices. After completing the search, choose LED fixture types and devices you want to add and click【Save】. Add zones Choose LED Edit zones fixture types Search...
- Page 16 5. Applications of scenes Save scenes: After adjusting to the lighting status for the zone you want, click the icon in the upper right corner of the【Zone】interface. Follow the prompts to choose zones/ music player. Execute scenes: Switch to the【Scene】interface and click to execute the scene. Execute scenes Click ”...”...
-
Page 17: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
