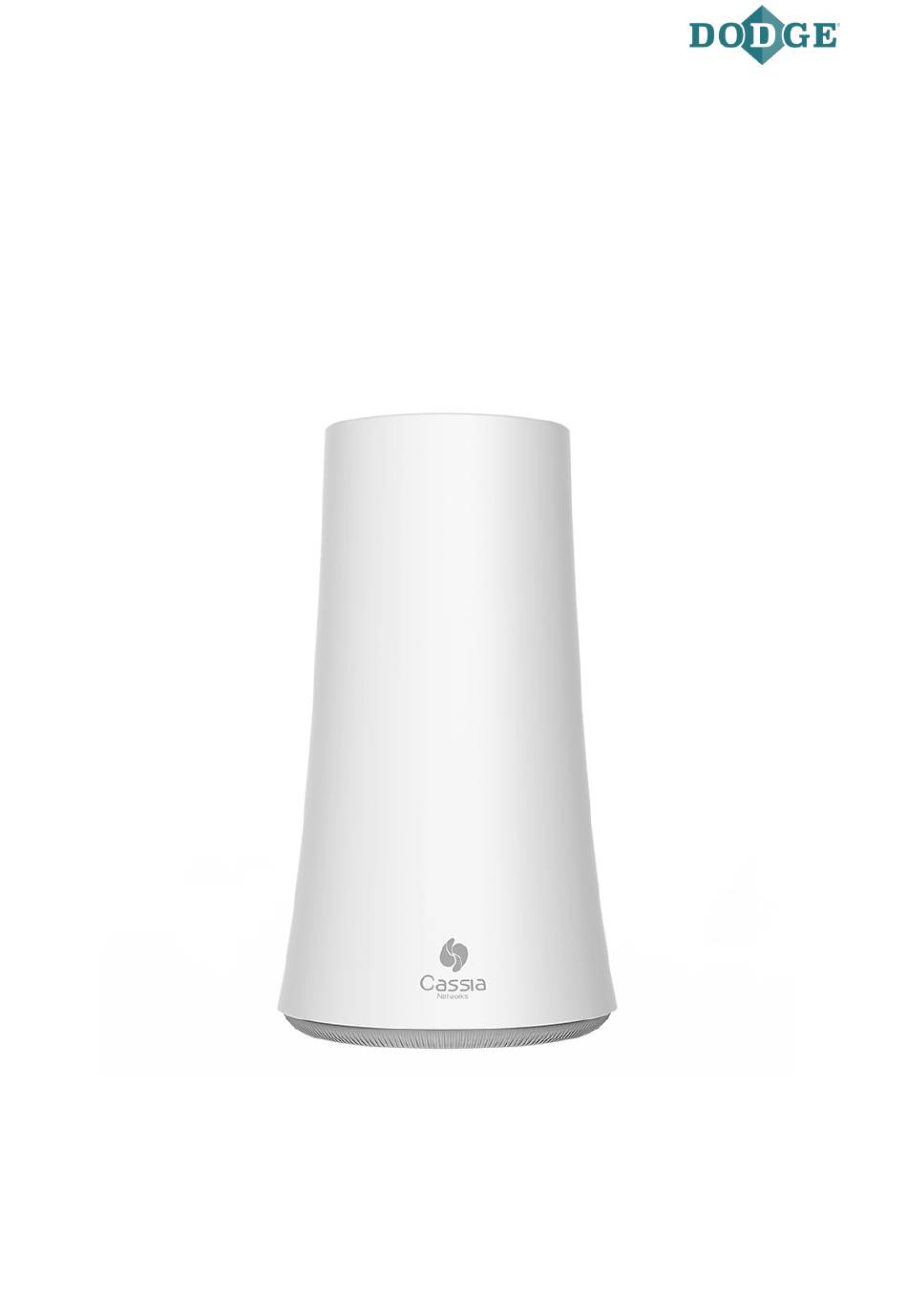

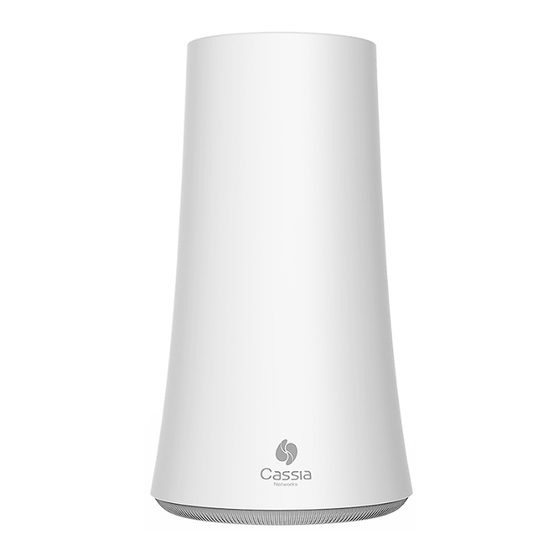

- Page 1 IIOT TECHNOLOGIES X1000 Gateway Installation Manual © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY MN7003-10.22...
-
Page 2: Table Of Contents
PoE connection ......................... 9 LAN/ethernet cable connection ................... 10 Wi-Fi connection ........................11 USB mobile dongle connection ................... 12 Firewall configuration ......................13 Verifying the configuration ....................14 3 Troubleshooting ....................15 © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY... -
Page 3: General
General The X1000 Gateway is used to upload Dodge sensor data automatically to the OPTIFY ® ™ platform. For the gateway to start reading the sensors, it needs to be configured for internet access. The following internet connections are supported: LAN/ethernet network together with a Power over Ethernet (PoE) injector 2.4GHz Wi-Fi network... -
Page 4: Installation
OPTIFY Azure IoT Services Global: dodge.azure-devices.net global.azure-devices-provisioning.net dodge-provisioning.azure-devices-provisioning.net Power supply In case the PoE network is not available, a PoE injector is needed for the power supply PoE is 802.3af/at compliant Ethernet cable © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY... -
Page 5: Recommended Location
Recommended location Height The recommended height for the gateway is 3-30 meters above ground level. A lower level is acceptable, but the gateway's Bluetooth range might be shorter due to obstacles. Orientation © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY... -
Page 6: Gateway Configuration
AC server. If no time is shown, it means the gateway does not have a connection to the AC server. Connection to the AC server is required for the transfer of sensor data. © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY... - Page 7 Connection Priority is where a prioritized connection method is selected in case there are several in use. Select the priority according to the connection in use: Wired for PoE and LAN connections Wireless for a Wi-Fi connection 3G/4G for a mobile USB dongle connection © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY...
- Page 8 Figure 5: Cassia basic page © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY...
-
Page 9: Poe Connection
You can also change the SSID (name of the Wi-Fi hotspot of the gateway) if desired. Figure 7: changing the Wi-Fi hotspot password Press "apply" at the bottom of the screen. © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY... -
Page 10: Lan/Ethernet Cable Connection
You can also change the SSID (name of the Wi-Fi hotspot of the gateway) if desired. Figure 9: changing the Wi-Fi hotspot password Press "apply" at the bottom of the screen. © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY... -
Page 11: Wi-Fi Connection
In this case, the gateway isn't shown in the Wi-Fi router device list or a network scan. To resolve, press and hold the reset button on the bottom of the gateway for 10 seconds to reset the gateway back to factory default values. © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY... -
Page 12: Usb Mobile Dongle Connection
This can be done under the Wi-Fi section. Please make note of the new password. You can also change the SSID (name of the Wi-Fi hotspot of the gateway) if desired. Figure 12: changing the Wi-Fi hotspot password © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY... -
Page 13: Firewall Configuration
The firewall should allow communication between the gateway and the access controller as well as the gateway and the OPTIFY platform respectively. If needed, refer to the required ports in section 2.1 Prerequisites for installation. © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY... -
Page 14: Verifying The Configuration
Note: Remember to change the router mode to AC Managed Router. If this mode is not changed, the gateway will not establish the connection to the AC server and the sensor data is not being read. © DODGE INDUSTRIAL, INC. 10.22... -
Page 15: Troubleshooting
If the gateway is reading the sensor data in a timely manner, it can take a couple of hours to see the first measurements in OPTIFY Check if the Online Time on the Status page is being shown, and if it is not, check the internet connection © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY... - Page 16 The debug tool will start to list all Bluetooth devices within range. For all scanned devices, the tool shows the MAC address and the RSSI value. Sometimes the name is not available, but it is listed if known. © DODGE INDUSTRIAL, INC. 10.22 AN RBC BEARINGS COMPANY...
- Page 17 RSSI value -80 or less: poor (most of the time the sensor cannot be read) If the desired sensors are showing RSSI values of -70 or less, adjusting the gateway's location or orientation is recommended. Support: For additional support, please contact the Dodge IIoT Technologies team: Email: engineering@support.dodgeindustrial.com Phone: 864-284-5700 ext.6 Availability: Monday-Friday, 8:00am-5:00pm EST ©...
