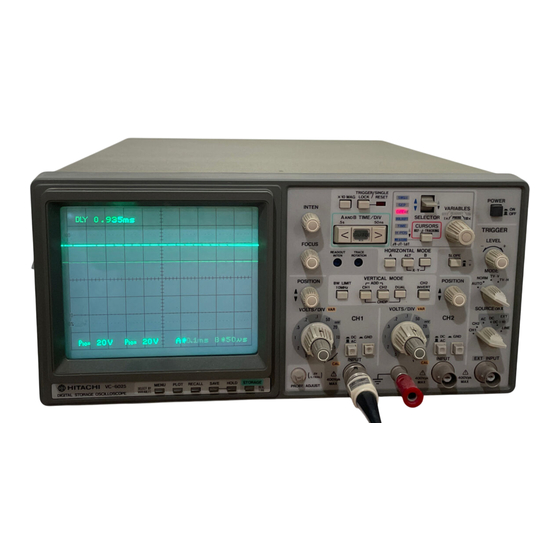

Summary of Contents for Hitachi VC-6025
- Page 133 Some notes on data transfer from Hitachi Storage scopes, by Paul Nielsen, 20160515. Baud rates up to 9600 can be set by the rear panel dip switches. The data format is 8 bits, 1 or 2 stop bits (set by dip switch), np, delimiter (set by dip switch) is "crlf"...
- Page 134 Rather than using a program to receive data, it is also possible to use a computer with serial port to receive the plot data, if the Hitachi plotter, or an HP plotter using the HP-GL format is not available. Specifically, using the TeraTerm communications program, set it up to log data in binary mode (the <ETX>, binary 3, is used to terminate text string data),...
- Page 135 Hitachi VC-6045 serial port connections adapter DE9 (receptacle on DB25 (receptacle on scope) Direction Signal at Signal Function of Signal Frame Gnd -TXD Transmit Data -RXD Receive Data Request to Send Clear to Send Non Connect Signal Gnd Non Connect...
