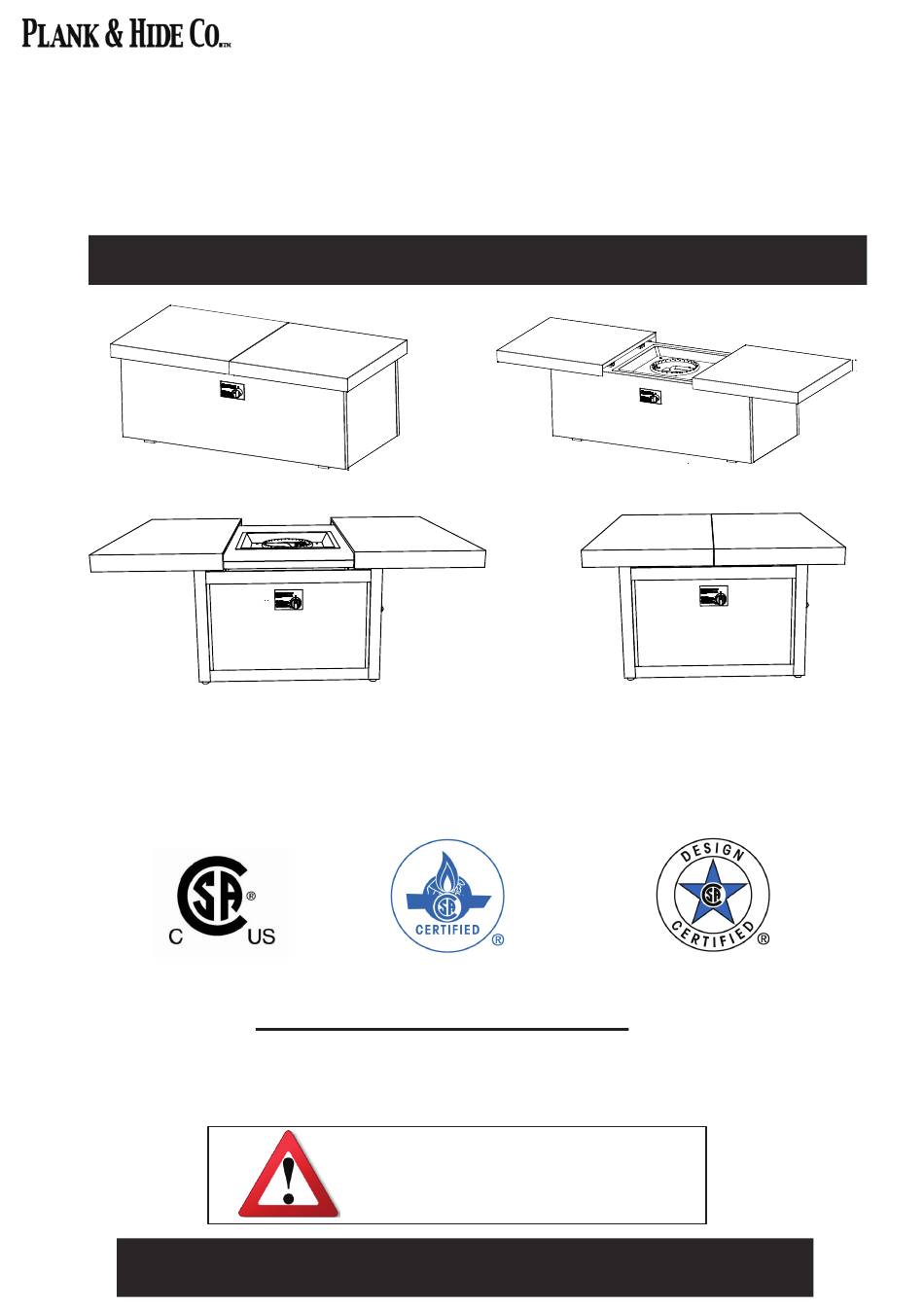

Functional Fire Pit
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS,
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
CSA MODEL:
Ulc-PH48-C-E series
MODEL:90001 series/ 90003 series/90005 series/ 90006 series /90007 series
This fire pit requires a minimum 18-square inches of cross ventilation.
Failure toprovide proper ventilation can void the warranty.
Do not oprerate when table top is in closed position.Do not sit or stand on table top.
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
Ulc-PH34-C-E series
INSTALLTION PRECAUTION
W arning:
Ulc-PH42-C-E series
For Outdoor Use Only.
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ulc-PH48-C-E Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Plank & Hide Ulc-PH48-C-E Series

  • Page 1 Installation and Operating Instructions IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS, DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE CSA MODEL: Ulc-PH48-C-E series Ulc-PH34-C-E series Ulc-PH42-C-E series MODEL:90001 series/ 90003 series/90005 series/ 90006 series /90007 series INSTALLTION PRECAUTION This fire pit requires a minimum 18-square inches of cross ventilation.
  • Page 2 !"#$%& )"&*+#,-+#+.(!%,/"0"&! 1234,56673589:,958,6;<=>9:,95;?<8,@<8<A3=:, B2392,254,8<,<=<;C, D438E,3F,38,58,:897<4:=,4659:,958,harm,H<>C, #:I:;,>4:,F234,56673589:,38,58,:897<4:=,4659:, 4>92,54,5,95@6:;J,F:8FJ,95;,<;,2<@:C, !"#$%& '"&#(#$ If you smell gas: Do not store or use gasoline,or other flammable vapors and liquids, in the 1. Shut off gas to the appliance. vicinity of this or any other appliance. 2.
  • Page 3 Figure 1. Clearance to Combustibles (Not to be used in an enclosed space) Pressure Manifold pressure 7.0” WC 11.0” WC Table 3. Gas Pressures Disclaimer: Btu listings are based on 7.0”WC for Natural Gas and 11.0”WC for Liquid Propane (LP) at the inlet side of the gas valve. Flex line size and proper gas pipe sizing will also affect Btu’s.
  • Page 4 WARNING: Proper clearances from combustible materials must be maintained from all sides, top and bottom of this appliance. Use the specifications listed on page 3 for proper clearance to combustibles. HARD PIPING TO FIRE PIT WITHOUT GAS PROXIMITY NOTE: We recommend using 3/4” black iron pipe; however please refer to the NFPA54 (National Fuel Gas Code) for proper pipe sizing when exceeding 20-feet in length for fire pits rated above 100,000 Btu’s.

  • Page 5: Installation Safety Guidelines

    INSTALLATION SAFETY GUIDELINES as necessary. It is imperative that control compartment, burners and circulating air passageways of the appliance be kept clean. B. Carefully inspect for shipping damage. If any parts are damaged, call the dealer. C. Correct installation and proper placement of the unit and decorative media is crucial to the safe performance of the unit.
  • Page 6 For Square functional fire pit table only Parts list:...

  • Page 8: Parts List

    GLASS CRYSTAL INSTALLATION GUIDELINES A. Carefully inspect the carton for shipping damage. If any parts are missing or damaged, call your dealer. Do not attempt to install the appliance unless all parts are in good condition. B. Correct installation is crucial to safe performance of your Outdoor Fire Pit. C.
  • Page 10 Side the table top to the closed and locked position...
  • Page 11 Connector from valve attached to Fig. 2 orifice holder on burner pipe Fig. 1 Detach connector from orifice holder when changing orifice to a different gas type. Remove propane pipe. Fig. 3 NG Orifice & Air Shutter NO. OA01 NG orifice size: 3.78mm Install gas pipe.
  • Page 12 The pressure regulator and hose assembly (Fig.7-1) supplied with this outdoor gas appliance must be used. Original and replacement pressure regulator and hose assemblies must be those specified by the manufacturer for connection with a cylinder connecting device identified as Type.

  • Page 13: Important Notice

    IMPORTANT NOTICE...
  • Page 15 INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the Fire Pit. Underneath area should be non-combustible as well. 2. Only use ¾” gas supply line to the Fire Pit. Based on the selection of the fire pit size, the proper brass fittings should be used to ensure a proper installation.
  • Page 16 WARNING WARNING: *Do not use this fire pit for cooking. *Do not burn any other materials than are supplied with and intended for use in this fire pit. *Do not pour water into fire pit. *The installation of this product must conform with local codes. *Do not use this fire pit if any part has been under water.

  • Page 18: Troubleshooting

    Keep fire pit covered at all times when not in use. Keep any debris out of fire pit-clean as needed. Ring Cleaning: (Yearly) If flame exhibit any abnormal shapes or behavior, or if burner fails to ignite properly, then the burner holes may require cleaning. The appliance can be cleaned by carefully removing the logs and media to allow access to burner.
