-reciever
Music streaming with bluetooth receiver
Transfer music apps from your smartphone or tablet to your hi system.
Simple & power saving

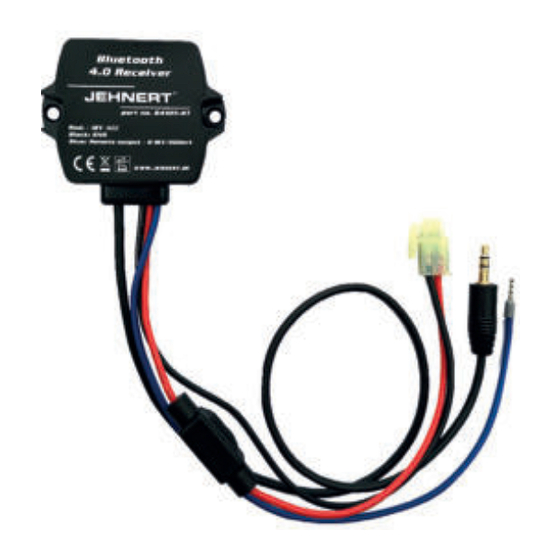

The Bluetooth receiver allows you to stream music
directly from a Bluetooth-enabled device and
provides a wireless connection between the device
and any receiver with AUX input at a distance of up
to 11m using Bluetooth 4.0 technology. The con-
nection is easily made via a 3.5mm jack plug.
Current consumption incl. remote output
Voltage/current remote output
Assembly instruction
Status: 04.03.2024
Bluetooth-Reciever 68497
Bluetooth® pro l
Bluetooth® Chip
Frequency range
Output voltage
Range
Bitrate
Coding
A2DP in highest EDR speci cation
4.0 CRS I9chip
20 Hz - 20kHz
<65mA
+12V DC, max. 20mA
1V RMS
up to 11m
uo to 345 kBit/s
Low Complexity Subband Codec
(SBC)
Advertisement
Summary of Contents for JEHNERT SOUND DESIGN 68497
- Page 1 Assembly instruction Status: 04.03.2024 -reciever Bluetooth-Reciever 68497 Music streaming with bluetooth receiver Transfer music apps from your smartphone or tablet to your hi system. Simple & power saving The Bluetooth receiver allows you to stream music directly from a Bluetooth-enabled device and...
- Page 2 Assembly instruction Status: 04.03.2024 -reciever Bluetooth-Reciever 68497 TEACH IN THE DEVICE - make sure that Bluetooth is turned on on your device - turn on the ignition/power - the LED ashes blue (pairing mode) - select JEHNERT-BT in the Bluetooth menu of your device to connect...
- Page 3 Assembly instruction Status: 04.03.2024 -reciever Bluetooth-Reciever 68497 Output 3.5mm Interference jack plug suppression lter Remote-out +12V / 20mA Y-adapter Rocker Remote in (e.g. 69499) = Power cable = Earth cable = AUX cable = Remote NOTICE: - up to 9 devices can be connected to the Bluetooth module, but only one device can...
- Page 4 Assembly instruction Status: 04.03.2024 -reciever Bluetooth-Reciever 68497 Warranty: As the manufacturer, we warrant these sound systems for 2 years from the date of purchase from the dealer. Within this warranty period, we will, at our option, repair or replace free of charge all defects that are due to material or manufacturing faults.
