Summary of Contents for HOME PILOT 10941001

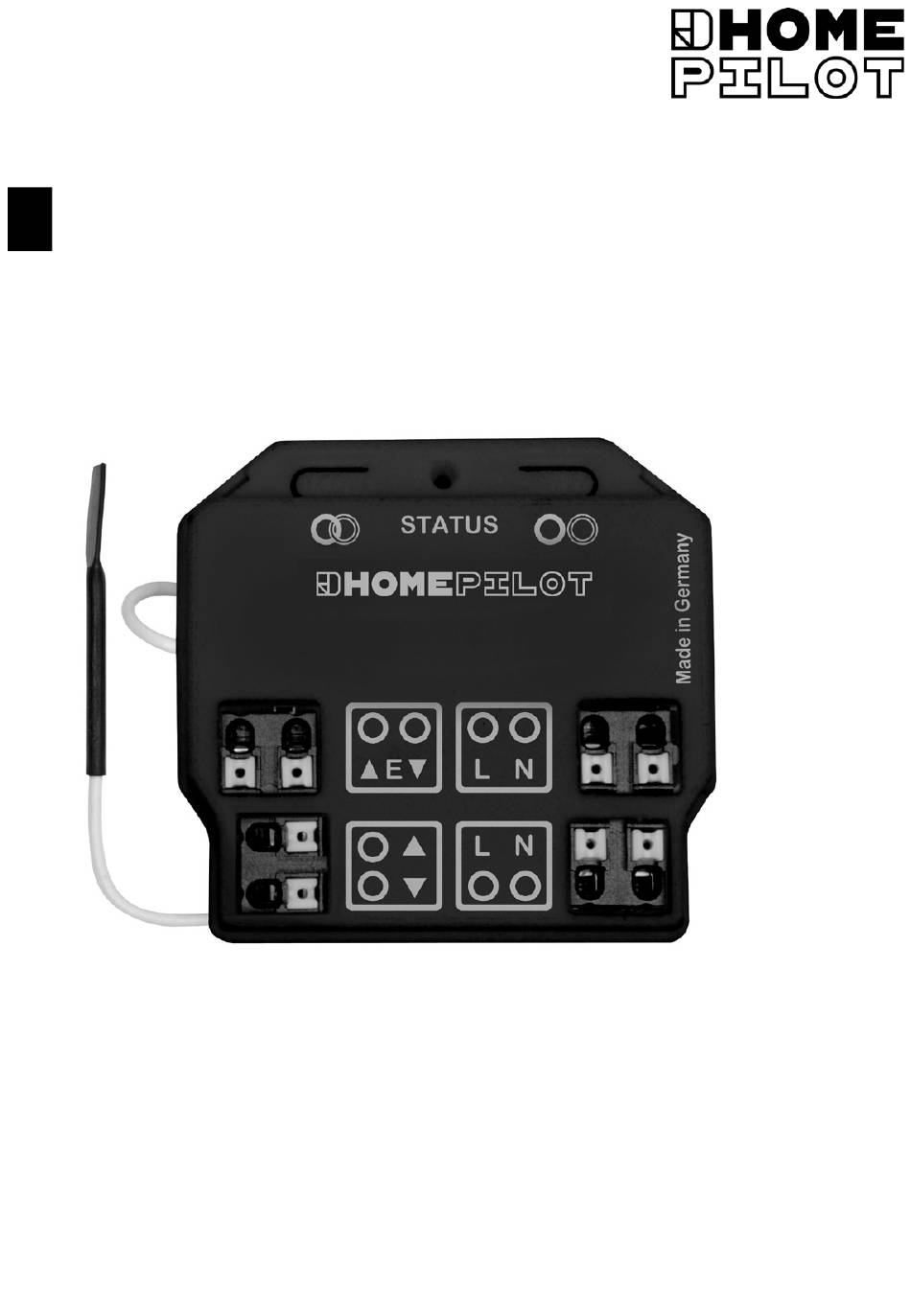

- Page 1 Smart flush-mounted roller shutter receiver Instruction manual for the electrical connection and for commissioning Item no. 10941001 UM D105-2...
-
Page 3: Table Of Contents
Contents This manual.................4 How to use this manual ..............4 Hazard symbols ..............5 Levels of danger and signal words ..........5 Symbols and depictions used ............6 Glossary - definition ................7 Included in delivery ............8 Overview and connections ..........9 Operating buttons and indicator light ........10 Functional description ........... -
Page 4: This Manual
1. This manual..describes how to install, connect and commission the Smart flush-mounted roller shutter receiver. 1.1 How to use this manual Before you begin, please read this manual through completely ‹ and follow all the safety instructions. Please also read the instruction manual of the respective ‹... -
Page 5: Hazard Symbols
2. Hazard symbols The following hazard symbols are used in this manual: Danger to life resulting from electric shock Danger area / dangerous situation 2.1 Levels of danger and signal words DANGER! This hazard will lead to serious injury or death if not avoided. WARNING! WARNING! This hazard may result in serious injury or death if not avoided. -
Page 6: Symbols And Depictions Used
2.2 Symbols and depictions used Depiction Description Steps to be taken Itemisation ‹ 1) or a) Lists Further useful information Please read the respective manual... -
Page 7: Glossary - Definition
1.1 Glossary - definition DuoFern HOMEPILOT radio technology for controlling compatible ‹ products. Premium gateway The Premium gateway is a central controller unit for ‹ HOMEPILOT radio products. -
Page 8: Included In Delivery
3. Included in delivery Included in delivery a) 1 x Smart flush-mounted roller shutter receiver incl. anten- b) 1 x instruction manual (not illustrated) -
Page 9: Overview And Connections
4. Overview and connections STATUS ▲ ▼ ▲ ▼ Pos. Symbol Description Control input (up/down) Connection of an external roller shutter switch / button for manual control on site. Rotation direction (up / down) Connecting cables to the tubular motor. 230 V / 50 Hz Connection of the supply voltage. -
Page 10: Operating Buttons And Indicator Light
4.1 Operating buttons and indicator light STATUS Pos. Symbol Description ▲ ▼ Connect button ▲ Logging on to the DuoFern radio network ▼ or a DuoFern transmitter. STATUS Indicator light - status display green flashing Connection is active constantly Connection or disconnec- lit up tion was successful... -
Page 11: Functional Description
5. Functional description Tubular motor controller in a DuoFern network The Smart flush-mounted roller shutter receiver can be used to integrate conventional tubular motors into a DuoFern network, for example, to use a wide range of the functions of DuoFern sensors and DuoFern transmitters, such as the Premium gateway. -
Page 14: Technical Specifications
6. Technical specifications Mains connection [ L / N ] Mains supply 230 V / 50 Hz voltage: Consumption: Standby: < 0.5 W Control input [ for an external roller shutter switch / button on site Input voltage: 230 V / 50 Hz (Ri = 200 kW) Rotation direction [ Output voltage: 230 V / 50 Hz... - Page 15 6. Technical specifications DuoFern radio technology Transmission frequency: 434.5 MHz Transmission power: Max. 10 mW Range: Indoors: approx. 30 m * Outdoors: approx. 100 m * Depending on the building structure Max. number of DuoFern devices: General information Permissible ambient -20 °C to + 55 °C temperature range: Dimensions (W x H x D):...
-
Page 16: Safety Instructions
7. Safety instructions The use of defective devices can lead to personal injury and damage to property (electric shock / short circuit). Never use defective or damaged devices. ‹ Check that the Smart flush-mounted roller shutter receiver ‹ intact. Consult our customer service department in the event that ‹... -
Page 17: Improper Use
7.2 Improper use Using the Smart flush-mounted roller shutter receiver for any other purpose than previously mentioned is not permissible. Improper use can lead to serious injuries or property damage. Do not use the Smart flush-mounted roller shutter receiver to ‹... -
Page 18: Expert Knowledge Required By The Installer
7.3 Expert knowledge required by the installer The electrical connection, installation and commissioning of the Smart flush-mounted roller shutter receiver must only be carried out by a qualified electrician in accordance with the instructions in this manual. 8. Safety instructions for the electrical connection Prior to the electrical connection, check that the voltage / frequen- cy on the type plate corresponds to that of the local mains supply. -
Page 19: Important Information Regarding The Electrical Connection
8. Safety instructions for the electrical connection WARNING! WARNING! Short-circuiting, caused when the Smart flush-mounted roller shutter receiver is overloaded, poses a danger to life. The maximum switching capacity must not be exceeded. ‹ Please observe the details in the “Technical Specifications”, see page 15. - Page 20 8.1 Important information regarding the electrical connection Minimum length of insulation stripped: 9 mm All leads must be stripped to 9 mm. Please read the specifications relating to the electri- cal connection detailed in the instruction manual for the tubular motor. Further installation instructions In order to ensure optimal operation, the Smart flush-mounted ‹...
-
Page 21: Connecting And Installing The Smart Flush-Mounted Roller Shutter Receiver
8.2 Connecting and installing the Smart flush-mounted roller shutter receiver Ensure the mains are current-free and check whether the inlet leads are current-free. Securely lay all connecting cables right into the flush-mounted box. Remove the insulation on all leads down to 9 mm as specified above and connect them according to the following connection diagram. -
Page 22: Connection Diagram
8.3 Connection diagram 230 V / 50 Hz External roller shutter button N PE Control input Up Control input Down STATUS ▲ ▼ ▲ ▼ Tubular motor Set line * Rotation direction Up ▲ ▼ Rotation direction Down * The set line must be connected to the neutral conductor [N] on HOMEPILOT electronic tubular motors. -
Page 23: Logging Duofern Transmitters On / Off
9. Logging DuoFern transmitters on / off For the Smart flush-mounted roller shutter receiver to be operated with a DuoFern transmitter, you must log each desired transmitter onto the Smart flush-mounted roller shutter receiver. You can log on a maximum of 20 DuoFern transmitters (e.g. Premium gateway or Smart remote control 6 groups, etc.). -
Page 24: Logging On And Off Via Radio Code
9.1 Logging on and off via radio code You can use the radio code to connect the Smart flush-mounted roller shutter to your Premium gateway remotely even after in- stallation. In addition, you can set the Smart flush-mounted roller shutter to remote login mode using your Premium gateway and thus connect it directly to radio transmitters (e.g. -
Page 25: Deleting All Settings (Reset)
10. Deleting all settings (reset) A reset can be carried out to reset the Smart flush-mounted roller shutter receiver to the default factory settings. Press and hold the disconnect button for approx. 5 seconds until the STATUS LED constantly lights up red. -
Page 26: Simplified Eu Declaration Of Conformity
12. Simplified EU declaration of conformity DELTA DORE RADEMACHER GmbH hereby declares that the Smart flush-mounted roller shutter receiver complies with the Directive 2014/53/EU (Radio Equipment Directive). The full text of the declaration of conformity is available at the following website: www.homepilot-smarthome.com Warranty terms and conditions Information on our warranty conditions is enclosed separately... - Page 28 DELTA DORE RADEMACHER GmbH Buschkamp 7 46414 Rhede (Germany)
