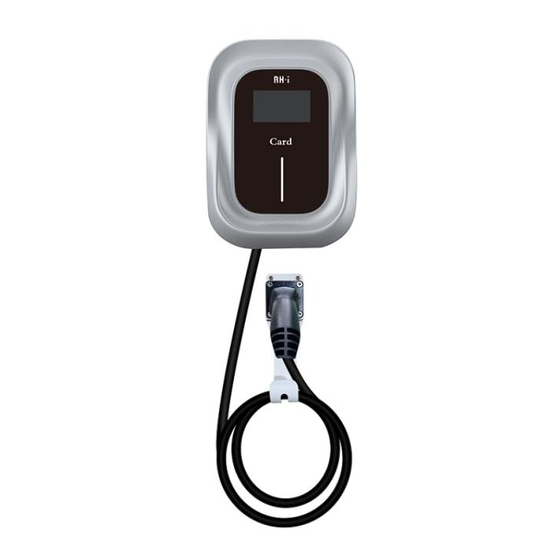

Summary of Contents for Ruihua X-EU Series
- Page 1 交流充电桩使用说明书 江西瑞华智能科技有限公司 X-EU 系列交流充电桩 使用手册 X-EU Series AC Charging Station User Manual 编制版本 V1.0 Edition Version V1.0 编制日期 2023 年 04 月 Edition Date April,2023 制造企业 江西瑞华智能科技有限公司 Manufacturer JiangXi Ruihua Intelligent Co.,Ltd...
- Page 2 本说明书只适用于本公司生产的 X-EU 系列电动汽车交流充电桩， 说明书的 内容会随控制软件和显示界面软件的升级而更新，恕不另行通知。请妥善保存 使用说明书以供日后参考。 For your proper and safe using X-EU series electric vehicle AC charging station produced by our company,and troubleshoot any mulfunctions in-time,Please carefully read the manual before use. This manual is only applicable to the X-EU Series Electric Vehicle...
-
Page 3: Table Of Contents
交流充电桩使用说明书 江西瑞华智能科技有限公司 目 录 Category 1.概述/Overview ..........1 2.遵循标准/Standard Compliant ........1 4.外观简述/Appearance Illustration ......2 5.技术参数/Parameter ..........2 6.主要器件清单 Main Components List ......4 7.主要功能/Main Function ........4 8.主要特点/Main Features: ........5 9.系统组成/ System Configuration ........7 10.充电桩使用说明及注意事项/ Instruction&Precaution .....8 10.1 插枪充/即插即充/Charging Gun&Plug and Play ..........8 10.2 单机刷卡充电/ Swiping Card Charging ..............9 10.3 指示灯定义/Indicator Definition .............. -
Page 4: 概述/Overview
交流充电桩使用说明书 江西瑞华智能科技有限公司 1.概述/Overview 交流充电桩是一种利用专用充电接口为具有车载充电机的电动汽车提供交 流电能，具有相应的控制功能的电动汽车专用交流供电装置。 AC Charging Station is one kind of power supply equipment using it’s particular charging interface to offer Alternative Charging Power for electric vehicles with on-board charger. And it has corresponding controlled functions. 2.遵循标准/Standard Compliant EN IEC 61851-1:2019 ... -
Page 5: 外观简述/Appearance Illustration
交流充电桩使用说明书 江西瑞华智能科技有限公司 4.外观简述/Appearance Illustration 5.技术参数/Parameter Parameter Model RHAC07K-X RHAC11K-X RHAC21K-X Power Supply 1P+N+PE 3P+N+PE 3P+N+PE Input Voltage 230V/AC±15% 400V/AC±15% 400V/AC±15% Input Input Current 3*16A 3*32A Frequency 50/60 Hz Output Voltage 230V/AC±15% 400V/AC±15% 400V/AC±15% Output Maximum Current 3*16A 3*32A Rate Power 11KW 21KW Charge Connector... - Page 6 交流充电桩使用说明书 江西瑞华智能科技有限公司 Communi Wifi cation Bluetooth OCCP 1.6 Json (OCCP 2.0 Upgradable) OCCP Energy Meter 6mA DC Ingress IP65 Protection Impact Protection IK10 Over current protection Residual current protection Safety Electrical Surge protection Protection Over/Under voltage protection Over/Under frequenty protection Over temperature protection Certification Certification...
-
Page 7: 主要器件清单 Main Components List
交流充电桩使用说明书 江西瑞华智能科技有限公司 6.主要器件清单 Main Components List 序号 名称/ Name 规格型号/Specification 数量/Qty 备注/Remark /Serial No 主控板/Main Board YX-C6-EU 急停按钮/Emergency LA139S stop button 充电枪/Charging Gun EVC2A-VC-32A-250V DMT48270C043-04WN C6-LED-DSQ IC 卡/IC card 读卡器/Reader YX-R1-V100 MC003U3-B2 7.主要功能/Main Function （1）智能自检、自识充电； Intelligent Self-Inspection, Intelligent Charging （2）智能判断充电接头是否已正确连接。当充电接头异常断开时，立刻停止输 出，以保证人身安全。... -
Page 8: 主要特点/Main Features
交流充电桩使用说明书 江西瑞华智能科技有限公司 （5）具有智能联网、掉网重联功能； Intelligent networking and re-connection function while offline. （6）支持多样充电方式：如扫码、刷卡、插枪充等； Support for various of charging methods: such as scanning code, swiping card, inserting guns for charging. （7）支持 4.3 英寸彩色显示功能； Support 4.3 inches color display function. 8.主要特点/Main Features: （1） 安全稳定： 本产品具有防雷保护、过欠压保护、漏电保护、过流保护、短路保护、过温... - Page 9 交流充电桩使用说明书 江西瑞华智能科技有限公司 人机交互采用全彩高清显示屏，可视化操作。支持 4G、WiFi、蓝牙、LAN 组 网方式，可用 APP 扫码操作； Intelligent and Easy to use Human-computer interaction adopts full color high-difinition display screen, visual operation, Support 4G,Wifi,Bluetooth,Lan network methods, scanning code through APP is also available. （4） 支持 OCPP1.6 j 协议； Support OCPP1.6 j protocol. （5）...
-
Page 10: 系统组成/ System Configuration
交流充电桩使用说明书 江西瑞华智能科技有限公司 9.系统组成/ System Configuration 系统组成示意图/Diagrammatic Sketch 电动汽车交流充电桩主要由主供电回路、人机交互部分、内部控制部分 三大功能模块组成。 The AC Charging Station of electric vehicle consists of three functional modules: the main power supply circuit, human-machine interaction part , and Internal control part. 主供电回路主要由输入漏电空开、输出控制、充电枪组成； The main power supply circuit consists of input leakage air switch, output control, and charging gun. -
Page 11: 充电桩使用说明及注意事项/ Instruction&Precaution
交流充电桩使用说明书 江西瑞华智能科技有限公司 The human-computer interaction part consists of intelligent indicator lights,Card readers, and display units,which’s used for setting parameters, and identifying charging cards etc. 内部控制模块由主控板、电源、控制保护单元、后台通讯组成，完成充 电过程的启动、运行、实时监控以及停止； The Internal control module consists of a main control board, power supply, control and protection unit, and background communication. completing the startup, operation, monitoring and stop for charging process. -
Page 12: 单机刷卡充电/ Swiping Card Charging
交流充电桩使用说明书 江西瑞华智能科技有限公司 10.2 单机刷卡充电/ Swiping Card Charging （1）充电桩待机界面如下图： Charging Station standby interface as below （2） 插枪后显示界面如下图： After inserting gun, display interface is as shown below 第 9 页 共 24 页... - Page 13 交流充电桩使用说明书 江西瑞华智能科技有限公司 （3） 按提示刷卡充电，刷卡成功后屏幕会跳转至如下界面： Follow prompts to swipe the card to charge. After card is swiped successfully, the screen will jump to following interface （4） 刷卡响应完毕，充电桩随即开启充电，显示界面如下图： After card is swiped and the response is completed, charging pile will start charging immediately, and display interface is as shown below 第...
-
Page 14: 指示灯定义/Indicator Definition
交流充电桩使用说明书 江西瑞华智能科技有限公司 （5）自动充满或终止充时，再次刷卡结算，结算界面如下图： When it is fully charged or terminated automatically, swipe the card again for settlement, and the settlement interface is as shown in the figure below 10.3 指示灯定义/Indicator Definition 序号/ 充电桩状态 指示灯颜色 指示灯动态 Serial Charging pile LED color Indicator dynamics Number status... - Page 15 交流充电桩使用说明书 江西瑞华智能科技有限公司 Please read the product manual carefully before using this device, and operate according to the instructions in this manual. （2）本产品不宜安装在易易燃、易爆气体的地方； This product should not be installed in places with flammable and explosive gases. （3）使用前物必确认各线路安装正常且牢固，并可靠接地； Before use, it must be confirmed that the installation of each line is normal and firm, and it is reliably grounded （4）拔插充电枪、枪缆时注意力度，切不可用力过猛；...
-
Page 16: 设备外形尺寸/Equipment Dimensions
交流充电桩使用说明书 江西瑞华智能科技有限公司 11.设备安装与储运/ Equipment installation and storage 11.1 设备外形尺寸/Equipment Dimensions 桩体外形尺寸图/Pile body size drawing 背部挂板尺寸图/ Back panel size drawing 第 13 页 共 24 页... -
Page 17: 设备电缆选型 Equipment Cable Selection
交流充电桩使用说明书 江西瑞华智能科技有限公司 立柱底座尺寸图/Column base size 立柱尺寸图/Column size 11.2 设备接线示意图 Equipment wiring diagram 设备接线示意图/ Schematic diagram of external wiring of charging pile 11.3 设备电缆选型 Equipment cable selection 1、应选用带阻燃 YJV 或 RVV 系列电缆， 电缆规格应根据现场实际情 况(距离、敷设方式等)选用： 第 14 页 共 24 页... -
Page 18: 设备的储运
交流充电桩使用说明书 江西瑞华智能科技有限公司 Should select YJV or RVV series cables with flame retardant , and cable specifications should be selected according to the actual situation on site (distance, laying method, etc.) 充电桩功率 建议电缆规格 序号 备注 Charging Recommended Cable Note pile power Specifications ZC-RVV 3*6-10mm 11kW... - Page 19 交流充电桩使用说明书 江西瑞华智能科技有限公司 应检查是否有损坏，如有运输损坏应与运输方及我司协商解决。开 箱后应立即核对箱内物品是否和装箱清单相符。 During transportation, main body of the charging pile should be packed firmly and intact in a solid packing box and the direction of loading and unloading should be marked, and the charging pile should not be stored and transported upside down. Corresponding fastening measures should be taken during transportation to avoid strong vibration and bumps from damaging the outer packaging of the equipment.
-
Page 20: 充电桩的维护保养与故障处理
交流充电桩使用说明书 江西瑞华智能科技有限公司 12.充电桩的维护保养与故障处理 Maintenance and troubleshooting of charging piles 12.1 维护/维修与保养 Maintenance/Repair and Maintenance （1）桩体易采用地脚螺栓固定， 防止桩体因外界、 人为等因素倾斜、 抖动。 Pile body is easily fixed with anchor bolts to prevent pile body from tilting and shaking due to external and human factors. （2）应对充电桩做好遮阳和防雨措施，室外建议安装遮雨棚... -
Page 21: 故障处理 Troubleshooting
交流充电桩使用说明书 江西瑞华智能科技有限公司 Pay attention to lightning protection to ensure effective shielding and reliable grounding of charging piles （7）使用时，尽量控制充电桩的输出电压和电流在标称的范围内， 保证充电桩以最大效率的状态工作。 When in use, try to control output voltage and current of the charging pile within nominal range to ensure that charging pile works with maximum efficiency. - Page 22 交流充电桩使用说明书 江西瑞华智能科技有限公司 Problem possible cause of the problem Solution 急停故障 急停按急被按下 复位急停按钮 Emergency stop The emergency stop button is reset emergency stop failure pressed urgently button 接地故障 未接地线或 L、N 线接反 检查线路 Ground Fault Ungrounded or L and N wires check line reversed 显示屏黑屏...
-
Page 23: 充电桩保修服务 Charging Pile Warranty Service
交流充电桩使用说明书 江西瑞华智能科技有限公司 13.充电桩保修服务 Charging pile warranty service 13.1．保修条件 Warranty conditions （1）产品出厂时，用户完全遵守本说明书规定的储存、安装和使用 规则而出现的质量问题； When product deliver from factory, user fully complies with storage, installation and use rules stipulated in this manual for quality problems; （2）产品出厂后，由于运输原因，用户在开箱检查时，发现产品或 配套件损坏； After the product deliver from factory, due to transportation reasons, user finds that product or accessories are damaged when unpacking and checking （3）因使用不当、非法改造、人为损坏、不可抗力等自然灾害引起... - Page 24 If there is any discrepancy between the contents of this manual and the actual object, please refer to the actual object 制造企业：江西瑞华智能科技有限公司 Manufacturer: Jiangxi Ruihua Intelligent Technology Co., Ltd. 生产基地：江西省九江市瑞昌市东环路 2 号 Manufacturer base: No. 2, Donghuan Road, Ruichang City, Jiujiang City, Jiangxi Province 服务热线/Service Hotline：0792-3603068...
