Instruction Manual
KOUZINA-KUCHENKA-KOMFYR
AND INSTALLATION INSPECTION IN YOUR AREA.
490, rue de l'Argon, Quebec (Quebec) Canada G2N 2C9
Phone.: 418-849-8095
www.jaroby.com
PLEASE READ CAREFULLY AND KEEP
THIS MANUAL FOR FUTURE REFERENCE
2020 U.S. Environmental Protection Agency's cord
Fax: 418-849-0077
Revision: 13
Certified to
ULC S627, UL 1482
ASTM E3053, ASTM 2515
CSA B415.1
wood emission standard
Printed in Canada
Advertisement
Table of Contents
Summary of Contents for J. A. Roby KOUZINA

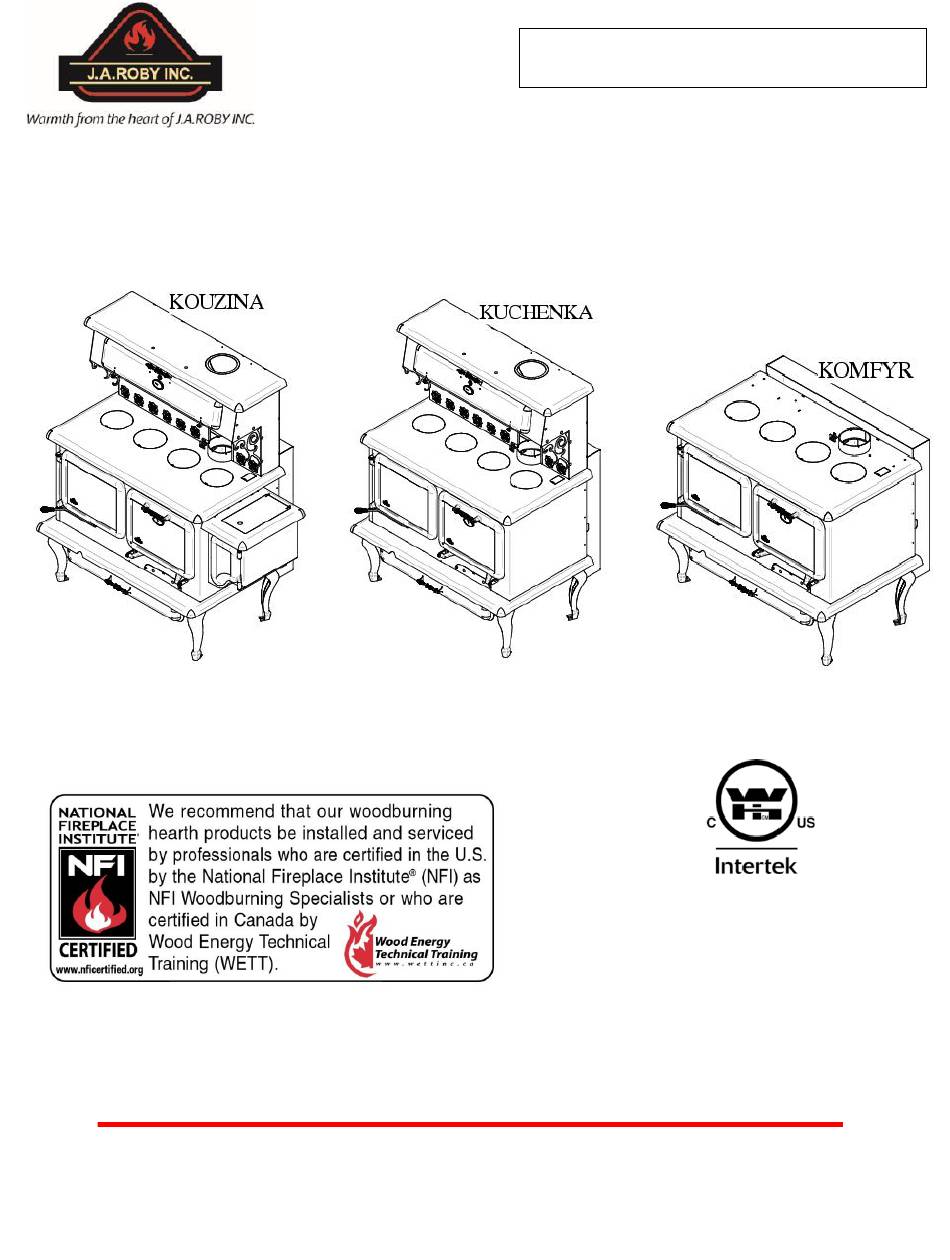

- Page 1 PLEASE READ CAREFULLY AND KEEP THIS MANUAL FOR FUTURE REFERENCE Instruction Manual KOUZINA-KUCHENKA-KOMFYR YOU CAN CONSULT A PROFESSIONAL INSTALLER OR ASK FIRE OFFICIALS OR LOCAL AUTHORITY ABOUT RESTRICTION AND INSTALLATION INSPECTION IN YOUR AREA. Certified to ULC S627, UL 1482 ASTM E3053, ASTM 2515 CSA B415.1...
-
Page 2: Table Of Contents
Exterior Air Intake pipe ............20 Annexe 2 ................29 Installation of Air Intake Pipe ......... 20 Replacement parts ............. 29 Air Inlet Obstruction ............20 J. A. Roby Limited Lifetime warranty ........30 Stainless steel tubes replacement .......... 21 PR_I014/2023-02-06-EN Revision:13... -
Page 3: Introduction
Introduction Save these instructions. Please read all the instructions BTU & Efficiency Specifications carefully before installing your new J. A. ROBY Kouzina, • LHV efficiency : 77.75% Kuchenka or Komfyr cook stove. A proper installation is • HHV efficiency :72.26 very important for a safe and effective use of your stove. -
Page 4: Rating Plate
Rating plate PR_I014/2023-02-06-EN Revision:13... -
Page 5: Appliance Dimensions
Appliance dimensions PR_I014/2023-02-06-EN Revision:13... -
Page 6: Specification
Specification Option Kouzina Kuchenka Komfyr Combustible Wood Wood Wood Recommended 1000 > 3000 ft² 1000 > 3000 ft² 1000 > 3000 ft² Surface area Cooking lids / Cast iron corners Capacity 55 107 BTU/h 55 107 BTU/h 55 107 BTU/h... -
Page 7: Installation
Cook stove with or without water tank Installation WARNING ALWAYS USE J.A. ROBY PARTS on your appliance. Using other differences parts can damage the appliance and cause injury. Floor protection Your stove must be installed on a plate of non-combustible material to protect the floor and avoid fire caused by: •... -
Page 8: Minimum Clearances To Combustible Material
This appliance needs a minimum space because of these reduced clearances. Whether in the living room or the dining room, the Kouzina, Kuchenka and Komfyr cook stove will match perfectly by its originality and heating. For the double wall pipe in Canada and USA, the minimum clearance at the back is 11 1/4 inches (28.6 cm) and the... -
Page 9: Assembly Before Installation
Assembly before installation The stove leg and the warming oven top might not be assembled in the factory, in order to save space for transportation and storage. You must therefore assemble these parts before installing the cook stove. Legs Assembly Put the cook stove on the back. -
Page 10: Firebricks Installation
Firebricks installation Floor firebricks installation (With ash plug) Side firebrick installation Put 4 Bricks «A» near to the back wall and 1 brick «P and Q» Put 4 bricks "A" and 1 brick “G” as shown. in front of bricks “A”. Back firebrick installation Put 8 bricks «A»... -
Page 11: Firebrick Installation On The Pipes
Insert the 3 bricks “Y” between the pipes and the Firebrick installation on the pipes rockwool(2) Put two half-round steel disks over the rockwool near the The firebricks must be put on the 3 pipes from the front of rear deflector (3) already in place. Be sure to put it under combustion chamber. -
Page 12: Firebox Configuration & Part List
Firebox configuration & part list 1) 2 half-disk metal steel plates 2) 1 rock wool insulating blanket 3) 3 Ø 3⁄4 ’’x 15 ’’ pipes with holes on a single side 4) 2 Ø 3⁄4 ’’ x 15 ’’pipes with bigger holes on both side 5) 1 screw and bricks support 6) 1 air pilot 7) 1 ash plug... -
Page 13: General Steps Of Stove Installation
General steps of stove installation Install the chimney following the manufacturer Read the entire installation manual before installing instructions. and using your stove. Put the stove on the floor aligned vertically with the Choose a place to install your cook stove. Read the center of chimney and trace the 4 sides of the stove sections about dimensions of floor protection panel, vertically on the floor. -
Page 14: Chimney Connector Installation
Insert entirely the roll formed end into the stove collar and screwing it with a minimum of 3 screws. Chimney connector installation The chimney connector is a set of single flue pipes and elbow installed between the stove collar and the chimney collar. Components of single wall chimney connector are available at any hardware store and there is no precise standard or regulation. -
Page 15: Installation In A Transportable Building
Installation in a transportable building DO NOT INSTALL THIS APPLIANCE IN A TRANSPORTABLE BUILDING. Use of smoke detectors and carbon monoxide monitors To provide reasonable fire prevention, the following should be given serious consideration: At least one smoke detector on each floor of your home should be installed to ensure your safety. -
Page 16: General Steps Of Chimney Installation
Use only approved chimneys of the same size as the output of the appliance, which means 6 inches in the case of Kouzina, Stack the prefabricated chimney sections on the Kuchenka and Komfyr. The chimneys... -
Page 17: Vertical Installation Inside Masonry Chimney
Vertical Installation inside Masonry Outside Vertical Installation Chimney The appliance must be installed in accordance with the applicable local laws or the CAN/CSA-B365, NFPA 211 The appliance must be installed in accordance with the (USA). Follow the chimney manufacturer’s instructions to applicable local laws or the standards such as ULC-S635, ULC- install the chimney. -
Page 18: Vertical Installation On Cathedral Roof
Vertical Installation on Cathedral Roof Offset Vertical Installation The appliance must be installed in accordance with the The appliance must be installed in accordance with the applicable local laws or the CAN/CSA-B365, NFPA 211 (USA). applicable local laws or the CAN/CSA-B365, NFPA 211 (USA). Follow the chimney manufacturer’s instructions to install the Follow the chimney manufacturer’s instructions to install the chimney. -
Page 19: Vertical Installation
Vertical Installation The appliance must be installed in accordance with the applicable local laws or the CAN/CSA-B365, NFPA 211 (USA). Follow the chimney manufacturer’s instructions to install the chimney. PR_I014/2023-02-06-EN Revision:13... -
Page 20: Combustion Air Intake
Combustion air intake Installation of Air Intake Pipe To install the exterior air intake pipe, insert the pipe into the air In conventional designed homes, natural ventilation is enough entry and put hose clamp to fix the 4 inches pipes. Put a to operate the wood stove efficiently. -
Page 21: Stainless Steel Tubes Replacement
Stainless steel tubes How to install tubes replacement Insert the tube into the round hole in the hot air corridor (beginning of the back of the heat chamber) Although the tubes are in stainless steel, with extreme Insert the other side in the corresponding hole of the temperature and conditions, the tubes are eventually corroded hot air corridor. -
Page 22: Operating Instructions
IT IS PROHIBITED TO MODIFY THE AIR ADMISSION TO Operating Instructions OBTAIN HIGHER HEAT OR FOR ANY OTHER REASON. Operating instruction according to ALT-125, ASTM E3053, cordwood High burn rate • Start the fire with approximately 4.3 lbs (18 Kg). of startup fuel, 2.8 lbs (0.9 Kg). -
Page 23: First Fire
Tilt the handle to the outside and lift up the opposite First fire side of the cooking hole cover. For the first hours of operation, you must heat your appliance Lift the cover and place it by the hole. gradually. In order to allow an appropriate baking of the paint and to facilitate its adhesion with metal, do not heat the Bring back the handle to safe position. -
Page 24: Usage Of Oven For Cooking
Usage of oven for cooking Wood storage The CUISINIERE cook stove can cook food in the oven part. The heat is transferred from the wall between the stove and the oven. Keep wood 36 inch (91cm) away from the cook stove. To accelerate the heating, there is a deflection damper right by NEVER STORE WOOD UNDER THE COOK STOVE. -
Page 25: Creosote Formation
Keeping the door pressed against the stove, tighten the upper hinge. Creosote Formation Loosen lightly lower hinge. When wood is burning slowly, it produces tar and other organic Push the door against the stove so that the glass fibre vapors which are combined with expelled moisture to form rope is flattened. -
Page 26: Replacing Broken Glass
Replacing broken glass Glass fiber rope installation • Put a high temperature sealant in the clean groove to Do not hit the glass to avoid breaking it. • glue the glass fiber rope. Do not pour water. It might cause thermal shock. •... -
Page 27: Annex 1
Annex 1 Door assembly Wood Stove Door *The same assembly for an arc wood stove PR_I014/2023-02-06-EN Revision:13... -
Page 28: Oven Door
Oven Door PR_I014/2023-02-06-EN Revision:13... -
Page 29: Annexe 2
Annexe 2 Replacement parts • Bricks • Stove ceramic glass • Tempered glass oven door • Spring Handle • Stove door • Oven door • Fans • Flat glass fiber rope (around glass) • Round glass fiber rope • Ash plug •... -
Page 30: J. A. Roby Limited Lifetime Warranty
WOOD BURNING STOVES & FIREPLACES J. A. ROBY’s warranty only applies to original buyer and is non-transferable. This warranty covers brand new products only, which have not been altered, modified nor repaired since shipment from factory. The products covered by this warranty must be manufactured after review date indicated at the bottom of page.
