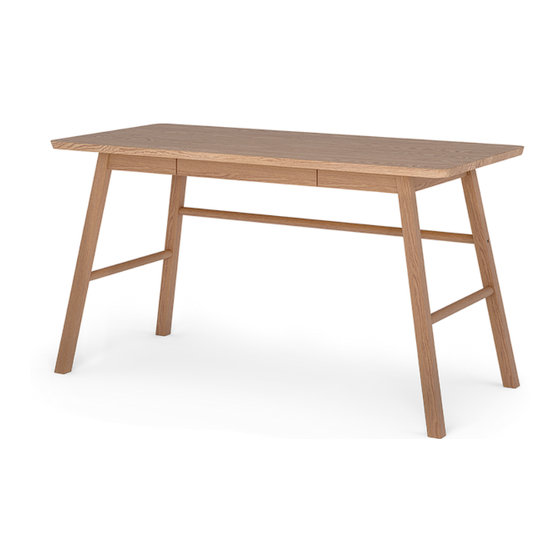

SOHO - Table

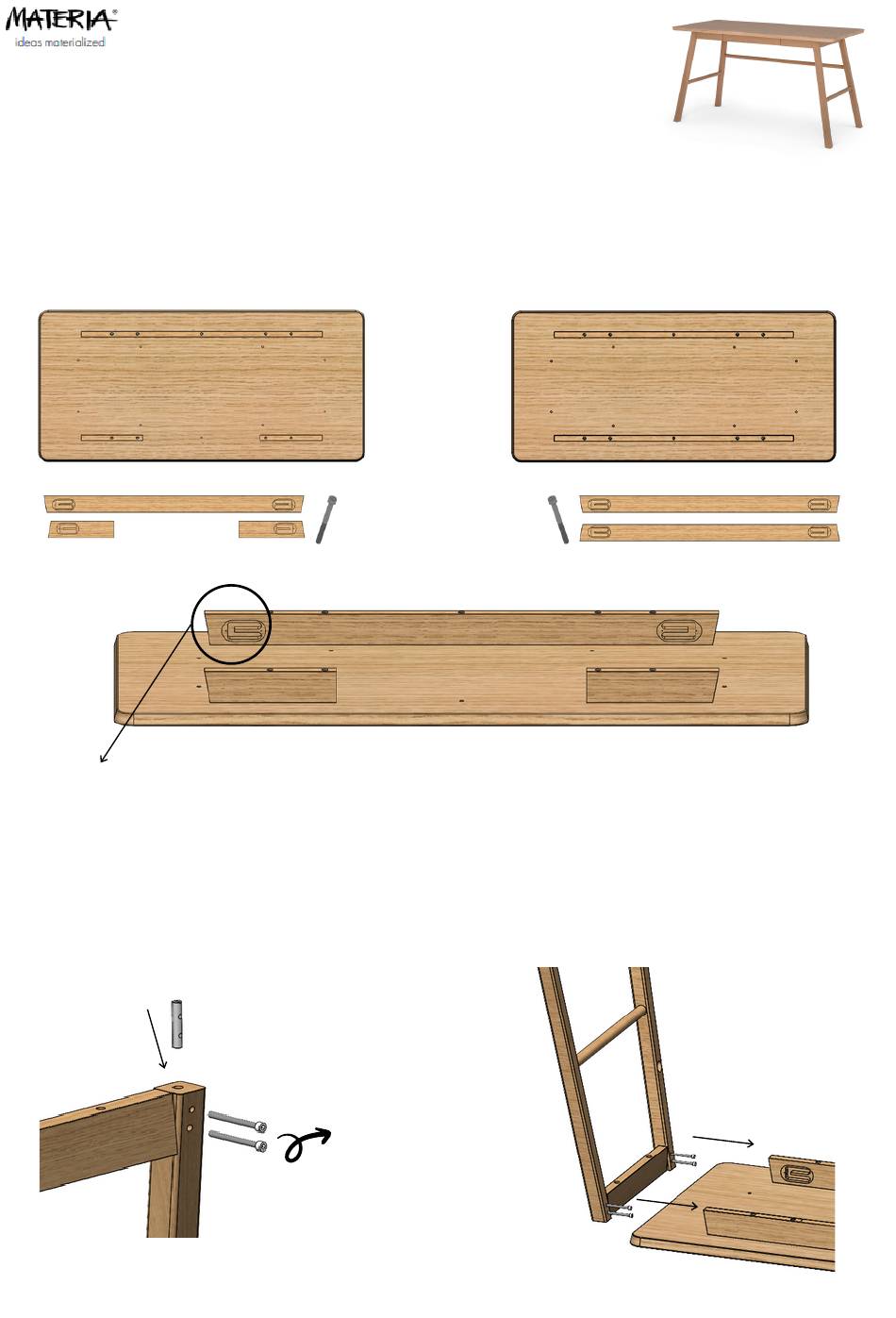

Step 1
Turn the table top up side down and attach the wood beams with screw M6x70. Don't tighten
the screws all the way, we come back to that later.
With drawer
NOTE! Make sure that the cut outs are facing inwards. Notice that the edges are angled, the
widest part should face away from the table top.
Step 2
There are two premounted steel inserts with treads
(sargsprint) in each leg frame. Attach 2x screw M6x70
to each.
4 x
M6x70
x9
3 x
Max three turns!
Without drawer
M6x70
x10
Step 3
Insert the leg frames
2 x
Advertisement
Summary of Contents for MATERIA SOHO
- Page 1 SOHO - Table Step 1 Turn the table top up side down and attach the wood beams with screw M6x70. Don’t tighten the screws all the way, we come back to that later. With drawer Without drawer M6x70 M6x70 NOTE! Make sure that the cut outs are facing inwards. Notice that the edges are angled, the widest part should face away from the table top.
- Page 2 Step 4 Step 5 Insert steel washer. Before you tighten the screws on both leg frames make sure to put the round wood beam between the leg frames. If you have a drawer the round wood beam should be on the opposite side of the drawer.
- Page 3 Step 9 Step 10 Attach gliders. Attach the metal covers, use 2x screw UKT 3x10. If you have a drawer, continue to next side. If you don’t have a drawer your table is Tighten once again compleated. After 3 months...
- Page 4 Step 11 Attach the drawer to the table top, use 4x screw K6SM M6x50. Try to find the right position before you tighten the screws. There should be equal space between the drawer and the wood beams on both sides. The drawer should also have the same depth and height.
- Page 5 2. Open the drawer and loosen the screws that attach the steel drawer slides to the wood beams and move it to a disirable position.
