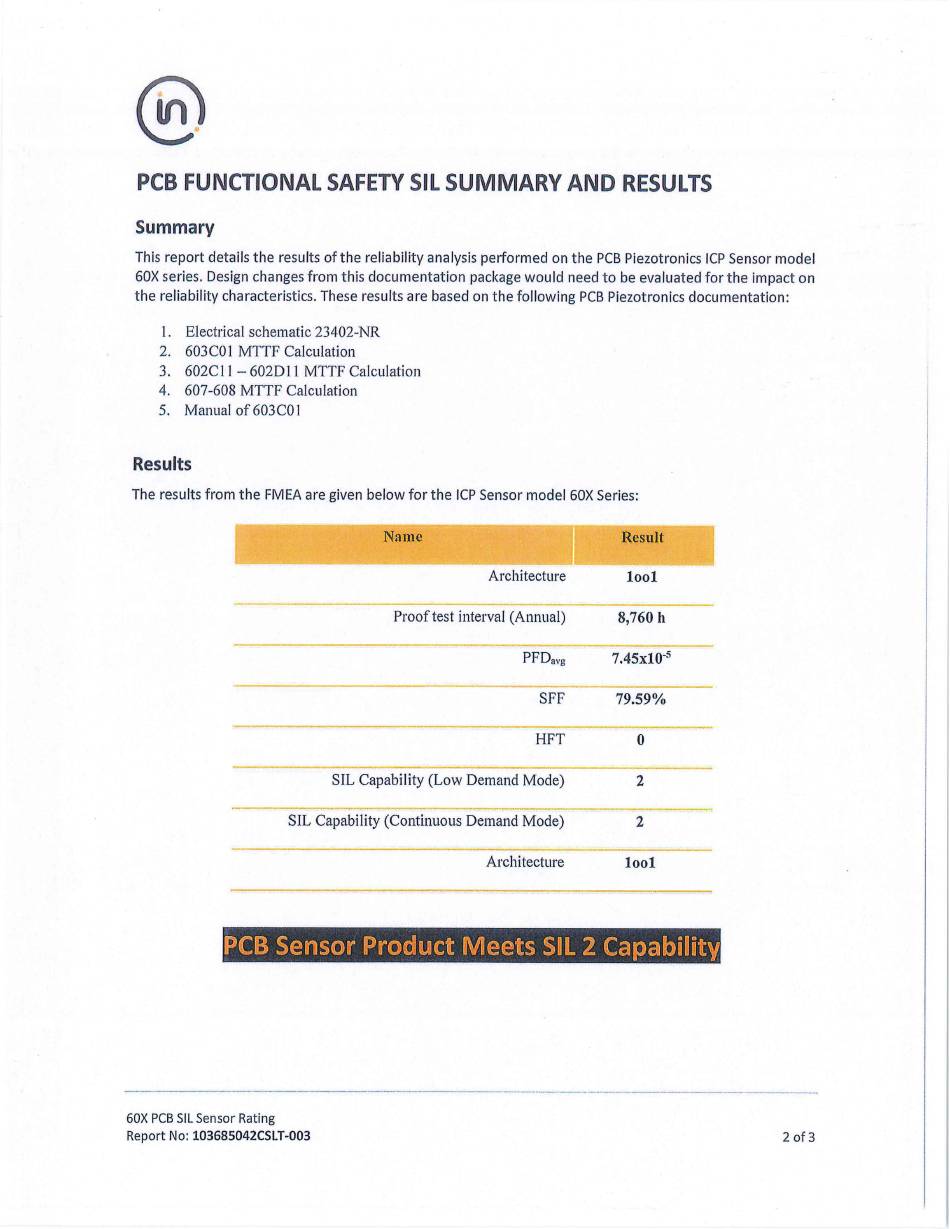

PCB FUNCTIONAL SAFETY SIL SUMMARY AND RESULTS
Summary
This report details the results of the reliability analysis performed on the PCB Piezotronics ICP Sensor model
60X series. Design changes from this documentation package would need to be evaluated for the impact on
the reliability characteristics. These results are based on the following PCB Piezotronics documentation:
1. Electrical schematic 23402-NR
2. 603C01 MTTF Calculation
3. 602C1 I
-
602D1 1 MTTF Calculation
4. 607-608 MTTF Calculation
5. Manual of603C0I
Results
The results from the FMEA are given below for the ICP Sensor model 60X Series:
Name
Result
Architecture loot
Proof test interval (Annual)
8,760 h
PFDavg 7.45x10 5
SFF
79.59%
HFT 0
SIL Capability (Low Demand Mode)
2
SIL Capability (Continuous Demand Mode)
2
Architecture
1001
60X PCB SL Sensor Rating
Report No: 103685042CSL1-003
