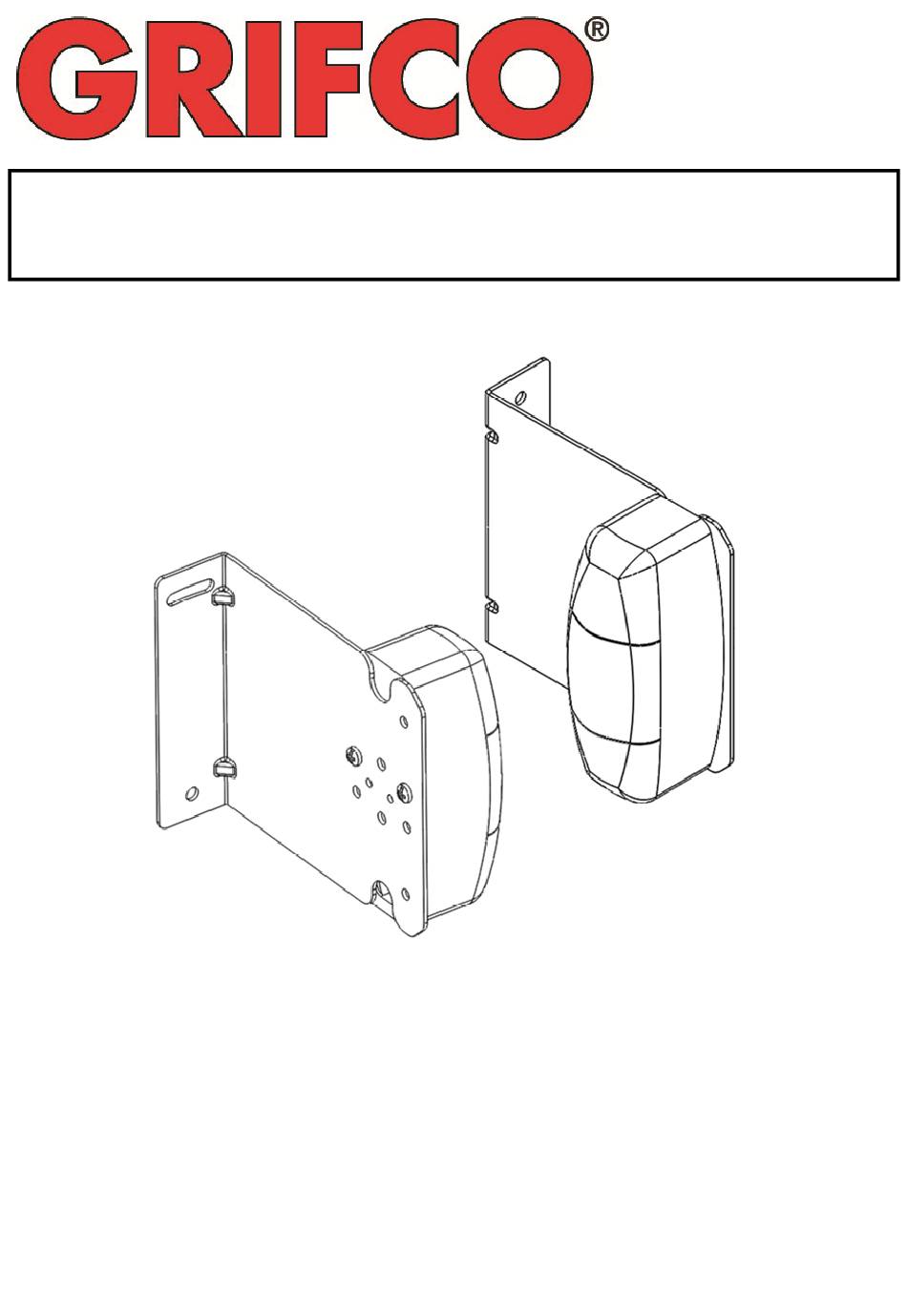

GPS772
installation and users manual for
GPS772 Monitored Send / Receive
IR Beams
www.grifco.com.au
www.grifco.co.nz
D-M-ACG-072A
Send/Receive IR Beams
Chamberlain Australia Pty Ltd
PO Box 1446, Lane Cove
NSW 1595, Australia
Phone toll free 1800 474 326
Chamberlain New Zealand Ltd
PO Box 100-221
North Shore 0745, New Zealand
Phone toll free 0800 653 667
300117
Advertisement
Table of Contents
Summary of Contents for Grifco GPS772
- Page 1 GPS772 Send/Receive IR Beams Chamberlain Australia Pty Ltd installation and users manual for PO Box 1446, Lane Cove GPS772 Monitored Send / Receive NSW 1595, Australia Phone toll free 1800 474 326 IR Beams Chamberlain New Zealand Ltd PO Box 100-221 www.grifco.com.au...
-
Page 2: Safety Symbol And Signal Word Review
Safety Symbol and Signal Word review This Monitored IR Beam system has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual. WARNING When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the possibility of serious injury or death if... - Page 3 INTRODUCTION Congratulations on your purchase of the Grifco® GPS772 Monitored Send / Receive IR Beam. This accessory will provide a failsafe detection system to signal the door to reverse upon an obstruction. PLANNING The Grifco® GPS772 Monitored Send / Receive IR Beam is compatible with all eDrive models, and any Grifco electronics featuring Security +2.0 radio on board.
- Page 4 An electrician must disconnect electric power to the commercial door opener and control before removing or opening covers. Mount the Grifco® GPS772 Monitored Send / Receive IR Beams to the wall in the orientation as shown below using the fasteners provided.
- Page 5 CAUTION: Power must be OFF at the Main Control Board before proceeding with connection! After mounting, you are ready to connect the Grifco® GPS772 Monitored Send / Receive IR Beam. Remove the covers by gently using a flat bladed screw driver to release the clip from the top of the assembly as shown below.
- Page 6 ALIGNMENT AND SET UP Adjust via brackets for “tilt” Adjust via lenses for “pan” (remove covers and adjust as shown below) Ensure these two screws are tight after alignment Fig. 1 Fig. 2 Note: The lense assembly can be indexed to align or allow mounting to side walls where necessary.
-
Page 7: Operation
MAINTENANCE To ensure trouble free operation of the GPS772, ensure the lense cover is wiped down with a clean cloth each month or as required in certain environments. Dust, insect webs and other foreign material can interfere with the correct operation of the GPS772 if the above is not followed. -
Page 8: Accessories / Expansion
GPS15RK – Above including 2 x E945G transmitters Send / Receive type also available: GPS772 – Send/Receive beam kit GPS772RK - Above including 2 x E945G transmitters - Call 1800 GRIFCO for assistance with any of the above accessories, or other enquiries -... - Page 9 NOTES...
- Page 10 NOTES...
- Page 11 NOTES...
-
Page 12: Chamberlain Limited Warranty
Chamberlain’s warranty Chamberlain warrants to the original purchaser of the Grifco product (Unit) that: 1 The Unit (excluding the electric motor) is free from defects in materials and workmanship for a period of 24 months from the date of purchase.
