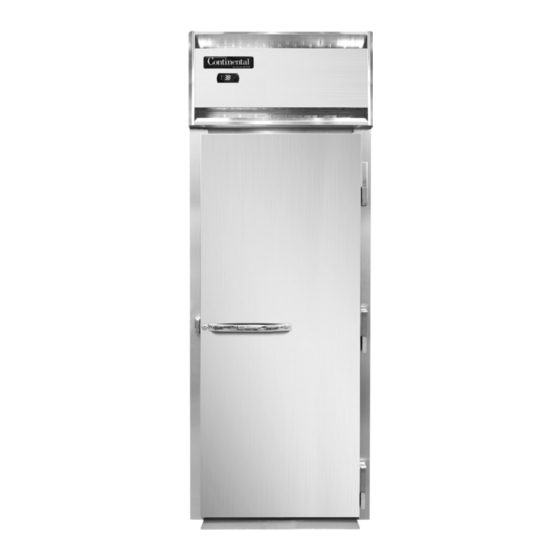

Continental Refrigerator DL3WE-SA-PT Installation And Operation Manual

Reach-ins & roll-ins (including pass-thru & roll-thru models) refrigerators, freezers & warmers
Hide thumbs
Table of Contents

Advertisement

Quick Links

INCLUDES
R290
MODELS
Please fill in the following information for your NEW unit, carefully
read the instructions in this manual and file it for future reference.
MODEL NO.
SCAN this code
to download manual
SERIAL NO.
PURCHASED FROM
INSTALL DATE
INSTALLATION AND OPERATIONS MANUAL
Reach-Ins & Roll-Ins
(Including Pass-Thru & Roll-Thru Models)
Refrigerators, Freezers & Warmers
1-800-523-7138
Continental Refrigerator
A Division of National Refrigeration
& Air Conditioning Products, Inc.
539 Dunksferry Road
Bensalem, PA 19020-5908
P 215-244-1400
F 215-244-9579
www.continentalrefrigerator.com
