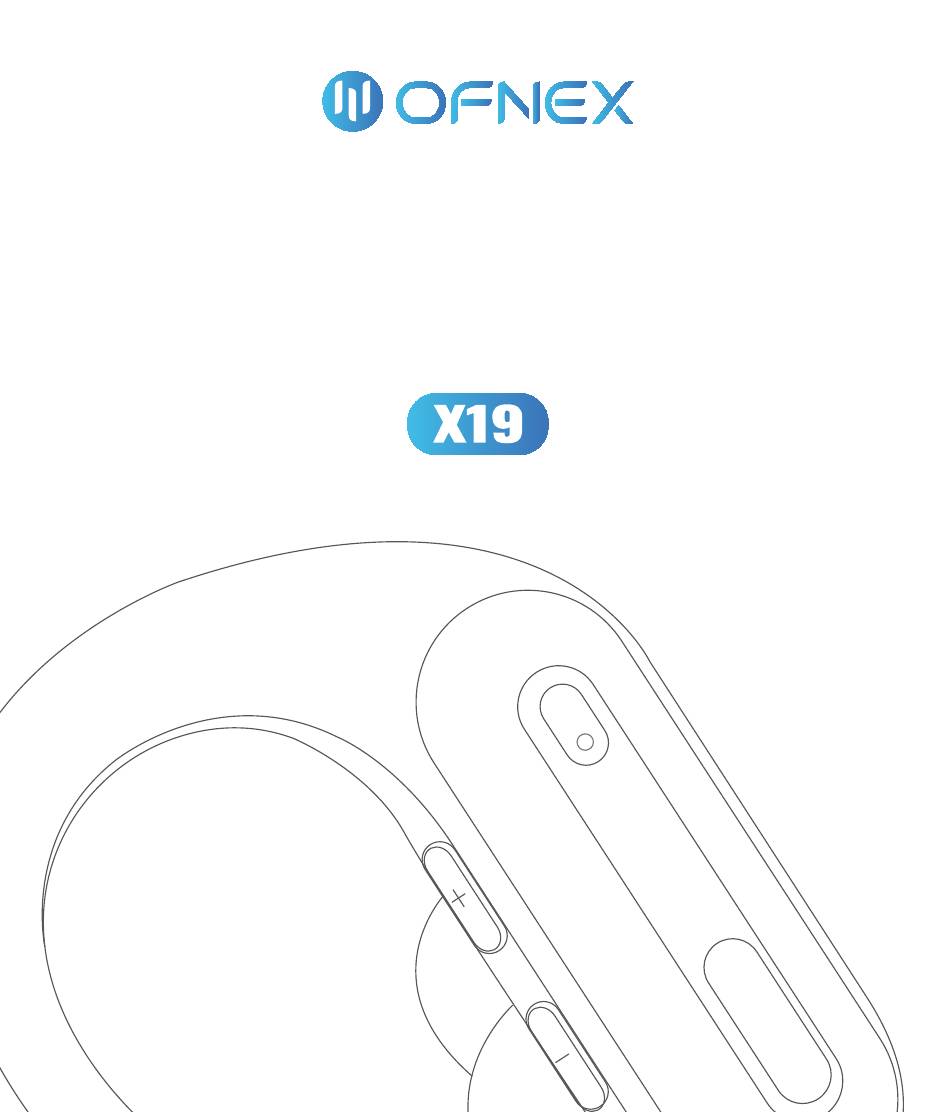

- Page 1 USER MANUAL...
-
Page 2: Customer Service
Earphones ×1 Pair Ear Tips ×4 Pairs Charging Case ×1 User Manual ×1 Type-C Charging Cable ×1 Specification Model Name: X19 Bluetooth Version: V5.3 Support: AAC/A2DP/HFP/HSP/AVRCP Transmission Range: 33 feet(without obstacle) FCC ID: 2ATJ2-X19 Input: 5V Charging Time: about 2H Headphones Battery Capacity: 50mAh Charging Case Battery Capacity: 3.7V 600mAh/2.22Wh... -
Page 3: Product Overview
Product Overview Reset Button Charging Case Type-C Power Display Charging Port Earbud Charging Pins Power Display Earbud LED Light/ Charging Built-in Mic Contact Volume +/- Button Ear Tips Multi-function Flexible Button(MFB) Ear Hook Please kindly note that the wireless charging area is on the bottom of the charging case. - Page 4 Multi-function Operations MFB Button MFB Button For Music Play/Pause Click MFB Button Once on L/R Earbud Next Track Click "+" once on L/R Earbud Last Song Click "-" once on L/R Earbud Volume+ Long Press "+" Button on L/R Earbud Volume- Long Press "-"...
- Page 5 Siri Double-click MFB Button on L/R Earbud Note: The X19 is equipped with an advanced chip for single-ear control, thus you can always control all functions from one earbud. Caution 1. Please remove the protective film before use, otherwise the headphone will not be able to start and charge.
- Page 6 2. Choose suitable ear tips & Wear correctly to enhance sound quality. 3. Please clean the magnet charging contact on earbud and charging pin on the charging case with alcohol wipes if the headphones can't be charged. Charging Contacts Charging Pin To fix charging issue 4.
-
Page 7: How To Charge
How to Charge ? Type-C Charging Place earbuds into charging case properly, then use the included USB-C charging cable to connect the charging case, and plug the other end into power supply with a 5V/1A adapter (not included), they will start charging. - Page 8 LED Power Display Show the remaining battery percentage of charging case from 0-100. "0" means charging case need charging while "100" means the charging case is fully charged. Flash down and up when earbud is charging; Stop flashing when earbud is fully charged. Earbud’s LED light: light up means "being charged", light...
- Page 9 For first time pairing: Activate Bluetooth setting on your phone, search and connect "X19". For the second time use, when you take out the earbuds from the charging case, they will connect to your device automatically. Note: If the earbuds are not connected to your device over 5 minutes, the earbuds will power off automatically.
-
Page 10: Single Mode
Thus, if you want to pair them with other device, you should disconnected "X19" from the last paired device, then search and connect "X19" on your new device, it will work properly. Single Mode You can leave one earbud in the charging case and use one earbud alone. -
Page 11: How To Reset
When you can’t find "X19" on your device Occur connection issues. How to reset? 1. Delete all "X19" on your phone and deactive the bluetooth setting. 2. Put the two earbuds in the charging case, keep them in the charging statu. -
Page 12: Fcc Caution
How to sync volume on Android? To protect users from potential hearing damage, Android’s limit on max volume is quite low for Bluetooth audio devices. If you feel the volume is too low, please access developer options and enable absolute volume, so you ‘ll able to max the volume at your own volition and to the full capabilities of your Bluetooth earphones.
