Summary of Contents for CAVU ATI LOG-IC 360

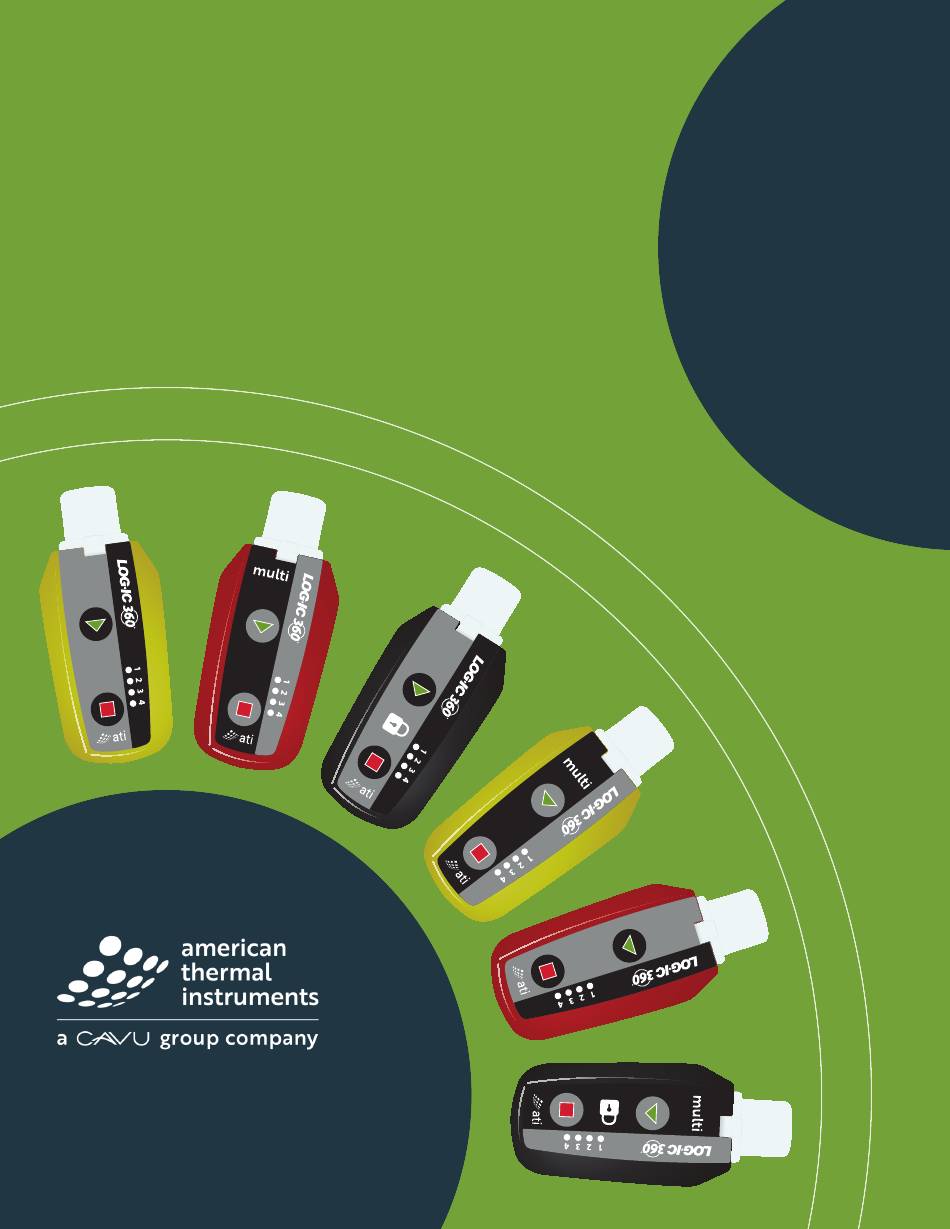

- Page 1 LOG - IC 360 USB DATA LOGGER USERS GUIDE AMERICANTHERMAL.COM 937.429.2114 | INFO@AMERICANTHERMAL.COM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GETTING STARTED ....................... 3 - 4 System Requirements & Software ............................3 Configure, Re-configure, or Modify Your Logger Settings ...................4 USING A PRE - CONFIGURED LED LOGGER ............5 - 6 Starting & Stopping the Logger..............................5 Reading the LED Indicators ................................6 CONNECTING TO THE DEVICE &... -
Page 3: Getting Started
Windows or Mac-based operating systems I - PLUG MANAGER SW-IPST8 Windows-based operating systems only SN/45002004 LOG-IC PDF Loggers are easily programmable using our cloud platform CAVU Hub. You must be on a Windows-based operating system to install the LOG-IC Connect agent. -
Page 4: Configure, Re-Configure, Or Modify Your Logger Settings
SN/45002004 1. Navigate to LOG-IC Connect within CAVU Hub 2. Download and install the latest version 3. CAVU Hub will indicate when the LOG-IC PDF logger can be plugged in CONFIGURING OR MODIFYING SETTINGS 1. Plug-in the LOG-IC PDF Logger 2. -
Page 5: Using A Pre - Configured Led Logger
USING A PRE - CONFIGURED LED LOGGER LED INDICATORS STARTING & STOPPING THE LOGGER STARTING THE LOGGER When you are ready to actively track temperature with your logger: 1. Press and hold the START button until all 4 LED’s flash, releasing when the GREEN is active (approximately 5 seconds). -
Page 6: Reading The Led Indicators
USING A PRE - CONFIGURED LED LOGGER READING THE LOGGER If you press the START button at any time, LED indicators give valuable information about your temperature data: MEANING LED INDICATORS READY STATE | 4 Blinking LED Indicators Device has not been started. NOTE: When the device is in this state, only the start button is active. -
Page 7: Connecting To The Device & Retrieving The Data
CONNECTING TO THE DEVICE & RETRIEVING THE DATA SW-IPST8-D SN/45002004 Upon plugging in to any USB port, the LOG-IC PDF logger will be detected as a USB drive and will be recognized without any additional software. Do not plug in the logger unless you are ready to stop the device.
