HENDI 221099 - CITRUS JUICER Manual

Technical specifications

Remark: Technical specification is subjected to change without prior notification.

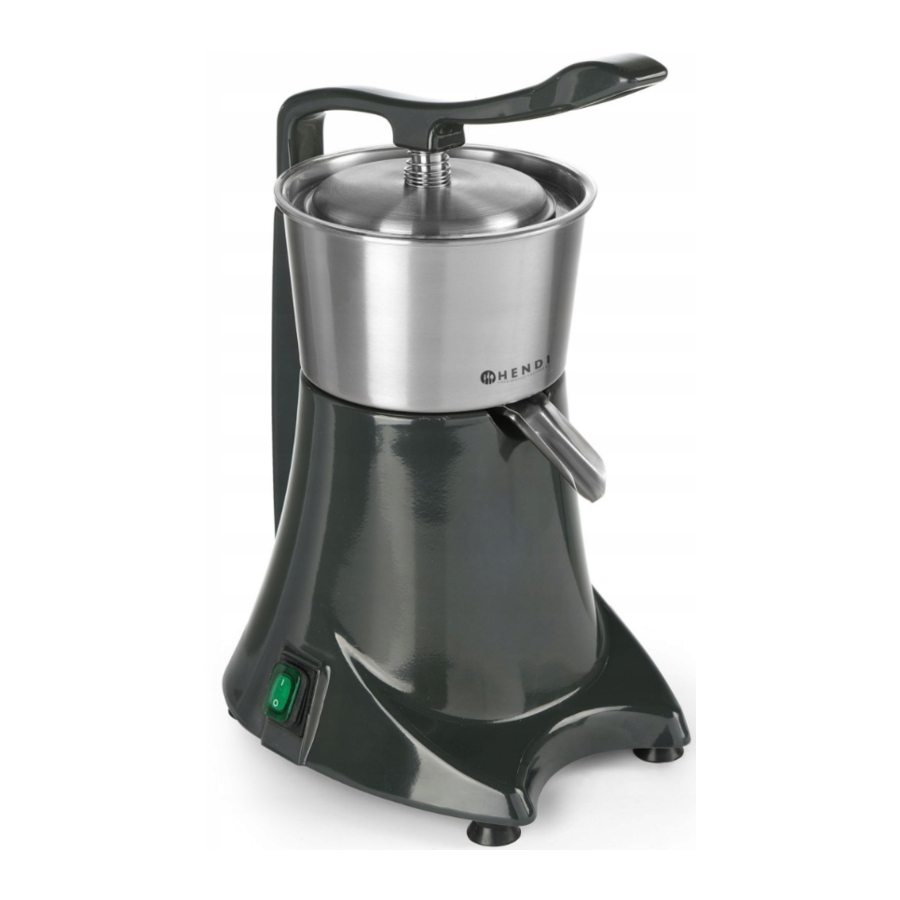

Main parts of the product

(Fig.1)

1. Handle
2. Lid
3. Casing
4. Block juice cover
5. Cone
6. Bowl
7. Motor base
8. Switch

Remark: The content of this manual applies for all listed items unless specified otherwise. The appearance may vary from the shown illustrations.

Preparation before use

• Remove all protective packaging and wrapping.
• Check that the device is in good condition and with all accessories. In case of incomplete or damaged delivery, please contact the supplier immediately. In this case, do not use the device.
• Clean the accessories and the appliance before use (See ==> Cleaning & Maintenance).
• Make sure the appliance is completely dry.
• Place the appliance on a horizontal, stable and heat resistant surface that is safe against water splashes.
• Keep the packaging if you intend to store your appliance in the future.
• Keep the user manual for future reference.

NOTE! Due to manufacturing residues, the appliance may emit a light odor during the first few uses. This is normal and does not indicate any defect or hazard. Make sure the appliance is well ventilated.

Operating instructions

• Connect the power plug to a suitable electrical outlet.
• Switch on the power switch to the position "I". Green indicator lights up.
• Align the centre of the fruit with the juicer head. And put the handle down. Press the handle down with some force to make juicer head rotate.
• Repeat above operation and change to another fruit if no more juice coming out from the spout.

Note:

1. Empty the cone regularly to avoid overflow or jamming.
2.
   Kitchen utensils should not be used under any circumstances to push the fruit into the appliance. This will damage to the appliance.

Overheat protection
There is a built-in motor thermal cut-out to protect the motor from overheating.

• When the motor is running very slowly or it stops, this thermal cut-out activates.
• To reset it, switch OFF the appliance to the "0" position and unplug it.
• Leave the appliance for cooling down for about 30 minutes.
• Then, the appliance can be used again after switch ON.

Cleaning & maintenance

• ATTENTION! Always disconnect the appliance from the power supply and cool down before storage, cleaning & maintenance.
• Do not use water jet or steam cleaner for cleaning and do not push the appliance under the water as the parts will get wet and electric shock might be resulted.
• If the appliance is not kept in a good state of cleanliness, this can adversely affect the life of the appliance and result in a dangerous situation.
• Food residues should be regularly cleaned and removed from the appliance. If the appliance is not cleaned properly, it will reduce its lifespan and may result in a dangerous condition during use.
•
  DANGER OF INJURY! Care should be taken when handling the sharp cutting blades during cleaning.

Cleaning

• Clean the cooled exterior surface with a cloth or sponge slightly dampened with a mild soap solution.
• For reasons of hygiene, the appliance should be cleaned before and after use.
• Avoid water contacting the electrical components.
• Clean the inside of container with a non-abrasive detergent and rinse with clean water.
• Never immerse the appliance in water or other liquids.
• No parts are dishwasher safe.

Maintenance

• Check the operation of the appliance regularly to prevent serious accidents.
• If you see that the appliance is not working properly or that there is a problem, stop using it, switch it off and contact the supplier.
• All maintenance, installation and repair work must be carried out by specialised and authorised technicians, or recommended by the manufacturer.

Transportation and Storage

• Before storage, always make sure that the appliance has been disconnected from the power supply and completely cooled down.
• Store the appliance in a cool, clean and dry place.
• Never place heavy objects on the appliance as this could damage it.
• Do not move the appliance while it is under operation. Disconnect the appliance from power supply when moving and hold it at the bottom.

Troubleshooting

If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the supplier/service provider.

Safety instructions

• Only use the appliance for the intended purpose it was de-signed for, as described in this manual.
• The manufacturer is not liable for any damage caused by incorrect operation and improper use.
•
  RISK OF ELECTRIC SHOCK! Do not attempt to repair the appliance by yourself. Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.
• NEVER USE A DAMAGED APPLIANCE! Check the electrical connections and cord regularly for any damage. When damaged, disconnect the appliance from the power supply. Any repairs should only be carried out by a supplier or qualified person to avoid danger or injury.
•
  When positioning the appliance, route the power cable safely if necessary to avoid unintentional pulling, being damaged, coming into contact with the heating surface, or causing a tripping hazard.
•
  As long as the plug is in the socket the appliance is connected to the power supply.
•
  ALWAYS switch off the appliance before disconnecting from the power supply, cleaning, maintenance or storage.
• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.
• Do not touch the plug/electrical connections with wet or damp hands.
• Keep the appliance and electrical plug/connections away from water and other liquids. If the appliance falls into water, remove the power supply connections immediately. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.
• Connect the power supply into an easily accessible electrical outlet so you can disconnect the appliance immediately in case of emergency.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.
• Never carry the appliance by its cord.
• Never try to open the housing of the appliance yourself.
• Do not insert objects into the housing of the appliance.
• Never leave the appliance unattended during use.
• This appliance should be operated by trained personnel in kitchen of the restaurant, canteens or bar staff, etc.
• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.
• This appliance should, under any circumstances, not be used by children.
• Keep the appliance and its electrical connections out of reach of children.
• Never use accessories or any extra devices other than those supplied with the appliance or recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.
• Do not operate this appliance by means of an external timer or remote-control system.
• Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.).
• Do not cover the appliance in operation.
• Do not place any objects on top of the appliance.
• Do not use the appliance near any open flames, explosive or flammable materials. Always operate the appliance on a horizontal, stable, clean, heat-resistant and dry surface.
• The appliance is not suitable for installation in an area where a water jet could be used.
• Leave a space of at least 20 cm around the appliance for ventilation during use.
•
  Keep all ventilation openings on the appliance free from obstruction.

Special safety instructions

• This appliance is intended for commercial use.
•
  Take great care when handling the cutting disks. Wear protective gloves (not supplied) if necessary.
•
  DANGER OF INJURY! Care should be taken when handling the sharp cutting blades during cleaning.
•
  BLADES ARE SHARP. KEEP HANDS AWAY!
• Do not operate the appliance without load to prevent overheating.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• NOT SUITABLE FOR CONTINUOUS USE! Do not continuously operate the appliance to avoid overheating the motor. The continuous operation time should not exceed over 10 minutes. Operate the appliance again, after it has been cooled.
•
  ALWAYS switch the machine off and disconnect the power supply before touching any motoring parts.

Intended use

• This appliance is intended to be used for commercial applica-tions, for example in kitchens of restaurants, canteens, hospital and in commercial enterprises such as bakeries, butcheries, etc., but not for continuous mass production of food.
• The appliance is designed only for extracting juices from soft fruits such as oranges. Any other use may lead to damage of the appliance or personal injury.
• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Grounding installation

This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current.
This appliance is fitted with a power cord with grounding plug or electrical connections with grounding wire. The connections must be properly installed and grounded.
