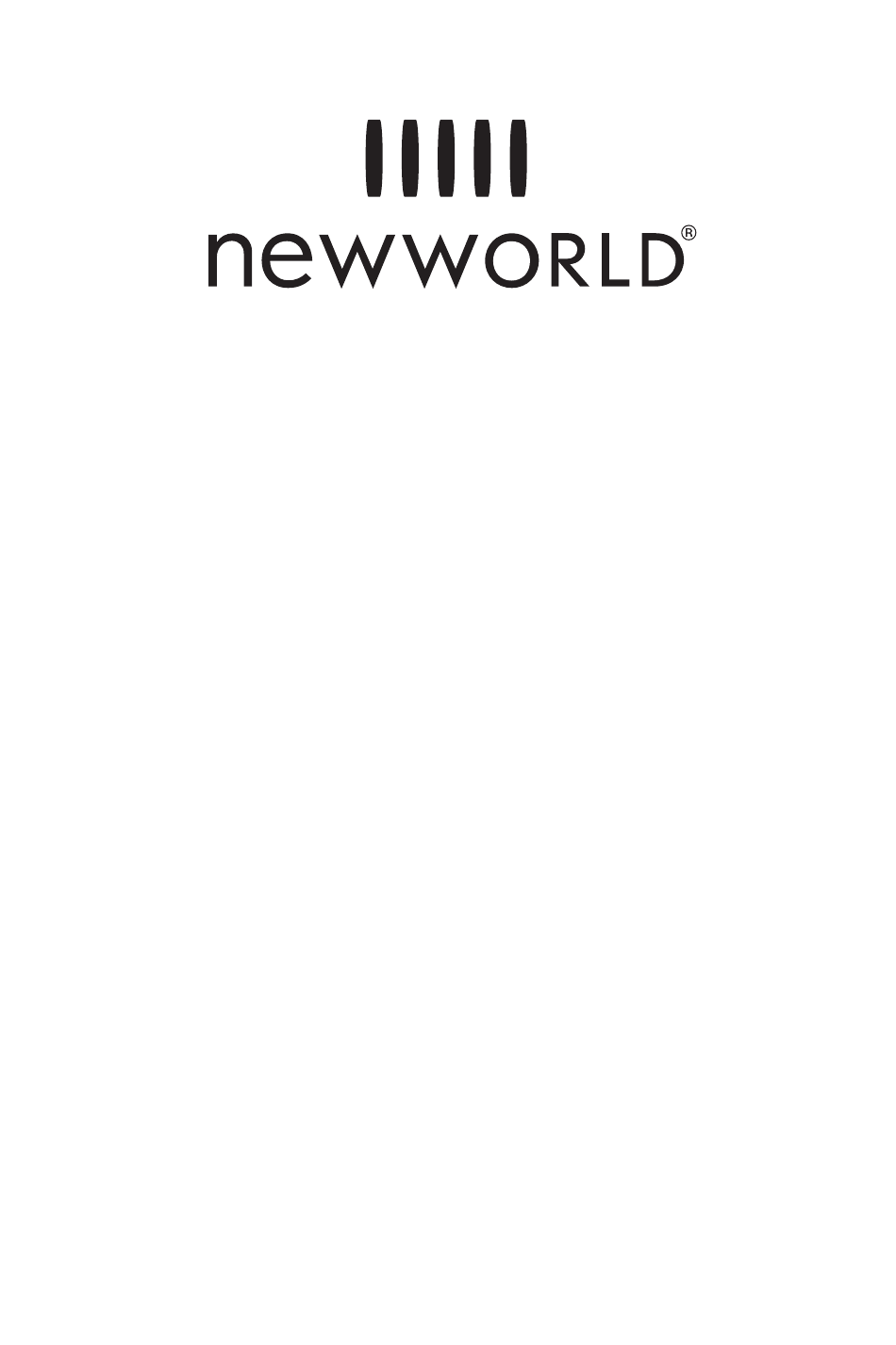

- Page 1 Integrated Fridge Freezer IFF50...
-
Page 2: Table Of Contents
Contents Introduction & safety warnings................2 Electrical requirements ..................3 Transportation instructions.................4 Installation instructions - guidelines ..............5 Getting to know your fridge / freezer..............6 Suggested arrangement of food in the fridge / freezer ........7 Temperature control and adjustment ..............8 Getting Started....................9 Storing frozen food.....................9 Freezing fresh food ..................10 Making ice cubes .....................10 Defrosting ......................11... -
Page 3: Introduction & Safety Warnings
Congratulations on your choice of a New World quality Appliance which has been designed to give you service for many years. WARNING ! IMPORTANT ! DO NOT connect your appliance to the electricity supply until all packing and transit protectors have been removed. •... -
Page 4: Electrical Requirements
ELECTRICAL REQUIREMENTS Before you insert the plug into the wall socket make sure that the voltage and the frequency shown in the rating plate inside the appliance corresponds to your electricity supply. Rating label is on the left hand side of freezer inner liner. We recommend that this appliance is connected to the mains supply via a suitable switched and fused socket in a readily accessible position. -
Page 5: Transportation Instructions
TRANSPORTATION INSTRUCTIONS 1. The appliance should be transported only in a vertical upright position. The packing as supplied must be intact during transportation. 2. If during the course of transport the appliance has to be transported horizontally, it must only be laid on its left hand side when standing in the front of the appliance. -
Page 6: Installation Instructions - Guidelines
INSTALLATION INSTRUCTIONS 1. The space in the room where the appliance is installed must not be smaller than 10 cubic metres. 2. See for detailed Installation Instructions including reversing door opening direction. 3. Do not put your fridge freezer in a cold room where the temperature is likely to go below +5 degrees C (41 degrees F) during night time and/or especially in winter. -
Page 7: Getting To Know Your Fridge / Freezer
GETTING TO KNOW YOUR COMBI FRIDGE / FREEZER DAIRY COMPARTMENT EGG TRAY THERMOSTAT KNOB INTERIOR LIGHT DOOR SHELF CABINET SHELVES BOTTLE SHELF DEFROST WATER COLLECTION CHANNEL SALAD CRISPER FAST FREEZE COMPARTMENT FROZEN FOOD COMPARTMENTS... -
Page 8: Suggested Arrangement Of Food In The Fridge/Freezer
SUGGESTED ARRANGEMENT OF FOOD IN THE FRIDGE/FREEZER Arrangement Examples (See diagram) 1. Baked, chilled cooked food, dairy products, cans. 2. Meat, sausages, cold cuts. 3. Fruit, vegetables, salads. 4. Frozen food and freezing of fresh food. 5. Frozen food. 6. Butter, cheese. 7. -
Page 9: Temperature Control And Adjustment
TEMPERATURE CONTROL AND ADJUSTMENT Operating temperatures are controlled by the thermostat knob (see diagram) located on the ceiling of fridge compartment. Settings may be made from 1 to 5, 5 being the coldest position. When the appliance is switched on for the first time, the thermostat should be adjusted so that after 24 hours, the average fridge temperature is no higher than +5°C (+41°F). -
Page 10: Getting Started
GETTING STARTED Before you start using the fridge/freezer check that: 1. The interior is dry and air can circulate freely at the rear of the cabinet. 2. Clean the interior as recommended under "CLEANING AND CARE." 3. Insert the plug into the wall socket and switch on the electricity supply. •... -
Page 11: Freezing Fresh Food
FREEZING FRESH FOOD Please observe the following instructions to obtain the best results. Do not freeze too large a quantity at any one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible. Do not exceed the freezing capacity of your appliance in 24 h which is 4 kg (9 lb) Placing warm food into the freezer compartment causes the refrigeration compressor to operate continuously until the food is frozen solid. -
Page 12: Defrosting
DEFROSTING A) FRIDGE COMPARTMENT The fridge compartment defrosts automatically. The defrosting water runs to the drain tube via a collection container at the back of the appliance (1). (see diagram) During defrosting water droplets may form at the back of the fridge compartment where concealed evaporator is located. - Page 13 Do not use pointed or sharp edged objects such as knives, forks to remove the frost. Never use hairdryers, electrical heaters and other similar electrical appliances for defrosting. When defrosting has finishe, dry the interior (Fig1-2 thoroughly. Close the freezer door. Insert the plug into the wall socket and switch on the electricity supply.
-
Page 14: Cleaning And Care
CLEANING AND CARE ** We recommend that you switch off the appliance at the socket outlet and pull out the mains plug before cleaning. ** Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning. ** Use luke warm water to clean the cabinet of the appliance and wipe it dry. -
Page 15: Replacing The Interior Light Bulb
REPLACING THE INTERIOR LIGHT BULB (See diagram) Should the light fail to work, proceed as follows. 1. Switch off at the socket outlet and pull out the mains plug. • You may find it useful to remove shelves for easy access. 2. -
Page 16: Do's And Don'ts
DO'S AND DON'TS Clean and defrost your appliance regularly (See "Defrosting") Keep raw meat and poultry below cooked food and dairy products. Take off any unusable leaves on vegetables and wipe off any soil. Leave lettuce, cabbage, parsley and cauliflower on the stem. Wrap cheese firstly in greaseproof paper and then in a polythene bag excluding as much air as possible. -
Page 17: Energy Saving Tips
ENERGY SAVING TIPS 1- Ensure your appliance is installed in a well ventilated area. If the ambient temperature is low (but in no case lower than 5 degrees C), then the energy saving will be more. In this case, check temperatures of fridge and freezer compartments with an accurate thermometer and lower the thermostat setting (towards 1) if necessary. -
Page 18: Reversing The Doors
REVERSING THE DOORS Top Door 1.Unscrew top hinge (4). 2.Carefully remove the top door. 3.Unscrew lower hinge (6) 4.Remove plastic plugs (10 &11). 5.Refit top hinge (4) as lower hinge (14) on the left hand side. 6.Replace top door 7.Refit lower hinge (6) as top hinge (16) on the left hand side. Lower door 1.Unscrew top hinge (7) 2.Carefully remove the lower door. - Page 19 REVERSING THE DOORS Reverse the doors following numbered instructions.
- Page 20 min. 200 cm 6 0 m 6 0 m 86.5 min. 35 mm 3 5 0 min. 200 cm A L L C K W ( B A...
- Page 21 min.35 mm 200 cm 2 200 cm 2...
- Page 23 18 mm 1 mm...
- Page 24 2 mm 2 mm 2 mm Ensure 2 mm gaps are obtained, adjust if necessary.
-
Page 25: Guarantee Details
GUARANTEE DETAILS Your new New World product is guaranteed against the cost of breakdown repairs for twelve months from the date of the original purchase. What is covered? • Repairs necessary as a result of faulty materials, defective components or manufacturing defect. -
Page 26: How To Obtain Service
problem solving section This product bears the selective sorting symbol for waste electrical and electronic Recycling equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities. -
Page 27: Tecnical Data
Technical data IFF50 PERFORMANCE Fridge Freezer Energy efficiency class Energy consumption - Kwh/year Net storage - vol fresh food ltrs (cu.ft.) 155 lt. (5.4) Net storage - vol frozen food ltrs (cu.ft.) 69 lt. (2.4) Total net vol - ltrs (cu.ft.) 224 lt. -
Page 28: Wiring Diagram
WIRING DIAGRAM... - Page 29 0844 815 3747...
- Page 30 WARNING ! * DO NOT USE ANY COPPER POT, DISH INSIDE THE CABINET! * DO NOT LOAD ANY FOOD WITHOUT PACKAGE! WARNUNG ! * BENUTZEN SIE KEINERLEI KUPFERGESCHIRR IM GERÄT! * GEBEN SIE KEINE UNVERPACKTEN LEBENSMITTEL IN DAS GERÄT! AVERTISSEMENT ! * N'UTILISEZ PAS DE RECIPIENTS OU DE PLATS EN CUIVRE A L'INTERIEUR DES COMPARTIMENTS ! * N'INTRODUISEZ PAS DE DENREES NON EMBALLEES...
