Instructions:

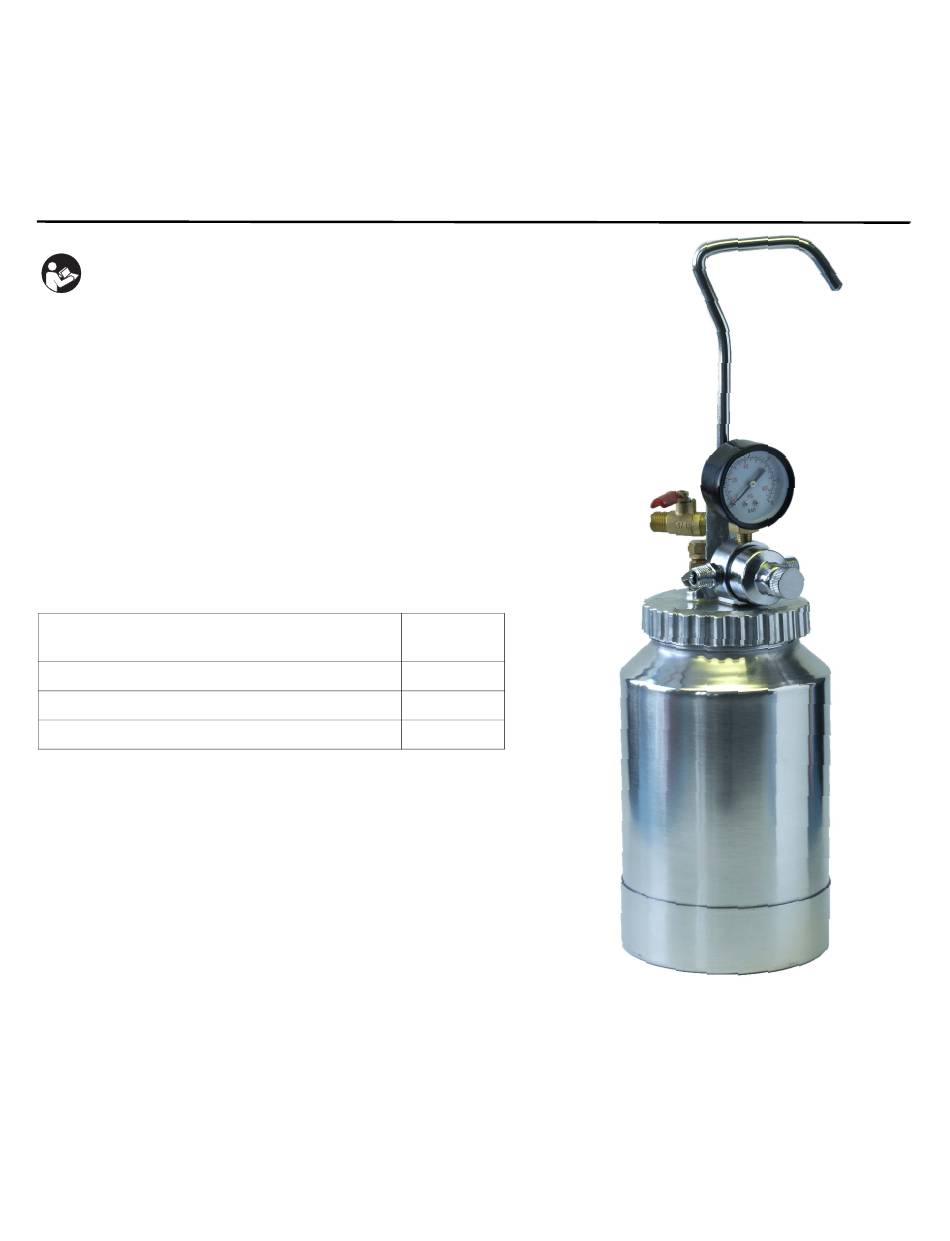

MODEL PT-64
2-QUART PRESSURE CUP
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
DESCRIPTION
The Model PT-64 2-quart pressure cup is designed to be used
with any pressure feed manual spray gun where more than one
quart of material is to be used. Pressure cups will provide a
better degree of control over atomizing air and fluid pressure
than siphon feed equipment. The Model PT-64 will enable you to
spray a wider range of refinish materials and has a full 2-quart
capacity when needed.
SPECIFICATIONS
Max. regulated cup pressure
(fluid pressure)
Max. air inlet pressure
Relief valve release
Weight (empty)
Hose connections:
Air 1/4 in. NPS (M)
Fluid 1/4 in. NPS (M)
Regulator Assembly: Controls pressure of material in cup 0-30
psi.
Pressure Release Valve: Manual operation, allows air pressure to
bleed from cup.
30 psi
160 psi
40 psi
3 lbs 3 oz
Instructions: Model PT-64 11-11-2016
FOR PRODUCT INF
MODEL PT-64
2-QUART PRESSURE
CUP
Advertisement
Related Manuals for Paasche Airbrush PT-64
Summary of Contents for Paasche Airbrush PT-64
- Page 1 Read all warnings and instructions in this manual. Save these instructions. DESCRIPTION The Model PT-64 2-quart pressure cup is designed to be used with any pressure feed manual spray gun where more than one quart of material is to be used. Pressure cups will provide a better degree of control over atomizing air and fluid pressure than siphon feed equipment.
- Page 2 2-QUART PRESSURE CUP • Air pressure in the cup never to exceed 30 PSI. • Never tamper with the relief valve. The relief valve limits the maximum air pressure entering the cup. If the relief valve does not work properly, over-pressurization may occur and cause the cup to rupture or explode. •...
- Page 3 4. Depressurize cup (OPERATION step 1) and empty remaining solvent from cup and wipe clean with a solvent soaked cloth. NOTICE Never clean your Model PT-64 in a gun washer. The safety valve, regulator body and gauge will be dam- aged by use in a gun washer. The canister only can be cleaned in a gun washer.
- Page 4 Insufficient pressure in cup. Gauge registering incorrectly. Replace. Leak at cup lid threads. Tighten cup or replace gasket. Pressure release valve partially open. Tighten. Paasche Airbrush Company 9511 58th Place Kenosha, WI 53144 Phone: 773-867-9191 • Fax: 773-867-9198 Website: www.paascheairbrush.com E-Mail: info@paascheairbrush.com...
