Summary of Contents for Flexitron Webdyn EasyRouter

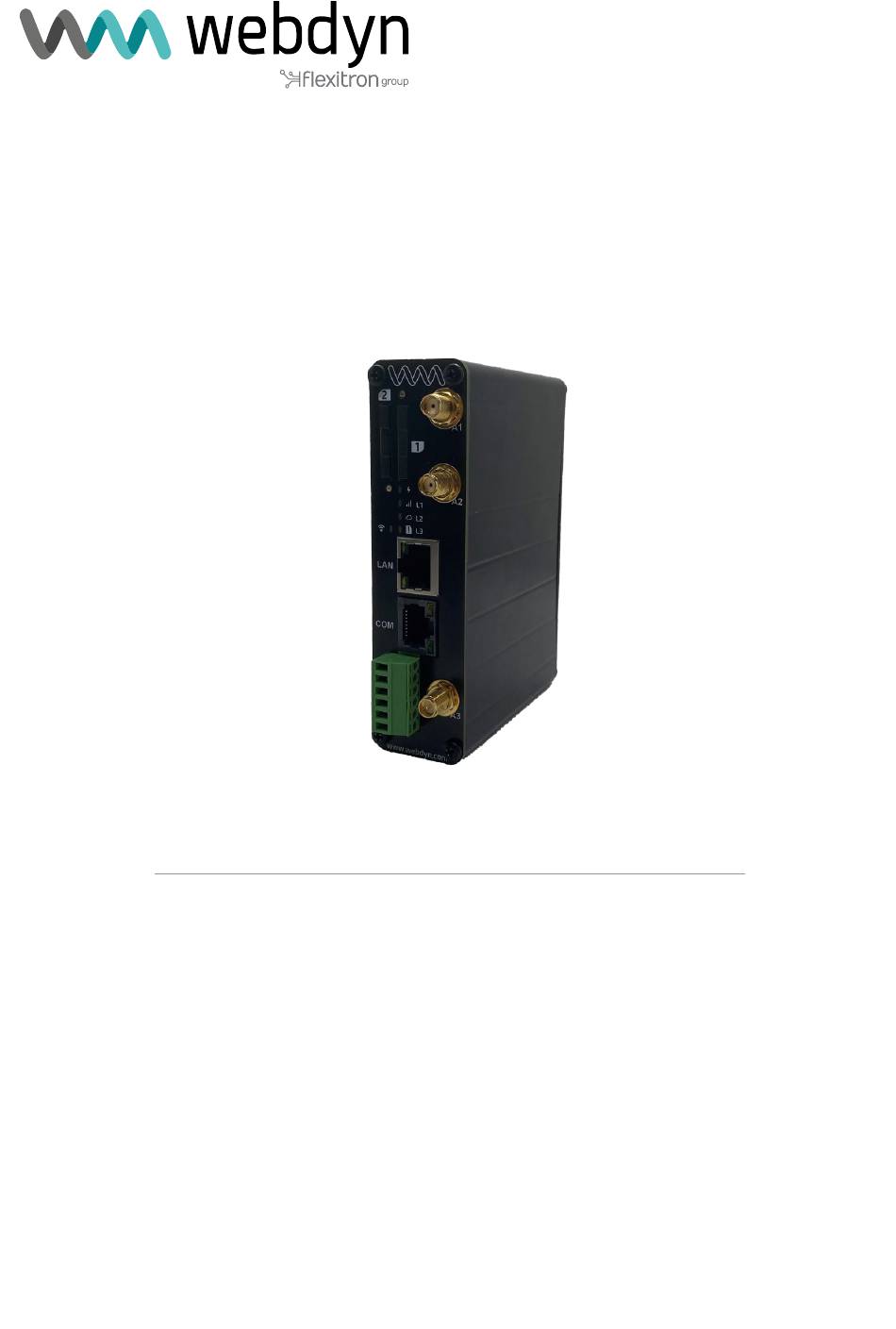

- Page 1 Webdyn EasyRouter Hardware manual www.webdyn.com...
-
Page 2: Table Of Contents
RF Signal Strength..........................37 DIN Rail mounting ..........................38 Connections of EasyRouter ........................38 EasyRouter Family of Products ................... 39 Support ..........................40 Sales and Support ......................41 contact@webdyn.com | webdyn.com V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 3: General Notes
Spanish law without reference to any other substantive law. Important Information This technical description contains important information for the start-up and use of the Webdyn EasyRouter gateway. Read it carefully before you start working with the EasyRouter device. The warranty will be void should damage occur due to non-compliance with these instructions for use. -
Page 4: Revision Information
Parliament and of the Council of 27 January 2003 (and revised on 8 June 2011) on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS). contact@webdyn.com | webdyn.com V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 5: Ce Mark
If you attempt to dismantle the device, you may invalidate the warranty. The EasyRouter terminal must not be neither installed nor located in areas where the surface temperature of the metallic case could exceed 85°C. contact@webdyn.com | webdyn.com V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 6: Safety Requirements And Protection Regulations
In applications where this rule cannot be applied, the application designer is responsible for providing the SAR measurement test report and declaration. You are responsible for observing your country’s safety standards, and where applicable, the relevant wiring rules. contact@webdyn.com | webdyn.com V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 7: Sim Card Precautions
EasyRouter gateway are responsible for ensuring that they meet the SAR regulatory requirements of the countries in which they intend to operate the device and that their documentation contains the relevant SAR declaration, certification information and user guidance as appropriate. contact@webdyn.com | webdyn.com V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 8: Sar Information
S = 0.6 mW/cm² or 1 mW/cm² P = 1995.26 mW or 1000 mW R = 20 cm or 50cm π = 3.1416 G(dBi)=10*log(G) Solving for G; the maximum antenna gain is: contact@webdyn.com | webdyn.com V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 9: Personal Medical Devices
In this context, the term “fixed location” means that the device is physically secured at one location and cannot be easily moved to another location. contact@webdyn.com | webdyn.com V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 10: Technical Description
4G technology, in addition, it includes a RTC in cases where real time is needed. A full list of antennas, cables and accessory supplies are available. contact@webdyn.com | webdyn.com | 10 V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 11: Operating Range
LTE module Detailed parameters LTE Main antenna chapter 2.6 GNSS antenna 50 ohms WiFi antenna 50 ohms Real Time Clock backup : Internal Supercapacitor 50 ohms contact@webdyn.com | webdyn.com | 11 V02.08 sous réserve de modifications | Webdyn © par Flexitron... - Page 12 802.11g 54 Mbps 15 dBm 802.11n, HT20 MCS0 16.5 dBm 802.11n, HT20 MCS7 15 dBm 802.11n, HT40 MCS0 15 dBm 802.11n, HT40 MCS7 14 dBm contact@webdyn.com | webdyn.com | 12 V02.08 sous réserve de modifications | Webdyn © par Flexitron...
- Page 13 -40ºC to +85ºC Storage temperature -40ºC to +85ºC Dimensions with DIN Rail plate 113.2 x 30.5 x 90.2 mm Weight 195g (*) LTE module extended operation contact@webdyn.com | webdyn.com | 13 V02.08 sous réserve de modifications | Webdyn © par Flexitron...
-
Page 14: Ordering Information
EasyRouter gateway is packaged without any additional accessories and through an open window on the box it allows the product label to be read when closed. contact@webdyn.com | webdyn.com | 14 V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 15: Product Label
Connectors for external interfaces are grouped to be accessible at a common front and rear panel. LTE interface covers EMEA region and is CE certified with following frequency bands and data rates : For 000199811003 Webdyn EasyRouter EU contact@webdyn.com | webdyn.com | 15 V02.08 sous réserve de modifications | Webdyn © par Flexitron... - Page 16 8.96 Mbps 3.1 Mbps B1/B2/B5/B8 DC-HSPA+ 42 Mbps 5.76 Mbps WCDMA 384 kbps 384 kbps B2/B3/B5/B8 EDGE 296 kbps 236.8 kbps GPRS 107 kbps 85.6 kbps contact@webdyn.com | webdyn.com | 16 V02.08 sous réserve de modifications | Webdyn © par Flexitron...
-
Page 17: External Interfaces On Front And Rear Panel
TERMINAL BLOCK – 6-way plug-in 3.5mm pitch terminal block for : Power supply input RS485 interface 1x General Purpose Digital Input 1x General Purpose Digital Output Factory Reset push button (rear panel) contact@webdyn.com | webdyn.com | 17 V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 18: Terminal Block Connection
SIGNAL TYPE FUNCTION Digital output #1 Digital input #0 RS485 positive line RS485 negative line Positive power supply input Negative power supply input contact@webdyn.com | webdyn.com | 18 V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 19: Main Antenna Connection
DC-power consumption, modulation accuracy and harmonic suppression. SSMA Interface Specifications Impedance 50 Ω Type SMA Female ESD Protection 15 KV air / 8 KV contact contact@webdyn.com | webdyn.com | 19 V02.08 sous réserve de modifications | Webdyn © par Flexitron... - Page 20 Hand-over occurs as you move from one cell to another in the GSM network. Your mobile application call is transferred from one cell to the next. Hand-over can briefly interfere with communication and may cause a delay, or at worst, disruption. contact@webdyn.com | webdyn.com | 20 V02.08 sous réserve de modifications | Webdyn © par Flexitron...
-
Page 21: Gnss Antenna Connection
SMA INTERFACE SPECIFICATIONS Impedance 50 Ω Type SMA Female ESD Protection 15 KV air / 8 KV contact Active Power Out 3.3 V contact@webdyn.com | webdyn.com | 21 V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 22: Wifi Antenna Connection
50Ω SMA Female RP coaxial connector, and maximum power of 17dB. These external antennas must be matched properly to achieve the best performance regarding radiated power, DC- power consumption, modulation accuracy and harmonic suppression. contact@webdyn.com | webdyn.com | 22 V02.08 sous réserve de modifications | Webdyn © par Flexitron... - Page 23 Shadowing is a form of environmental attenuation of radio signals caused by hills, buildings, trees or even vehicles. This can be a particular problem inside buildings, especially if the walls are thick and reinforced. contact@webdyn.com | webdyn.com | 23 V02.08 sous réserve de modifications | Webdyn © par Flexitron...
-
Page 24: Sim Card Reader
EasyRouter presents the possibility of mounting two cards, one as a backup. In the front panel is identified SIM card priority with the numbers 1 and 2. To insert SIM card, look at bellow picture for proper orientation. Mini Sim 1 Mini Sim 2 contact@webdyn.com | webdyn.com | 24 V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 25: Ethernet Gigabit Port
LINK (Amber) ACTIVITY (Green) RS485 SPECIFICATIONS LINK (Amber) 10Mb / 100Mb Led OFF 1000Mb Led ON ACTIVITY (Green) Blink Transmitting Data contact@webdyn.com | webdyn.com | 25 V02.08 sous réserve de modifications | Webdyn © par Flexitron... - Page 26 Use the default username and password: admin and admin Through which we can configure WAN, Titan scripts, Sims, RTC, digital input and output, etc. See Titan software manual for more information. contact@webdyn.com | webdyn.com | 26 V02.08 sous réserve de modifications | Webdyn © par Flexitron...
-
Page 27: Rs232 Connection
If RS232 cable required length is longer than 3m, it is recommended to use a shielded cable. No hardware related configuration action is needed to enable RS232 port communication. contact@webdyn.com | webdyn.com | 27 V02.08 sous réserve de modifications | Webdyn © par Flexitron... - Page 28 Reference common signal Not connected RS232 Tx Data received on this input is transmitted to WAN RS232 LEDS Green Blink Transmitting Data Amber Blink Receiving Data contact@webdyn.com | webdyn.com | 28 V02.08 sous réserve de modifications | Webdyn © par Flexitron...
- Page 29 Transmitting data (Green) contact@webdyn.com | webdyn.com | 29 V02.08 sous réserve de modifications | Webdyn © par Flexitron...
- Page 30 Optionally, a cable can be supplied to convert the RJ45 to DB9 Male (usually used in electricity meters). This is the pin-out of the cable: contact@webdyn.com | webdyn.com | 30 V02.08 sous réserve de modifications | Webdyn © par Flexitron...
-
Page 31: Description
RS485 port communication. RS485 Type Description Digital output Digital input RS485 positive line RS485 negative line Positive power supply input Negative power supply input contact@webdyn.com | webdyn.com | 31 V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 32: Status Leds
Following table shows relationship between operation status and LED operation. Fast refers to fast blinking On-Off every 1 second. Slow refers to slow blinking On-Off every 2 seconds. Power LED contact@webdyn.com | webdyn.com | 32 V02.08 sous réserve de modifications | Webdyn © par Flexitron... - Page 33 Starting Router 3 blinks Mini SIM detected and ready Slow/Fast/ON Mini SIM undetected or incorrect PIN Not enough/critical coverage Slow Low coverage Fast Good coverage contact@webdyn.com | webdyn.com | 33 V02.08 sous réserve de modifications | Webdyn © par Flexitron...
- Page 34 IP Assigned SIM Error LED Operating States State Mini SIM OK Mini SIM Error WiFi LED Operating States State WiFi Power on WiFi Power off contact@webdyn.com | webdyn.com | 34 V02.08 sous réserve de modifications | Webdyn © par Flexitron...
-
Page 35: Real Time Clock (Rtc)
Wait for router to restart and ready for operation to check default parameters. Coverage LED start to blink (yellow LED). Release Reset button. Power off the gateway. Power on again. contact@webdyn.com | webdyn.com | 35 V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 36: Mechanical Description
3 Mechanical Description 3.1 Dimensions contact@webdyn.com | webdyn.com | 36 V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 37: Device Installation
Tip! Before installing the router, use an ordinary mobile telephone to check a possible location for it. In determining the location for the router and antenna, you should consider signal strength as well as cable length. contact@webdyn.com | webdyn.com | 37 V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 38: Din Rail Mounting
This protects the power cabling and gateway. Bellow figure shows connection for all available interfaces, nonetheless, only those required for the end application are to be connected. contact@webdyn.com | webdyn.com | 38 V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 39: Easyrouter Family Of Products
Software Linux 5.x / Titan Software 6.x to cover foreseen software dependant functional variants. Firmware z to cover different software variants related to hardware version 2.z. contact@webdyn.com | webdyn.com | 39 V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 40: Support
• Hardware and software version of the product. • Hub logs • Concentrator configuration The user manual and firmware are available at this web adress :https://www.webdyn.com/support/TBD contact@webdyn.com | webdyn.com | 40 V02.08 sous réserve de modifications | Webdyn © par Flexitron... -
Page 41: Sales And Support
Téléphone : +351.218162625 E-mail : comercial@lusomatrix.pt TAÏWAN 5F, No. 4, Sec. 3 Yanping N. Rd. Datong Dist. Taipei City, 103027 Téléphone : +886.965333367 E-mail : contact@webdyn.com contact@webdyn.com | webdyn.com | 41 V02.08 sous réserve de modifications | Webdyn © par Flexitron...
