Delta-Opti EXPERT-POE/OTD-8G2GSFP User Manual

Manufactured in China for:
DELTA-OPTI Monika Matysiak,
60-713 Poznan, 10 Graniczna St., Poland
www.shopdelta.eu
◼
Overview

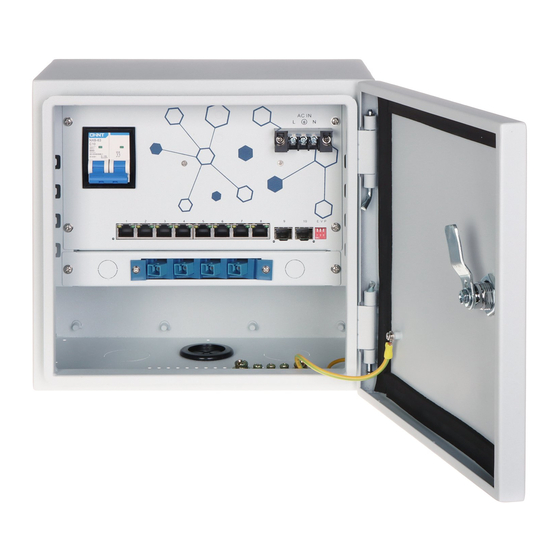

It is outdoor PoE switch. It is integrated of PoE switch, optical fiber tray, air breaker, lightning arrester etc. It has IP55 protection
grade, can be for outdoor using. It can be applied for surveillance monitoring, forest monitoring, etc.
◼
Features & Specification

AC220V mains power input, 120W DC52V power module inside.

With 8x10/100/1000M PoE downlink ports and 2x1000M SFP uplink ports.

The maximum PoE power of single port is 30W, and the maximum PoE power of the whole machine is 115W.

Provides three modes of VLAN to adapt to various complex environments.

Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically
detect the frozen PD equipment and restart the ports' output of PSE, and restart the PD device. It greatly reduces the
maintenance difficulty of engineering.

6KV surge protection, 6KV contact / 8KV air ESD protection.

The box adopts waterproof (protection level IP55), anti-rust treatment, suitable for long time outdoor use.
Parameter
Power supply
Consumption
Downlink ports
Uplink ports
PoE ports
PoE Auto-check
Working mode
1~8 PoE ports
Cable and distance
Standard
Switch fabric
Though put
Buffer
MAC address table
Indicator
Protection
SPD
Working temperature
Storage temperature
Humidity
Dimension(L×W×H)
Material / Color
Net-weight
Outdoor PoE Switch User Manual
Specifications
AC100-240V, 50/60Hz
Self consumption<5W, PoE output max. 115W
Ports 1~8 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)
Ports 9~10 1000Base-X SFP
Ports 1~8 support IEEE802.3af/at, end-span, 30W per port Max.
If detect the frozen PD device, restart it
VLAN mode: ports 1 ~ 8 are isolated from each other and can only communicate with the uplink port; restrain the
network storm; turn off the flow control.
Support IEEE 802.3af/at, end-span, single port≦30W
Use cat5e/6,100m max.
IEEE802.3, IEEE802.3u, IEEE802.3z
20Gbps
14.88Mpps
4M
16K
Power: 1 *red ;
Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE
Uplink9, 10: On RJ45 green LEDs indicate Link/Act
Surge: 6KV, standard: IEC61000-4-5
AC lightning arrester, 385v AC@20KA , 2p, - 40 ～ 70 ℃, lower incoming line, dxh06-fcs / 2r40
-20℃~65℃
-40℃~85℃
0~95%(No condensation)
280mm×200mm×260mm
Metal / White
8KG
EXPERT-POE/OTD-8G2GSFP
ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2
