WTE MReX-SatLink User Manual

Low power satellite iot gateway
Hide thumbs Also See for MReX-SatLink:
Table of Contents

Advertisement

Quick Links

Download this manual

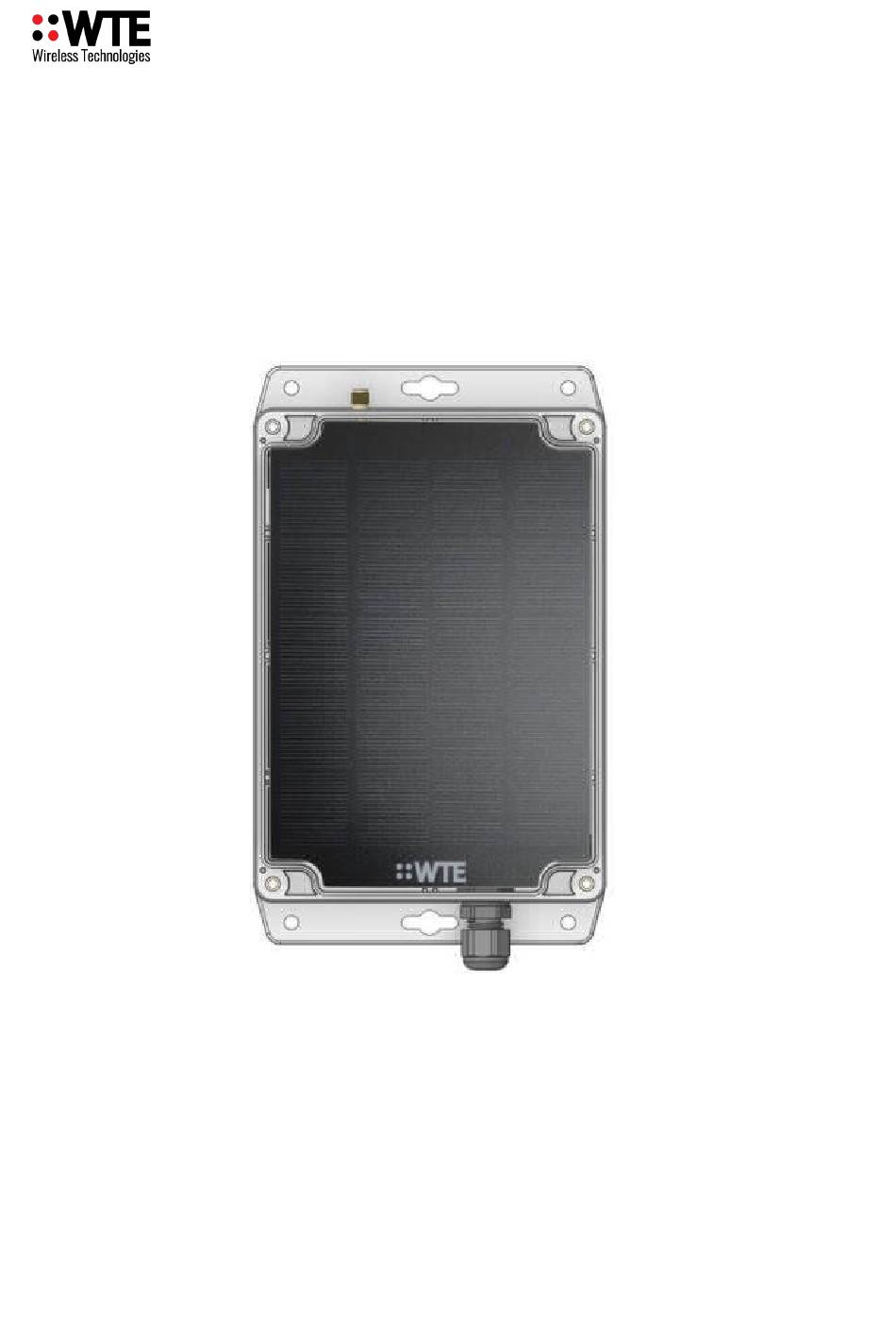

MReX-SatLink User Manual v3.80 Firmware
MReX-SatLink
LOW POWER SATELLITE IOT GATEWAY
User Manual
Page 1 of 89
© WTE Limited, 2023 – Christchurch New Zealand
