Summary of Contents for Thor Fiber F-EDFA-16 Series

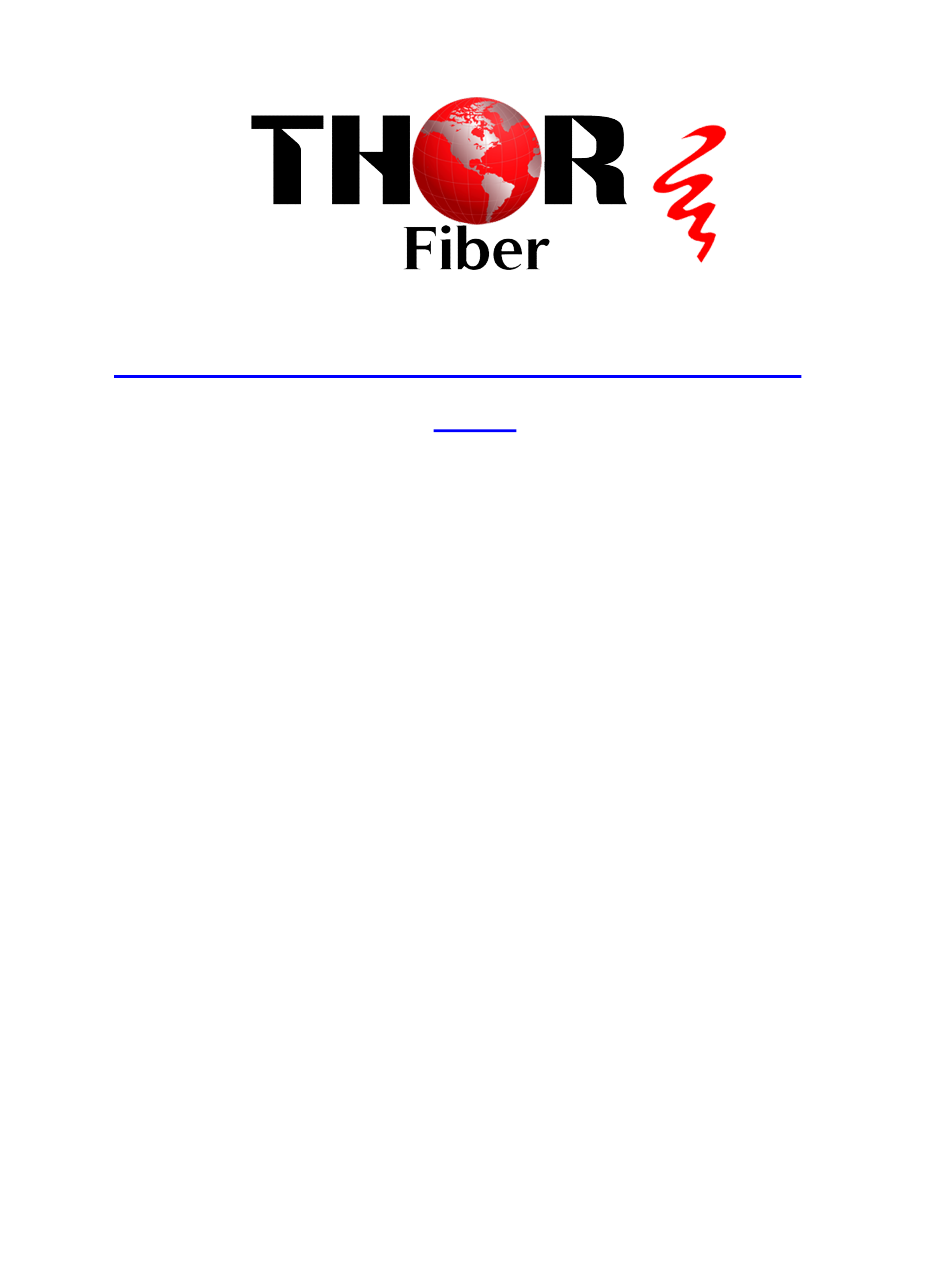

- Page 1 Thor Fiber 1550nm Erbium-Doped Fiber Amplifier EDFA User’s Manual F-EDFA Series - 0 -...
- Page 2 Products Descriptions Product Descriptions The Thor Fiber 1550nm series EDFA, with its core components adopting the world's top brand pump laser and erbium-doped fiber, ensures the best optical performance through optimized optical design and production process. The electronic controlled modes of APC (Automatic Power Control), ACC (Automatic...
-
Page 3: Preparation Before Installation
9. The operating parameters of the whole machine are controlled by a microprocessor, and the LCD status display on the front panel offers functions such as laser status monitoring, parameter display, fault alarm, network management, etc. If the operating parameters of the laser deviate from the allowed range set by the software, the system will promptly alarm. -
Page 4: Dual Inputs
Dual Inputs 3. 2 Main Technical Parameters Index Category Items Remarks Unit Min. Typ. Max. Operating Wavelength 1530 1565 Optical Input Range Output Power 1dBm interval Output Adjustment Adjustable, each step Range 0.1dB Output Power Stability No. of Output Ports Specified by User Noise Figure Pin：0dBm... -
Page 5: Front Panel Instructions
Fully automatic case ℃ Operating Temp temp control Storage Temp ℃ Operating Relative Humidity Dimension 360×483×44 D、W、H Weight 3.3 Front Panel Instructions Single Input Dual Inputs Identification Name Remarks LCD Display To display the parameters of the device LED Green, Device working STATUS Device Status LED Red，Device alarming or faulty... -
Page 6: Rear Panel Instructions
LED Red，Fiber output is out of normal range LED Green，Dual power supply working POWER Power Supply LED Yellow，Single power supply working CATV IN CATV input 1550nm fiber input Single input CATV IN1 CATV input 1 1550nm fiber input 1 Dual Inputs CATV IN2 CATV input 2 1550nm fiber input 2... - Page 7 - 6 - www.thorbroadcast.com sales@thorfiber.com 800-521-8467...
- Page 8 - 7 - www.thorbroadcast.com sales@thorfiber.com 800-521-8467...
- Page 9 IV. Products Series Total Output Power Output Power per No. of Output Port Port 13.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 21.0 17.5 22.0 18.5 23.0 19.5 24.0 20.5 25.0 21.5 18.0 26.0 22.5 19.0 27.0 23.5 20.0 - 8 - www.thorbroadcast.com sales@thorfiber.com 800-521-8467...
- Page 10 V. Notes 5.1 A static-sensitive pump laser is used in the EDFA; please note that electrostatic protection should be employed during the storage of the EDFA, and it should not be stored with corrosive materials. The storage temperature should be between -40°C and +85°C. 5.2 Since the output power of the EDFA is high, do not turn on the power supply before the EDFA is connected to the system or before the output ports are equipped with protective sleeves.
- Page 11 Single power supply Connect another Power Yellow working power supply STATUS Red No input or input too low Adjust the value of LASER IN Red input power LASER OUT Red STATUS Red INPUT Green Turn the key to LASER OUT Red The key turned to OFF Display “KEY...
-
Page 12: Warranty Terms
VII. Warranty Terms THOR FIBER F-EDFA-16 series EDFA is covered by a ONE-YEAR LIMITED WARRANTY, which begins on the initial date of your purchase. We provide lifetime technical support to our customers. If the warranty has expired, repair service will only charge for parts (if required). -
Page 13: Web Server
VIII. Web Server Web Server management interface, users can directly check the basic operating and web parameters by Web. It’s common to see the Microsoft’s IE, Google’s Chrome, Mozilla Foundation’s Firefox, Norway Opera Software ASA Company’s Opera, etc. in the computer. - Page 14 select “Properties” in the pop up “Local Connection Status” and double click “Internet Protocol Version 4 (TCP/IPv4)” set the IP address that makes the IP address the same segment as the device to enable a computer to access a device - 13 - www.thorbroadcast.com sales@thorfiber.com...
- Page 15 8.2 Open the Web, enter the IP address of the device in the browser address bar, such as 192.168.0.22 the browser will pop up a login box Enter in the pop up login user box : “admin” (Note: all lowercase letters), password:“123456”, then press the Enter key - 14 - www.thorbroadcast.com...
- Page 16 8.3 The browser opens the device status by default Real-time parameter 8.4 The left side of page is a navigation menu, click to enter the corresponding menu page Page Navigation Bar - 15 - www.thorbroadcast.com sales@thorfiber.com 800-521-8467...
- Page 17 Device Settings Alarm Status - 16 - www.thorbroadcast.com sales@thorfiber.com 800-521-8467...
- Page 18 Alarm Properties Network Settings - 17 - www.thorbroadcast.com sales@thorfiber.com 800-521-8467...
- Page 19 Change Username and Password Restore Settings - 18 - www.thorbroadcast.com sales@thorfiber.com 800-521-8467...
