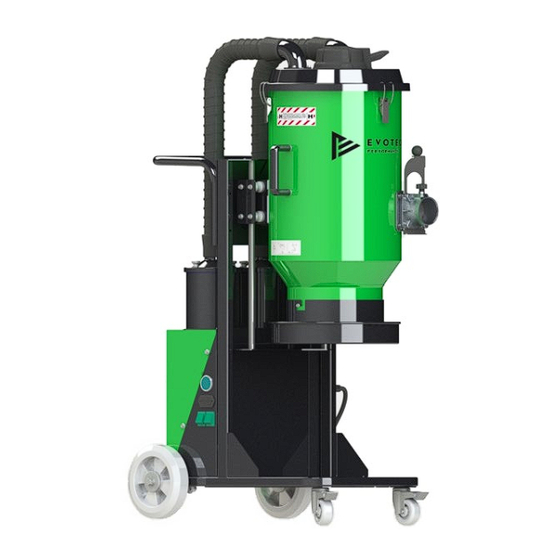

Summary of Contents for Evotech EVO24
- Page 1 USER MANUAL EVO24 Edition 220610AY01...
- Page 2 NOTICE! 1. These instructions are only for EVO24 Dust Extractors. 2. The EVO24 Dust Extractors are designed for cleaning construction site. The EVO24 can be connected to small or medium machines such as drills or grinders. The machine is designed for picking up dry, non-flammable dust and debris in an indoor environment. It is not suitable for picking up liquids.
-
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: WARNING – To reduce the risk of fire, electric shock or injury: Cables damaged through crushing or splitting can be dangerous if used and should be ... - Page 4 and/or filters as described in the manual. If using an extension cord make sure the cord rating is suitable for this machine. Do not modify the machine from its original design. Keep children and unauthorized persons away from the machine when in use. ...
- Page 5 GROUNDING INSTRUCTION The dust extractor must be grounded. If it should malfunction or break-down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The dust extractor is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded with all local codes and ordinances.
-
Page 6: Height Adjustment
This can be done by hitting the dust through the bag or tapping the tank using i.e. a rubber hammer. 4. HEIGHT ADJUSTMENT EVO24 WITH HEIGHT ADJUSTMENT SYSTEM: Lifting operating: Grip the 2 handles on barrel, lift to the top and then loose the grip slowly. -
Page 7: Dust Collection System
How to do filter cleaning? Firstly pull up the metal plate built in the air inlet to block the air inlet, the vacuum will be soon built up. Then press the jet-pulse handle for 5 seconds, and repeat this procedure for 4-5 times. We need to wait 5 seconds between every interval. -
Page 8: Warranty
Do not puncture the HEPA filter. Risk of dust dispersion. 9. WARRANTY All EVOTECH PERFORMANCE machines and accessories have a 12-month factory warranty starting from the day of purchased. Do not attempt to repair the suction apparatus without the... -
Page 9: Problem Solving
consent of the manufacturer. The warranty does not cover defects that are the result of normal wear and tear, negligence, defective use, unauthorized repair or the suction apparatus being connected to the incorrect voltage. In the event of any complaint, the suction apparatus or an agreed part of it must be returned to us or our authorized representative for warranty examination and any warranty repair or replacement. -
Page 10: Technical Data
11. TECHNICAL DATA Data Unit EVO24 Voltage 230V Power (max) Current (UL) Airflow m³/h (max) Vacuum (Max) mbar Water lift (inch) inch Main hose Metric 7.5mx D50 (mm) Inlet Metric (mm) Pre filter 99.5 EN 779-F8 @1μm Metric Pre filter area... - Page 11 EXPLODED VIEW EVO24...
- Page 12 Sealing AM9656 Motor P3001 Lifting handle D3002 Shock absorbing cushion D1001 Air inlet assembly BJ1013 Motor fixed plate BJ1002 EVO24 barrel D1003 Hex bolt D3001 Foamed sealing ring D3003 Sound proof sponge P3002 Belt DE1001 Cable cord BJ1003 Flap kits assembly...
