Summary of Contents for Fuegobird JE-B12

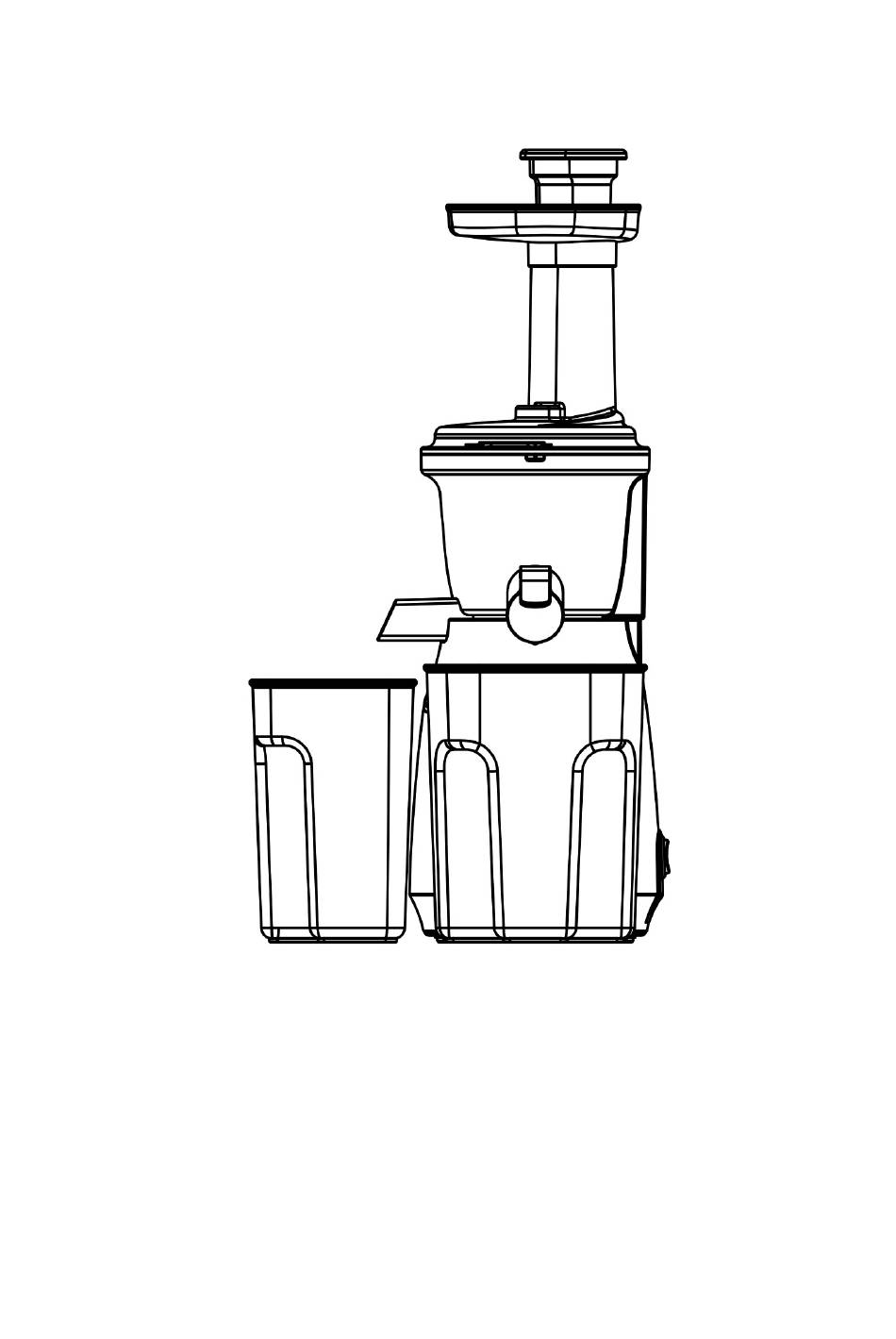

- Page 1 INSTRUCTION MANUAL Model No.：JE-B12 AC220V~ 50Hz 150W...
- Page 2 How to use fruit In order to ensure the service life of the product and improve the juice efficiency, please operate according to the following methods. If you do not operate according to the following methods, the product may be damaged. Please rest for at least 30 minutes before pressing the next time：...
- Page 3 Important Safe Instruction FOR HOUSEHOLD USE ONLY. WARNING: when using electrical appliances especially when children are present, basic safety precautions always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following: 1. Read all instruction carefully before using. To prevent electric shock, do not put the main body into water (because there is a motor), and do not give it to children.
- Page 4 Features Name Name Name Pusher Tray Cover Auger Head Filter Bowl Pulp Ejection Juice Spout Base Switch Pulp Cup Juice Cup...
- Page 5 Assembling Prior to assemble the juicer, please check this point: underneath the bowl, there is a rubber gasket which allows all the juice to only discharge from the juice spout. The rubber gasket is removable, simple grab at one side of the rubber pad and pull out. The left picture shows the rubber gasket is open, the right picture shows the rubber gasket is close.
- Page 6 1. Install the bowl onto the base, followed by the arrow direction. (As shown below) 2. Align the triangle arrow of filter to the arrow on the bowl, and fix the filter into the base. (As shown below)
- Page 7 3. Insert the auger head into the bowl, make sure the auger head’s axes tightly be fixed on the base’s axes. (As shown below) 4. Assemble the cover onto the bowl, followed by the arrow direction. Align the lock slot of cover to the arrow of bowl, then clockwise rotate the cover to fix it on the bowl tightly.
- Page 8 5. Put the pulp cup under the pulp ejection and juice cup under the juice spout. (As shown below)
- Page 9 Operating Instructions Attention: Start up the appliance prior to imputing materials. Do not operate appliance more than 10min at one time. 1. Plug in appliance. 2. Place cups under pulp ejection and juice spout. 3. Know of switch: ON/O/REV, see switch button on product. ON-Starts the motor and juicing process.
-
Page 10: Disassembling & Cleaning
2. The materials are stuck or clogged, press O first, then press R, which can push forward the food that are stuck in the auger head, then press ON, the juicer can be recovered.(repeat operations can be made for several times, but operations can’t be made continuously, time interval: 3 seconds) * It is in R, please use your hand to hold the hopper(in order to prevent the loosing) * It still doesn’t work after the above operations, the hopper may in a loose way. -
Page 11: Troubleshooting
Troubleshooting Problem Possible Cause Solution No power to work Hopper is not installed Re-assemble hopper correctly properly Bowl is not installed Re-assemble bowl correctly properly Juicer is not plugged in Check the juicer to plug in tightly. ... -
Page 12: Technical Data
Technical Data Input voltage: AC220-240V Frequency: 50-60Hz Power: 150W Speed: DC motor 50RPM±10% Max Operation Time: less than 10min Accessories Name Quantity Name Quantity Name Quantity Name Quantity Pulp Cup Pusher Manual Brush Juice Cup...
