Summary of Contents for Kingspan TruckMaster 53

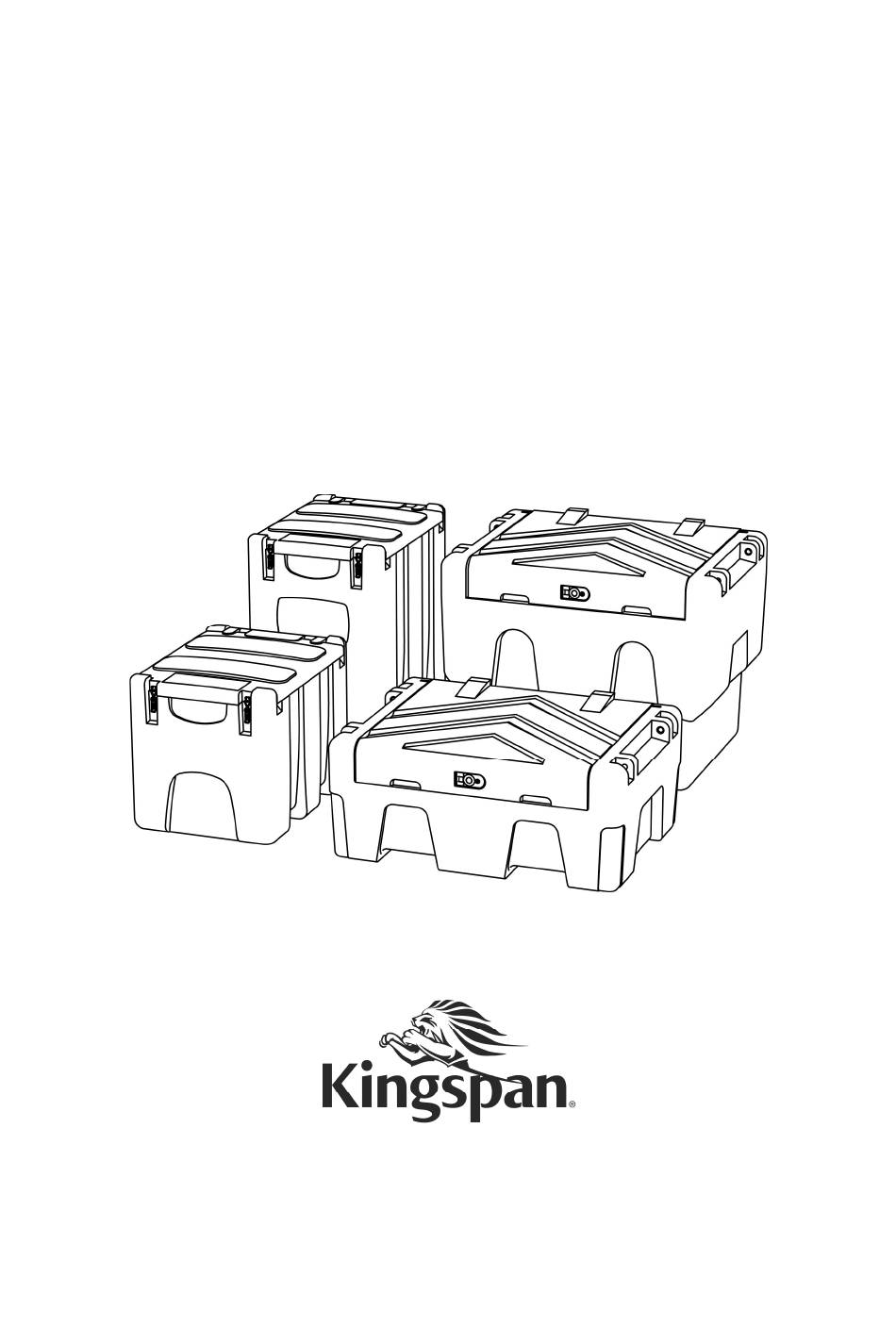

- Page 1 TruckMaster ® Mobile tank for distribution and transport of diesel (US) Operating and safety manual February 2019 Ver. 1.01...
-
Page 3: Table Of Contents
1. TABLE OF CONTENTS Table of contents .................. 1 Safety instructions ................2 Introduction ..................2 TruckMaster® use ................. 3 Technical specifications ................ 3 Handling ....................6 Transport....................7 Filling a tank ..................8 Connecting the pump ................8 10. Vehicle refuelling .................. 8 11. -
Page 4: Safety Instructions
TruckMaster® – Operating and safety manual 2. SAFETY INSTRUCTIONS This manual contains important operating and safety infor- mation and warnings. Read this manual thoroughly and care- fully and follow all the guidelines contained therein. This manual is intended for information purposes only and should not be regarded as a source of law. -
Page 5: Truckmaster® Use
TruckMaster® – Operating and safety manual 4. TRUCKMASTER® USE TruckMaster® is designed for the land transportation and distribution of diesel fuel with a flash point range of above 140˚F (60˚C) and below 200˚F (93˚C). Using the tank for storage, transport or distribution of gasoline and other liquids is prohibited and may result in an explosion. - Page 6 TruckMaster® – Operating and safety manual dimensions (W × D × H) 2’ × 2’7” × 2’ nominal capacity 53 US gal TruckMaster® 53 dimensions (W × D × H) 2’ × 2’7” × 2’11” nominal capacity 79 US gal TruckMaster®...
- Page 7 TruckMaster® – Operating and safety manual TruckMaster® consists of a polyethylene rotationally molded tank and a dis- tribution set that allows refueling of vehicles and other equipment. Tank distribution system consists of the following elements (they may vary depending on the actual specification of the tank): polyethylene tank, lid, vent,...
-
Page 8: Handling
TruckMaster® – Operating and safety manual 6. HANDLING An empty TruckMaster® tank can be lifted using the handles on the sides of the tank. The weight of the lifted device must not ex- ceed the limit values specified in the Occupa- tional Health and Safety regulations for lifted items. -
Page 9: Transport
TruckMaster® – Operating and safety manual 7. TRANSPORT When placed on the vehicle, the tank must be adequately secured to pre- vent displacement while respecting international and local regulations con- cerning traffic, securing and transport of cargo. Tanks have special features to allow securing of the device to the vehicle by belts. -
Page 10: Filling A Tank
TruckMaster® – Operating and safety manual 8. FILLING A TANK The tank should be filled through the inlet using a dispensing nozzle as used in dispensing units of gas stations (see Section 5). It is forbidden to fill the tank directly from a tanker. Moreover, TruckMaster®... -
Page 11: Flowmeter
TruckMaster® – Operating and safety manual When handling tanks that are not equipped with automatic fill- ing nozzles, pay attention to prevent tank overflow as they do not automatically cut off the flow. Do not start pumping when TruckMaster® is empty. Therefore, the pump should be shut off immediately after draining the tank. -
Page 12: Maintenance
TruckMaster® – Operating and safety manual 13. MAINTENANCE Keep the tank and its equipment clean and in good condition. Before each use, check the product for damage. In particular, ensure that the structure of the tank is not compromised, all connections are tight, and the pump power cord is not damaged. -
Page 13: Common Problems And Solutions
TruckMaster® – Operating and safety manual 16. COMMON PROBLEMS AND SOLUTIONS Problems relating to the operation of either pump or flowmeter are de- scribed in separate instruction booklets included with the tank. The follow- ing circumstances may occur when operating the device: Problem Possible cause Remedy... -
Page 14: Disposal
TruckMaster® – Operating and safety manual Problem Possible cause Remedy The flowmeter LCD Batteries are used up. Replace batteries. does not work The flowmeter Incorrect installation of gears Repeat the reassembly proce- does not count, but after cleaning. dure. the flow rate is cor- rect Possible electronic card prob- Contact your dealer. - Page 16 Kingspan Environmental Ltd 180 Gilford Road, Portadown, Co. Armagh, BT63 5LF Tel: +44 (0)28 3836 4400 www.kingspan.com talktous@kingspan.com Kingspan Environmental Sp. z o.o. ul. Topolowa 5 62-090 Rokietnica, Poland www.kingspan.com service.rokietnica@kingspan.com INST/TM/US...
