Nectar Honeybee - 510 Vape Pen Battery Manual

Table of Contents

Contents

1 Introduction
2 Product Contents
3 Diagram
4 Specifications
5 Operating Guide: Charging
6 LED Notifications
7 Vaping Oils (CBD/Thick oils)
8 Vaping Oils (CBD/Thick oils)
9 Notices
10 YouTube Support
11 Nectar Customer Support
12 Documents / Resources
- 12.1 Download manual

Introduction

At Nectar, we develop products which allow customers to utilise the benefits of cannabinoids whilst eliminating the intake of toxins and carcinogens.
We strive for 100% customer satisfaction. If you have any queries about our products or services then please get in touch (scan/click the relevant QR Code below, or see the last page for full contact details):
We look forward to hearing from you.

Product Contents

1x Nectar Honeybee
1x Charging Cable
1x 510 Cartridge
1x QR Code Card

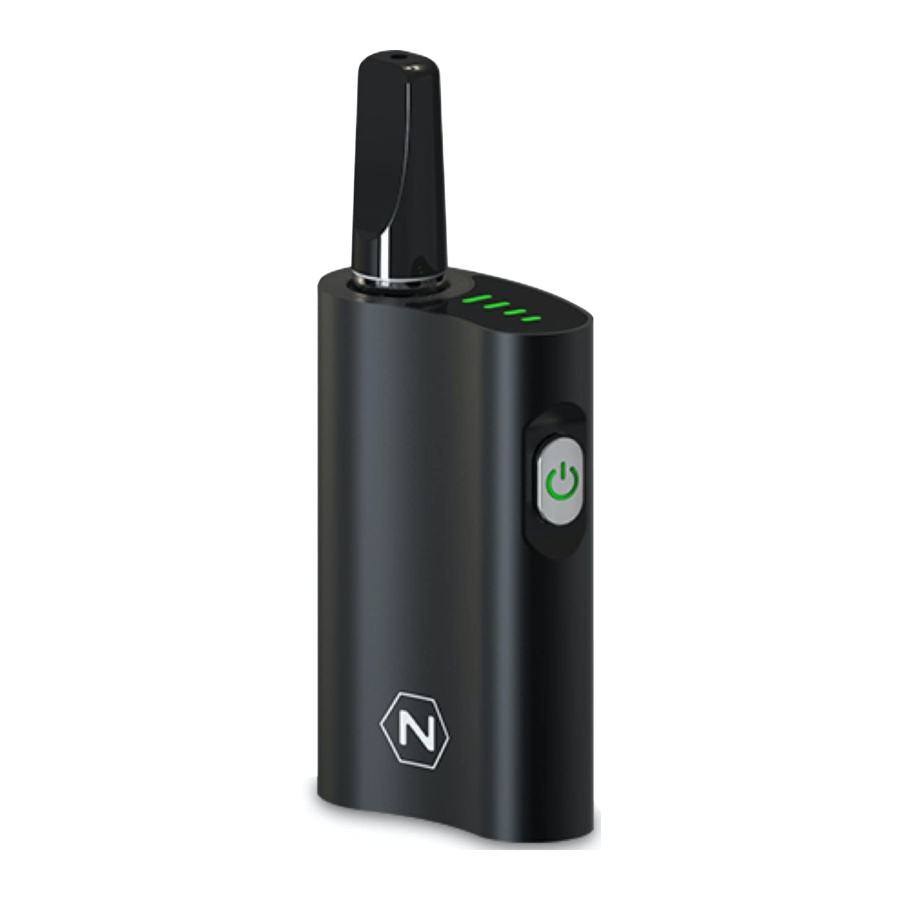

Diagram

Specifications

	Dimensions 6cm x 3.7cm x 1.3cm		Device Weight 100g
	Colour Matte Black		Battery Capacity 800mAh (20A)
	Compatible Ingredients Thick Oils (CBD/THC)		Atomizer Details Ceramic Coil (1.2 Ohms) 2mm Intake Hole
	Tank Capacity 1ml		Materials Aluminium

* Please check your local jurisdictions for legality.

Operating Guide: Charging

It is recommended to charge your device for 1 hour before its first use. After plugging the charger into the HoneyBee, the light will blink and show you an indication of battery level:

One light = 25% power
Two Lights = 50% power
Three lights = 75% power
Four Lights = 100% power (When it is fully charged, all 4 lights will be on).

Note: Avoid overcharging to protect and extend the battery life.
Operating Guide: Charging
After using the device allow it to cool down before storage. Store it in a dry and cool place to protect it against the effects of weather and avoid damage to the battery. Store out of reach of children.

LED Notifications

There are four voltage settings in the HoneyBee. You can change voltage by pressing the power button 3 times rapidly. The lights on the top side of Hitter will indicate which setting you are on.

LEDs	In Use	Charging
1 Light	2.8V	25% power
2 Lights	3.2V	50% power
3 Lights	3.6V	75% power
4 Lights	4.0V	100% power

LED Notifications

Vaping Oils (CBD/Thick oils)

Opening the Cartridge
To open the cartridge, simply hold the glass body with one hand to stop it from rotating and unscrew the mouthpiece (anti-clockwise). Unscrew the mouthpiece and fill the cartridge with your preferred oil.
Filling the Cartridge
Fill the cartridge with your chosen thick oil* by using a tip no more than 2mm in width to ensure the cartridge can be filled without spillage. Pour the liquid between the central post and the glass (avoid filling the central post).
Magnetic Connector
Your device comes with a magnetic connector. Install the cartridge by screwing on the magnetic connection and dropping the cartridge inside the device. Once connected properly, all 4 LEDs will light up for one second

*To use the device with thinner oils such as eliquid, then please use a cartridge with a cotton coil.

Vaping Oils (CBD/Thick oils)

For best results, draw on the device mouthpiece gently using smooth, slow and long tokes.
Always use the device in an upright or mostly-upright position.

Turning On
Press the power button 5 times in rapid succession to turn on/off, the LED light will flash 5 times. If using your device in cold temperatures or with thick oils then see step 6 below for instructions on how to pre-heat your oil.
Using/Changing the Cartridges
Wait 5 minutes to ensure the coil is completely soaked before using. For best results, we recommend replacing the cartridges with new cartridges after 5 uses.
Pre-Heating Function
Turn on the device and press the power button two times rapidly for an automated 30 seconds preheat before vaping. Press the button once to stop. In preheat mode, the green LED lights will flash for 30s. Preheating will make your oil easier to vape.

Notices

Charging
If you are not planning on using the device for a long time, it is recommended that you recharge the battery at least once every 3 months to avoid degrading the battery performance. Note: Do not use the product whilst charging. Doing so may decrease the battery life of the device.

When Flying
When flying or during travel, cartridges should be either emptied or stored in a sealed package and away from other valuable. The low pressure inside aircrafts may cause leakages.

Condensation Treatment
Condensation can be caused by the surrounding environment or by breathing into the device. The condensation can be wiped away and is no cause for alarm.
Simply turn the cartridge upside down and shake it lightly to get rid of this issue.

Law & Age
This device can be used for various herbs and extracts, some of which may be considered restricted or illegal in some countries. Please check your local jurisdictions for legality and minimum age restrictions.
