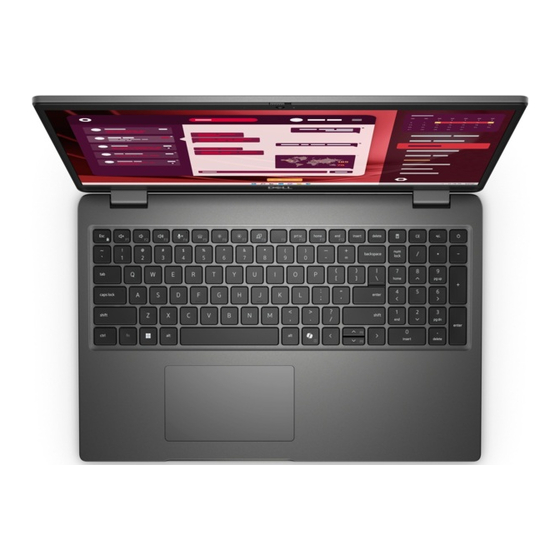

Dell Latitude 3550 Technical Manualbook
Hide thumbs
Also See for Latitude 3550:
- Owner's manual (113 pages) ,
- Service manual (111 pages) ,
- Setup and specifications manual (41 pages)
Related Manuals for Dell Latitude 3550
Summary of Contents for Dell Latitude 3550
- Page 1 Latitude 3550 Technical Guidebook Regulatory Model: P170G Regulatory Type: P170G002/P170G003 March 2024 Rev. A02...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2024 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Left......................................5 Top......................................6 Front....................................... 7 Bottom....................................8 Service Tag................................... 8 Battery charge and status light ............................9 Chapter 2: Specifications of Latitude 3550.................. 10 Dimensions and weight..............................10 Chipset....................................10 Operating system................................10 Memory....................................11 External ports..................................11 Internal slots..................................12 Ethernet.................................... - Page 4 Software security................................ 36 Fingerprint reader................................36 Thermal specifications ..............................37 System management features............................37 Dell Client Command Suite for in-band systems management ............... 37 Out-of-band systems management........................38 Chapter 4: Color, material, and finish ..................39 Chapter 5: Getting help and contacting Dell.................41...
-
Page 5: Chapter 1: Views Of Latitude 3550
Views of Latitude 3550 Right Figure 1. Right view 1. SIM-card slot (optional) Insert a SIM card to connect to a mobile broadband network. 2. USB 3.2 Gen 1 port Connect to external storage devices. Provides data transfer speeds up to 5 Gbps. -
Page 6: Top
USB4 is backward compatible with USB 3.2 and USB 2.0. 6. Universal audio port Connect audio-output devices such as speakers, amplifiers, and so on. Figure 3. Image: Top view 1. Power button with optional fingerprint reader Views of Latitude 3550... -
Page 7: Front
Slide the privacy shutter to the left to access the camera lens. 4. Camera Enables you to video chat, capture photos, and record videos. 5. Camera-status light Turns on when the camera is in use. 6. Right microphone Views of Latitude 3550... -
Page 8: Bottom
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. Service Tag The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in your computer and access warranty information. Views of Latitude 3550... -
Page 9: Battery Charge And Status Light
Figure 6. Image: Service Tag location Battery charge and status light The following table lists the battery charge and status light behavior of your Latitude 3550. Table 1. Battery charge and status light behavior Power Source LED Behavior System Power State... -
Page 10: Chapter 2: Specifications Of Latitude 3550
The weight of your computer depends on the configuration that is ordered and manufacturing variability. Chipset The following table lists the details of the chipset that is supported for your Latitude 3550. Table 3. Chipset Description Option one Option two... -
Page 11: Memory
Memory The following table lists the memory specifications of your Latitude 3550. Table 4. Memory specifications Description Values Memory slots Memory type DDR5, single-channel, dual-channel Memory speed ● For computers shipped with13th Gen Intel Core i3/i5/i7 processors: 5200 MT/s ● For computers shipped with Intel Core Ultra i5/i7... -
Page 12: Internal Slots
Values Model number RTL8111H-CG Transfer rate 10/100/1000 Mbps Wireless module The following table lists the Wireless Local Area Network (WLAN) modules that are supported on your Latitude 3550. Table 8. Wireless module specifications Description Option one Option two Model number... -
Page 13: Wwan Module
The version of the Bluetooth wireless card may vary depending on the operating system that is installed on your computer. WWAN module The following table lists the Wireless Wide Area Network (WWAN) module supported on your Latitude 3550. Table 9. WWAN module specifications Description... -
Page 14: Audio
For instructions on how to find your computer's IMEI (International Mobile Station Equipment Identity) number, search in the Knowledge Base Resource at www.dell.com/support. Audio The following table lists the audio specifications of your Latitude 3550. Table 10. Audio specifications Description... -
Page 15: Keyboard
Keyboard The following table lists the keyboard specifications of your Latitude 3550. Table 12. Keyboard specifications Description Values Keyboard type ● Standard AI hotkey backlit keyboard without fingerprint reader ● Standard AI hotkey backlit keyboard with fingerprint reader ● Standard AI hotkey non-backlit keyboard without fingerprint reader ●... - Page 16 Fn + F12 Operating system and application specific F12 behavior Fn + PrtScr Turn off/on wireless Fn + B Pause Fn + Ctrl + B Break Fn + Insert Sleep Fn + S Toggle scroll lock Specifications of Latitude 3550...
-
Page 17: Camera
The key sequence will call unobtrusive mode. The hotkey sequence will be disabled by default to prevent accidental actuation. You may enable through BIOS setup option. Camera The following table lists the camera specifications of your Latitude 3550. Table 15. Camera specifications Description Values... -
Page 18: Touchpad
For more information about touchpad gestures available on Windows, see the Microsoft Knowledge Base article at support.microsoft.com. Power adapter The following table lists the power adapter specifications of your Latitude 3550. Table 17. Power adapter specifications Description Option one Option two... -
Page 19: Battery
-40°C to 70°C (-40°F -40°C to 70°C (-40°F to 158°F) to 158°F) to 158°F) to 158°F) Battery The following table lists the battery specifications of your Latitude 3550. Table 18. Battery specifications Description Option one Option two Option three Option four... -
Page 20: Display
CAUTION: Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption. -
Page 21: Fingerprint Reader
Table 21. Sensor Sensor support Adaptive Thermal Performance-Applicable only for discrete graphics GPU—Integrated The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 3550. Table 22. GPU—Integrated Controller External display support Memory size... -
Page 22: Multiple Display Support Matrix
Integrated Intel Iris X Graphics Integrated Intel Integrated Graphics Integrated GPU—Discrete The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Latitude 3550. Table 24. GPU—Discrete Controller Memory size Memory type Nvidia GeForce MX570A... -
Page 23: Hardware Security
† Measured using a 2 ms half-sine pulse. Dell support policy For information about Dell support policy, search in the Knowledge Base Resource at www.dell.com/support. Using the privacy shutter 1. Slide the privacy shutter to the left to access the camera lens. -
Page 24: Dell Optimizer
Figure 7. Camera shutter Dell Optimizer This section provides the Dell Optimizer specifications of your Latitude 3550. On Latitude 3550 with Dell Optimizer, the following features are supported: ● ExpressConnect—Automatically joins the access point with the strongest signal, and directs bandwidth to conferencing applications when in use. -
Page 25: Chapter 3: Engineering Specifications
Engineering specifications Ethernet Wireless module Realtek RTL8852BE, 2x2 MIMO, Wi-Fi 6 (WiFi 802.11ax), Bluetooth Wireless Card 5.3 The following table lists the Realtek RTL8852BE, specifications. Table 28. Realtek RTL8852BE specifications Description Specifications Host interface ● Wi-Fi - PCIe ● Bluetooth Wireless Card - USB Network standard IEEE 802.11a/b/g/n/ac/ax, MIMO Wi-Fi Alliance certifications... -
Page 26: Intel Ax211, 2X2 Mimo, 2400 Mbps, 2.4/5/6 Ghz, Wi-Fi 6E (Wifi 802.11Ax), Bluetooth 5.3
Table 28. Realtek RTL8852BE specifications (continued) Description Specifications Wireless PAN standard ● Dual Mode Bluetooth Wireless Card 5.3 ● BLE Bluetooth data rates Up to 3 Mbps Bluetooth operating frequency bands 2.4 GHz Bluetooth profiles supported Support for Microsoft Inbox Bluetooth Wireless Card profiles in Windows Bluetooth data encryption 128-bit encryption... -
Page 27: Wwan Module
Up to 90% RH non-condensing (at temperatures of 25°C to 35°C) WWAN module WWAN module The following table lists the Wireless Wide Area Network (WWAN) module supported on your Latitude 3550. Table 30. WWAN module specifications Description Values Model number... -
Page 28: Gpu-Integrated
● WWAN Diversity Antenna x 1 NOTE: For instructions on how to find your computer's IMEI (International Mobile Station Equipment Identity) number, search in the Knowledge Base Resource at www.dell.com/support. GPU—Integrated Intel UHD Graphics The following table lists the Intel UHD Graphics specifications. -
Page 29: Intel Iris X E Graphics
Table 31. Intel UHD Graphics specifications (continued) Feature Values Memory interface Not applicable Processor graphics i3/i5/i7 Estimated maximum power consumption (TDP) 15 W, included in the CPU power Maximum vertical refresh rate ● HDMI 2.1: 4096 x 2160 @ 60 Hz, 24bpp ●... -
Page 30: Gpu-Discrete
PCIe Gen 4 x 4 Video port and resolution matrix The following table lists the Video port and resolution matrix of your Latitude 3550. Table 35. Video port and resolution matrix Port type DP++ 1.4/HDCP 2.3 port (UMA and Discrete HDMI-OUT port—... -
Page 31: Storage
Storage M.2 2230, 1 TB, TLC PCIe NVMe Gen 4, Class 35 SSD The following table lists the M.2 2230, 1 TB SSD specifications. Table 36. 1 TB SSD specifications Description Values Capacity 1 TB Height (approximate) 3.50 mm (0.13 in.) Width (approximate) 22 mm (0.87 in.) Depth (approximate) -
Page 32: M.2 2230, 256 Gb, Tlc Pcie Nvme Gen 4, Class 35 Ssd
Table 37. 512 GB SSD specifications (continued) Description Values Power consumption (reference only) ● Idle: 5 mW (PS4) ● Active: 4W Environmental operating conditions (non-condensing) Temperature range 0°C to 70°C Relative humidity range 10% to 90% Op shock 1500G Environmental non-operating conditions (non-condensing) Temperature range -40°C to 70°C Relative humidity range... -
Page 33: M.2 2230, 1 Tb, Qlc Pcie Nvme Gen4, Class 25 Ssd
M.2 2230, 1 TB, QLC PCIe NVMe Gen4, Class 25 SSD The following table lists the M.2 2230, 1 TB SSD specifications. Table 39. 1 TB SSD specifications Description Values Capacity 1 TB Height (approximate) 3.50 mm (0.17 in.) Width (approximate) 22 mm (0.87 in.) Depth (approximate) -
Page 34: Power Adapter
Environmental non-operating conditions (non-condensing) Temperature range -40°C to 70°C Relative humidity range 5% to 95% Power adapter The following table lists the power adapter specifications of your Latitude 3550. Table 41. Power adapter specifications Description Values Type 60W AC adapter, small 65W AC adapter, 4.5... -
Page 35: Accessories
GS mark compliant NCTC Anti Power Surge certification NCTC Anti Lightning Strike certification Accessories The following table lists the supported accessories on your Latitude 3550. Table 42. Accessories Accessories Audio: Dell Pro Stereo Headset Adapters: Dell 7-in-1 USB-C Multiport Adapter Carrying case: ●... -
Page 36: Security
Security Software security The following table lists the software security details of your Latitude 3550. Table 43. Software security Security options McAfee Generic Build 30-day Commercial (optional) McAfee Generic Build 30-day Commercial Japan (optional) McAfee Generic Build 12-month Commercial... -
Page 37: Thermal Specifications
Dell Client Command Suite. In-Band management meaning that the Operating System is functional and the device is connected to a network so that it can be managed. The Dell Client Command Suite of tools can be leveraged individually or with a systems management console like SCCM, LANDESK, KACE, etc. -
Page 38: Out-Of-Band Systems Management
Dell Command | Integration Suite for System Center - This suite integrates all the key components of the Client Command Suite into Microsoft System Center Configuration Manager 2012 and Current Branch versions. Out-of-band systems management Intel Standard Manageability option must be configured in our factory at the time of purchase, as it is NOT field upgradable. -
Page 39: Chapter 4: Color, Material, And Finish
Color, material, and finish This section details the color, material, and finish (CMF) specifications of your Latitude 3550. Table 46. CMF specifications Title Description A Cover (Top) ● Plastic ● Molded ● Soft charcoal, resin ● Logo, PET, Soft charcoal, Die Cut B Cover ●... - Page 40 Table 46. CMF specifications (continued) Title Description D Cover ● Plastic ● Molded ● Soft charcoal, Resin ● Resin Bottom - Poly Shift Texture 23um ● Resin Side - Fine Texture 17um Color, material, and finish...
-
Page 41: Chapter 5: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 47. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com Tips Contact Support In Windows search, type Contact Support, and press Enter.
