Operating
Instructions
(154305
P5550
STEREO CASSETTE DECK
®

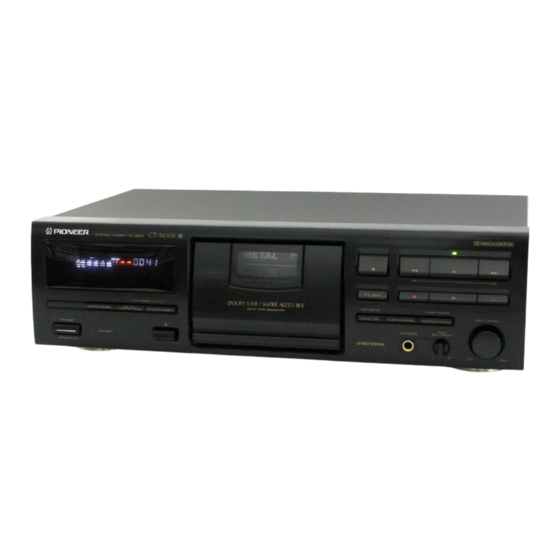

The above illustration shows CT-S430S.
@
For the demo function, refer to back cover of these operating instructions.
Thank you for buying this PIONEER product.
Please read through these operating instructions so you
will know
how to operate your unit properly. After you
have finished reading the instructions, keep the manual ina
safe place for future reference.
In some countries or regions, the shape of the power plug
and power outlet may sometimes differ from that shown in
the explanatory drawings. However, the method
of con-
necting and operating the unit is the same.
WARNING:
To prEvENT FIRE OR SHOCK HAZ-
ARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
"This product complies with the Radio Interference require-
ments of the EC (European Community) Directive 87/308/EEC."
[IMPORTANT 1
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
TO PREVENT THE RISK OF ELECTRIC SHOCK, 00
NOT REMOVE
COVER
(OR BACK)
NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL
The lightning flash with arrowhead, within an equilateral
| teangie, is intended to alert the user to the presence of
| uninsulated "dangerous voltage'' within the product's
| enclosure that may be of sutficient magnitude to constitute
[ a risk of electric shock te persons,
The exclamation point within an equilavera
intended to alert the user to th
operating and ma
the literature
The cut-off plug should be disposed of and must not
be inserted into any
13 amp socket as this ca
asuit
in electric shock. The plug or adaptor or the distribu:
tion panet should be provided with 5 amp fuse. As the
colours of the wires in the mains lead of this ap-
IMPORTANT 2
FOR USE IN THE UNITED
KINGDOM
pliance may not correspond with coloured markings
ow
identifying the terminals in your plug, proceed as fol-
The wires in this mains lead are coloured in
lows:
accordance with the following code:
blue
neutral
brown
live
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black.
1 the plug provided is unsuitable for your socket
The wire which is coloured brown must be connected
outlets, the plug must be cut off and a suitable plug
to the terminal which is marked with the letter L or
fitted.
coioured red.
Do not connect either wire to the earth terminal of a
three pin plug
NOTE
After replacing or changing 0 fuse, the fuse cover in the
plug must be replaced with a fuse cover which
corresponds to the colour of the insert in the base of
the plug or the word that is embdssed on the hase of
the plug, and the appliance must not be used without a
fuse cover. If lost, replacement fuse covers can be
obtained from your dealer.
Only 5 A tuses approved by B.S. or A.S.T.A. to 8.5
1362 should be
@ PIONEER'
The Art of Entertainment
