CommScope SL Series Instruction Sheet

408-8417 Rev. W March 2024
www.commscope.com
SL, Secure SL, E, KJ and M Series Modular Jacks
MODULAR JACK
SL Series
Secure SL Series
E, KJ and M Series
1. INTRODUCTION
This instruction sheet provides the termination procedure for the modular jacks given in Figure 1. To obtain
information on products, contact your local CommScope® account representative, PartnerPRO
Partner or visit our website at www.commscope.com.
NOTE
Dimensions in this instruction sheet are in metric units [with U.S. customary units in brackets]. Figures are
not drawn to scale.
Reasons for reissue of this instruction sheet are provided in Section 7, REVISION SUMMARY.
2. DESCRIPTION
Each modular jack accepts 4-pair, twisted-pair cable with solid conductor sizes 24 through 22 AWG or stranded
conductor sizes 26 through 24 AWG with a maximum conductor insulation diameter of 1.45 mm [.057 in.]. The
modular jack features a universal wiring label used to aid in proper wire color coding and a wiring block that
terminates the wire. See Figure 1. Space Limiting strain reliefs are available separately.
3. TERMINATION
1. Slide strain relief over cable jacket. Refer to Figure 2.
2. Strip only as much of the cable jacket as necessary to perform the termination.
NOTE
Generally, a strip length of 35 mm [1.378 in.] when using SL series modular jack tool kit 1725150-6 for
termination will suffice.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. This product may be covered by one or more
U.S. patents or their foreign equivalents. For patents, see www.cs-pat.com. Visit our website at
representative for more information. For technical assistance, customer service, or to report any missing/damaged parts, visit us at:
http://www.commscope.com/SupportCenter
CABLE STANDARD
Categories 5e, 6
Categories 6
Categories 5e, 6

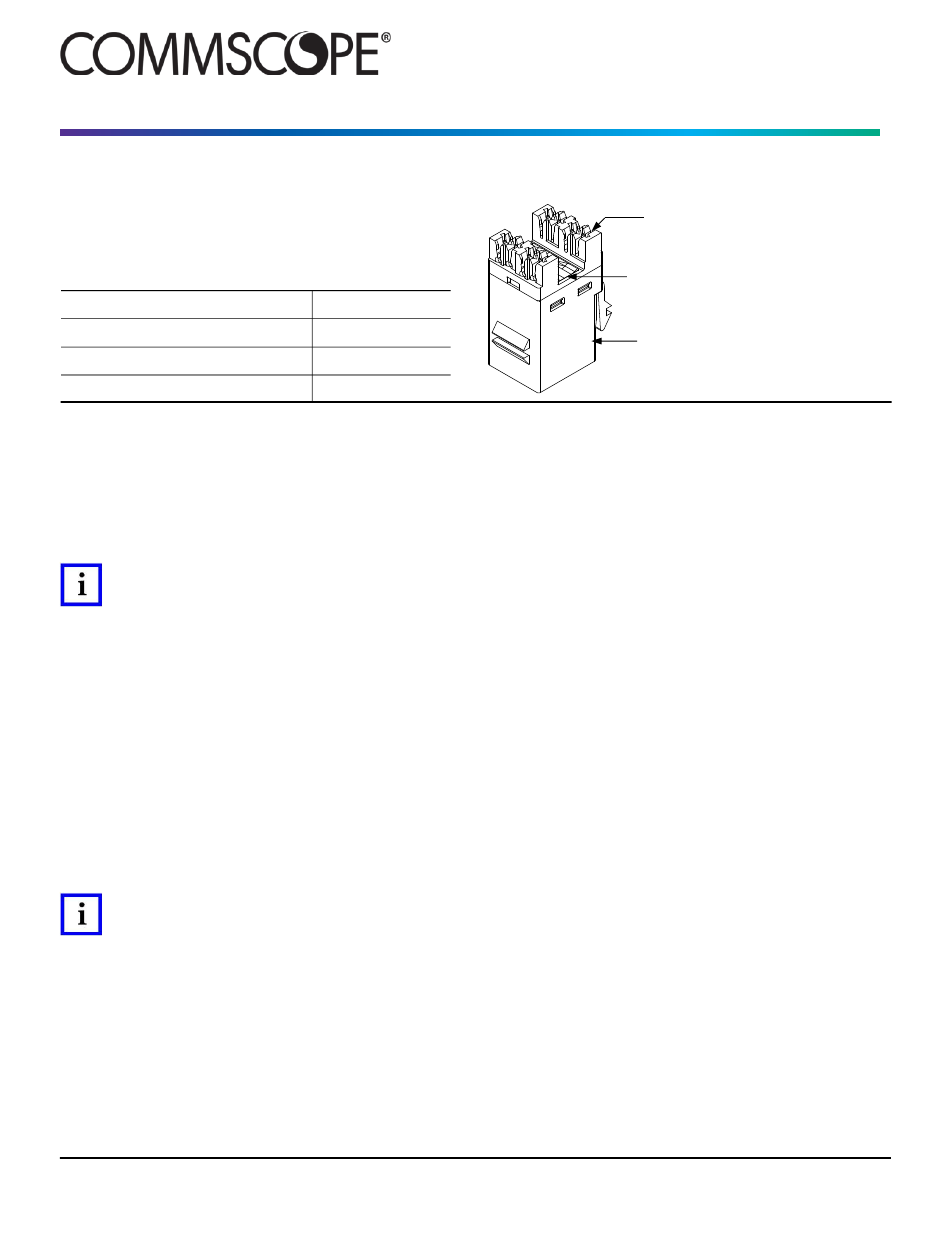

Figure 1
© 2018 CommScope, Inc. All Rights Reserved
Instruction Sheet
Wiring Slots
Universal Wiring Label
Modular Jack
www.commscope.com or contact your local CommScope
TM Network
Page 1 of 4
